• Feeder Machine Speed：10-30m,Min
• Put Roll Diameter：φ 600mm.
• Maximal Height of Loading Mold：350mm
• Worktable Size：650*810 mm
• Shank Role Size：φ 40*60 mm
• Transport Package：Wooden Box
• Specification：1800*1100*2650mm
• Trademark：Fineness
• Origin：Zhangjiagang
• HS Code：844900900
• Production Capacity：1 Set,45days

Basic Info.

Feeder Machine Speed 10-30m/Min Put Roll Diameter φ 600mm. Maximal Height of Loading Mold 350mm Worktable Size 650*810 mm Shank Role Size φ 40*60 mm Transport Package Wooden Box Specification 1800*1100*2650mm Trademark Fineness Origin Zhangjiagang HS Code 844900900 Production Capacity 1 Set/45days

Product Description

Our company official website:www.fineness-en-made-in-china.com

Technical parameter	AF-45AT	AF-45T	AF-63AT	AF-63T
Max Pressure:	450kn	450kn	630kn	630kn
Max Material Width	500mm(OEM)	500mm(OEM)	650mm	650mm
Max Material diameter	600mm	600mm	800mm(OEM)	800mm(OEM)
Speed	40-70pcs/min(1cavity)	40-70pcs/min(1cavity)	40-70pcs/min(1cavity)	40-70 pcs/min(1cavity)
Slide stroke	120-260mm	120-260mm	120-260mm	120-260mm
Mould Loading Height	270-480mm	270-480mm	310-480mm	310-480mm
Mould Adjustable Height	60mm	60mm	70mm	70mm
Press Power	7.5kW	7.5kW	11kW	11kw
Press weight	5500kg	5500kg	6300kg	6300kg
Press Dimension	1800*1100*2650mm	1800*1100*2650mm	2300x1600*3300mm	2300x1600*3300mm
Feeding Machine Size	2200*1400*1500mm	2200*1400*1500mm	2200*1700*1500mm	2200*1700*1500mm
Feeding accuracy	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Feeding Machine Power	1.5kW	1.5kW	1.5kW	1.5kw
Double track collector size	2500*1300*1600mm	/	2500*1300*1600mm	/
Double track collector power	3kW	/	3kW	/
Scrap collecting machine	Yes	/	Yes	/
Voltage	220V/60H	/	220V/60H	/

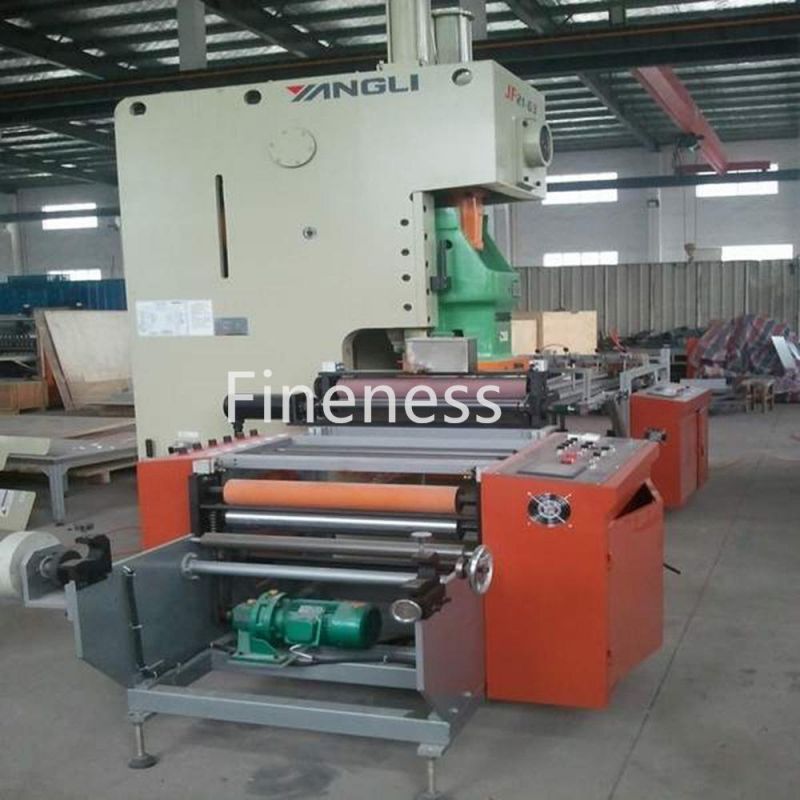

Each machine consists of:

-1 Unit Press / Punching Machine

-1 Unit Aluminum Foil Feeding Machine

-1 Unit Conveyer Belt

-1 Unit Receiving Table

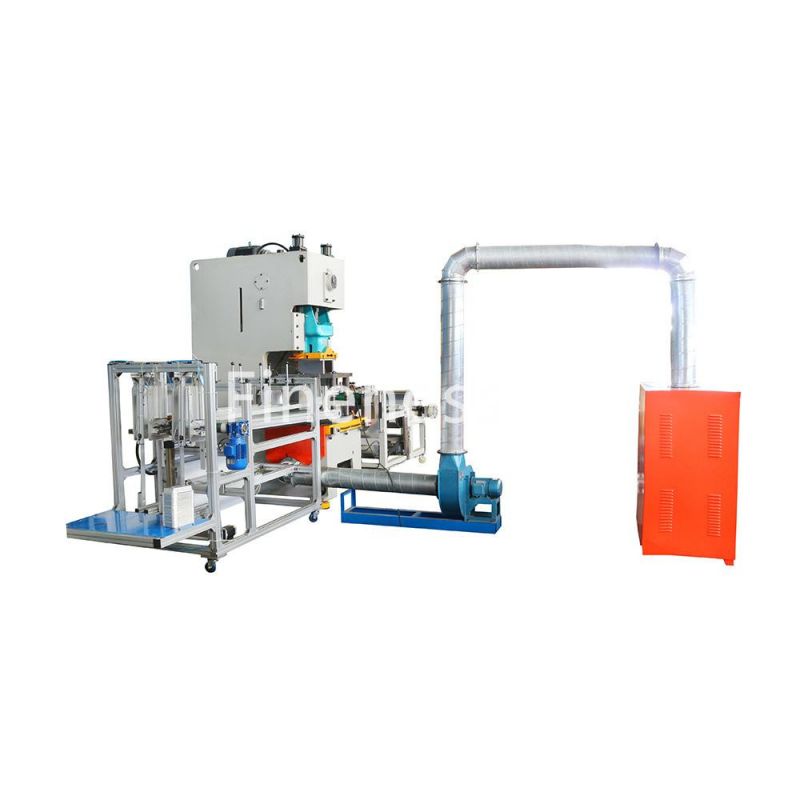

-1 Unit Automatic Scrap Collecting System (AF-45AT,AF-63AT)

-1 Unit Air Compressor System

-1 Unit Aluminum Foil Test Roll

-1 Unit Digital PLC Computerized Panel Control

Rrmark: Mould is not inclusive in, please tell us your mould dimension or send us your container samples.

Usage:
The machine is used to make aluminum foil container, such us aluminum foil tray, plate,container cover, barbecue food tray, aluminum airline container,disposable plate ,turkey dish, foil oven etc.

Features:
1,The machine adopts Siemens-PLC as control system, Safe and reliable. Feeding length and production speed and other parameters can be simply set, Gas/electrical integration, centralized control. Full Automatic production, only need an operator to collect products.
2,If it is fully automatic model,the actions of feeding,lubricating, stamping, scrap collection,container stacking can be done automaticly.
3,Manual setting of the aluminum foils feeding length from 20 to 999mm by you.
4,With automatic lubrication system and aluminium foil material could lubricate automatically.
5,With Auto counting stacker, aluminum foil container could be counted and stacked automatically.
6,The features are feeding accuracy, coating even, saving material, high accuracy, neat appearance, small size, easy to install, operate, maintain, little noise, as a result, it is the ideal equipment for aluminum foil containers.

Service:
We offer the best after-sales service, guarantee for 2 year, free training in our factory.Engineers are available to service machinery overseas.
We have much experience in this line. We have exported to Italy, Greece, Russia, the Middle East, etc.
we have passed ISO9001:2000, Haccp, AAA. Our aluminum foil related products have passed FDA, SGS, TUV. Our machines have passed CE.

With advanced equipments, superior quality administration and top  working team, we can offer our customers high quality products and the finest services.We are looking forward to establishing long-term business relations with clients

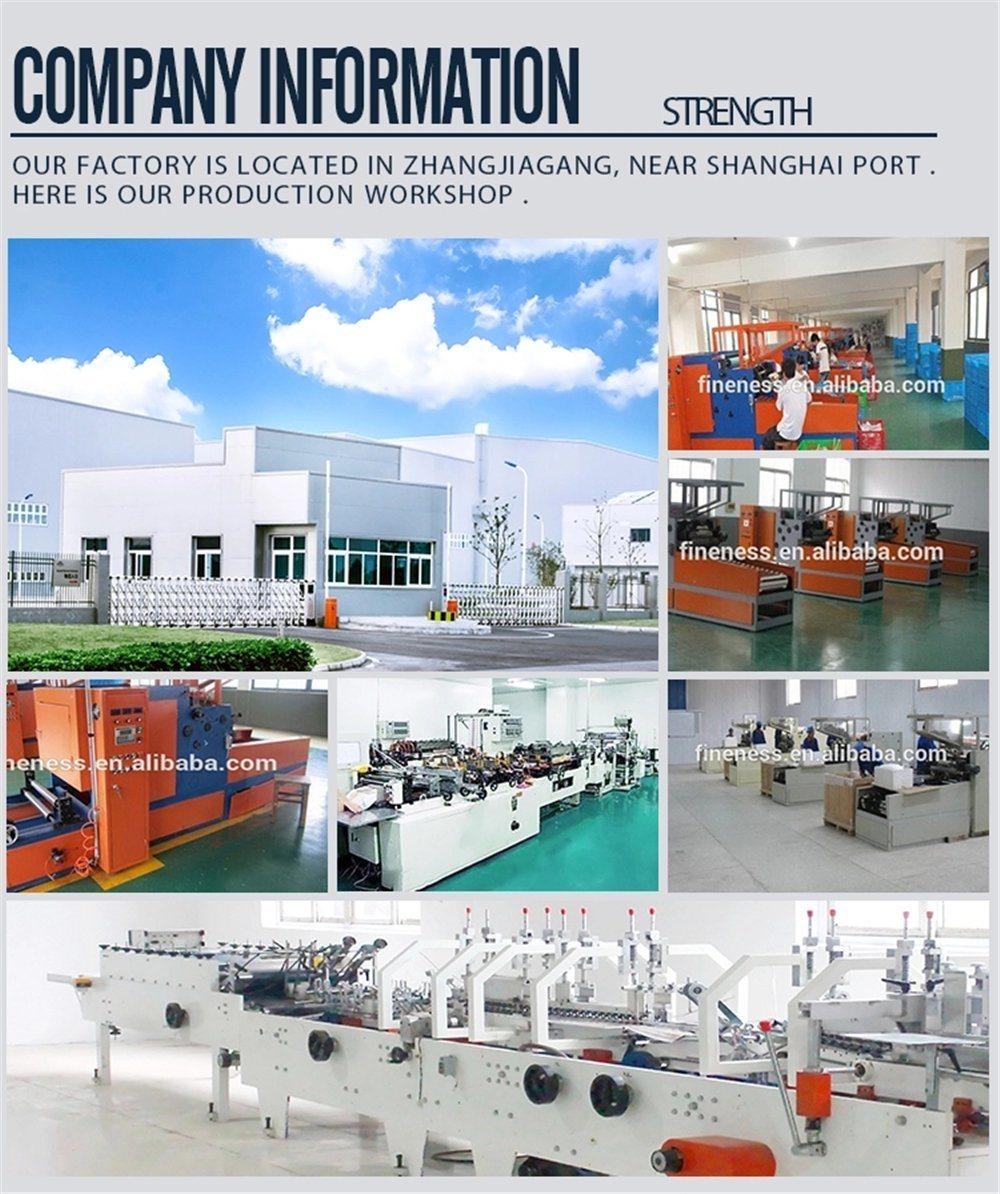

Our Company:
