• Condition：New
• Name：Manual Powder Coating Package
• Application：Any Metal Surface
• Voltage：220V,110V
• Frequency：50-60Hz
• Max Voltage：100kv
• Packaging：Wooden Case,Carton
• Delivery：1-3 Working Days
• Payment：100% in Advance
• Item：Powder Coating Package for Sale
• Transport Package：Carton
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：800sets,Year

Basic Info.

Condition New Name Manual Powder Coating Package Application Any Metal Surface Voltage 220V/110V Frequency 50-60Hz Max Voltage 100kv Packaging Wooden Case/Carton Delivery 1-3 Working Days Payment 100% in Advance Item Powder Coating Package for Sale Transport Package Carton Trademark COLO Origin China HS Code 8424899990 Production Capacity 800sets/Year

Product Description

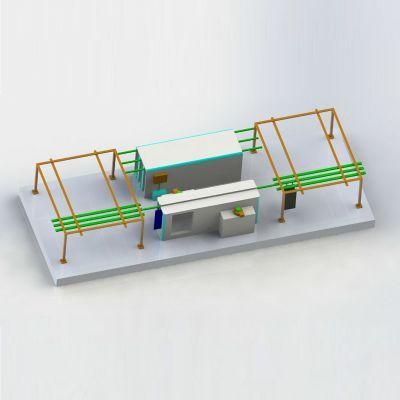

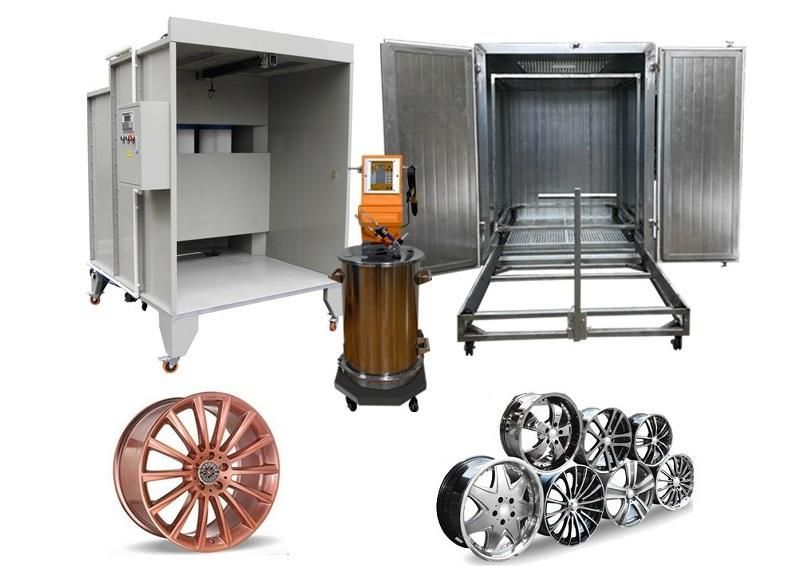

Commercial Powder Coating System for Alloy Wheels

This commercial powder coating system is ideal for alloy wheel powder coating production. Includes professional powder coating gun, powder spray booth, powder curing ovens, provides longlasting and durable finish for various car wheels, motorcycle/truck wheels, and other vehicle accessories, such as: bike frames, motorcyle frames, etc.

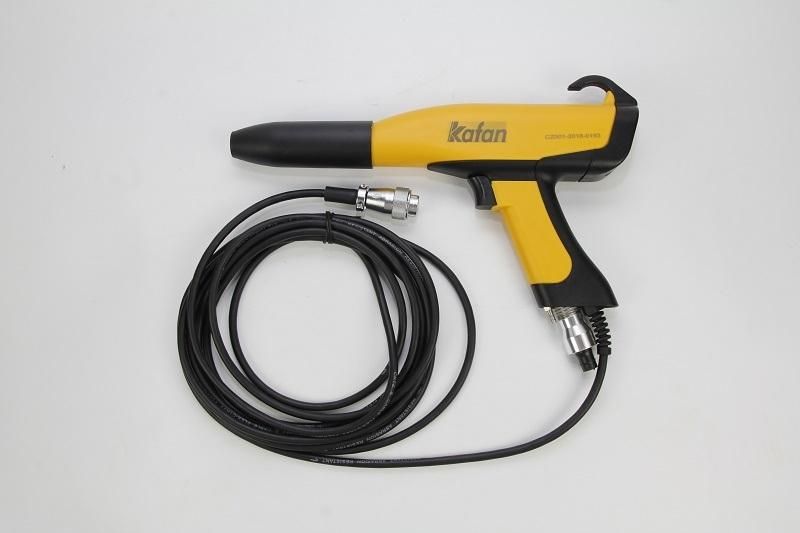

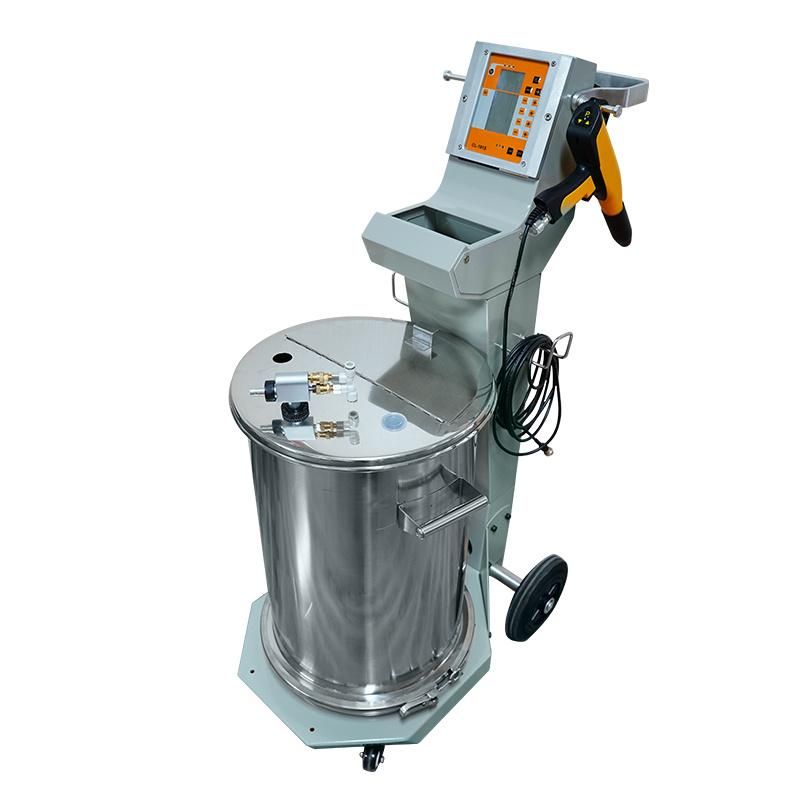

COLO-191S Powder Coating Gun


With digital valve control technology, offers precise powder feed and atomizing adjusting. The consistent and gentle powder output leads to uniform finish, gives optimal powder transfer efficiency and high quality coated surfaces.

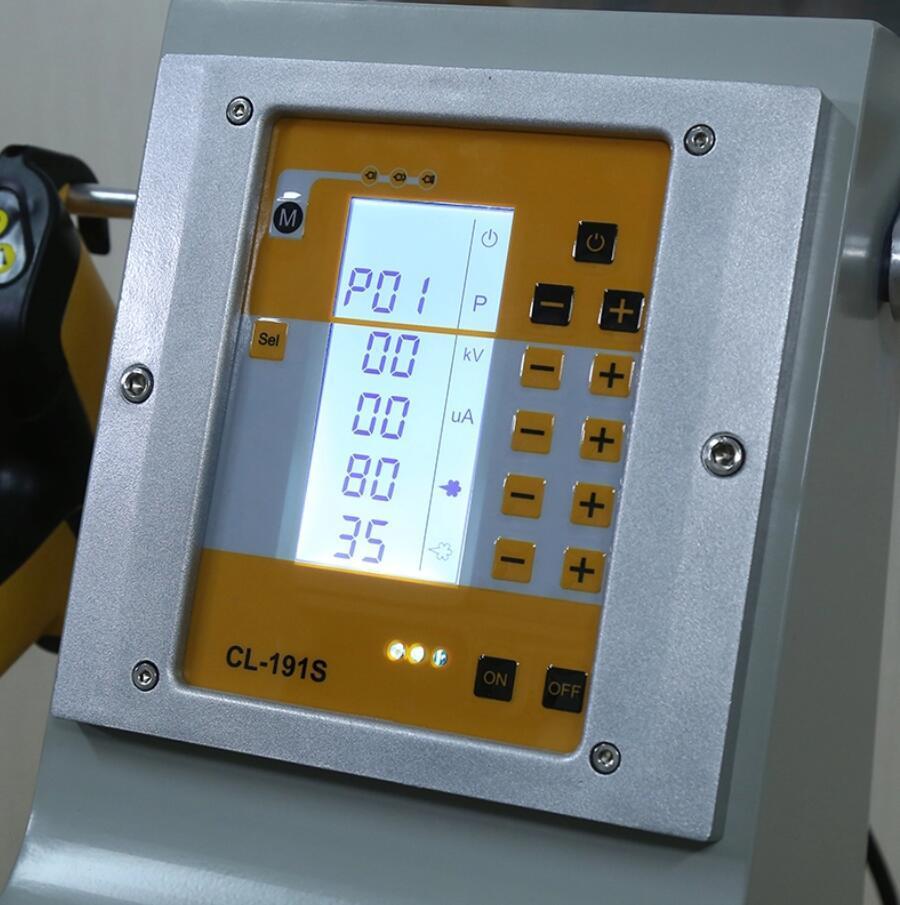

This powder coating machine has 3 pre-set coating modes for flat parts, corners and re-coat jobs, it also allows to create and store 20 personalized programs. A powerful model suitable both beginners or experienced specialists.



Specifications of COLO-191S Powder Coating Gun


Voltage	AC 220V / 110V
Frequency	50-60Hz
Power	50W
Output Voltage	DC24V
Max Voltage	0-100 KV adjustable
Max Powder Injection	600 g/min
Max input air pressure	10 kg/cm
Optimum input-air pressure	6 kg/cm
Minimum input-air pressure	4 kg/cm
Maximum water vapor content or compressed	1.4 g/Nm3
Maximum oil vapor content of compressed air	0.1 ppm
Maximum compressed -air consumption	13.2 m3/h
Temperature Range in Use	-10 ºC-50 ºC
Gun Weight	500g
Maximum Output Current	180μA
Polarity	negative

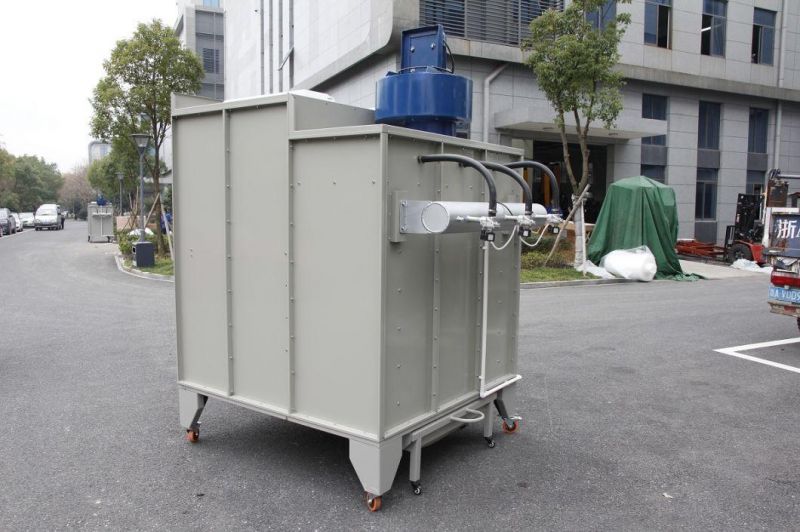

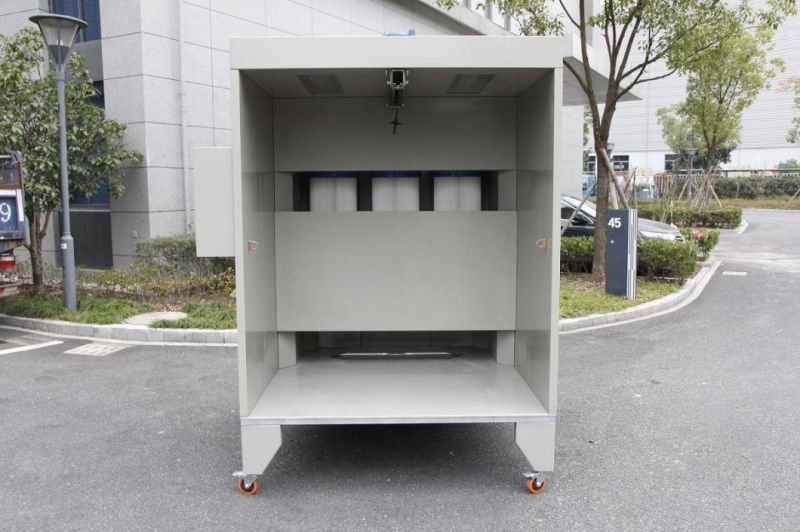

COLO-1517 Powder Coating Spray Booth




1. Built with high-precision filters and powerful extraction fan motor to capture oversprayed powder precisely.
2. Removable powder collector on the bottom of booth is used for collecting oversprayed powders.
3. Quick-release type filters are conveniently for simple and fast operation during color change.
4. The PLC panel controlls the fan working, filter cleaning and other parameters.
5. Booth body is made of powder coated steel, features durable and sturdy.

Specifications of COLO-1517 Powder Coating Spray Booth


Model	COLO-1517
Operating Dimensions	Width1500 * Depth1000 * Height1700mm
Overall Dimensions	Width1640 * Depth2070 * Height2180mm
Weight	480 kg
Power Supply	Electric
Nominal Power	2.2 kw
Voltage	380V220V
Frequency	50-60Hz
Filters Count	3pcs (Dia325*H900 mm)
Filters Hang Type	Easy for change
Filter Cleaning System	Pneumatic
Air Consumption	4000 m3/h

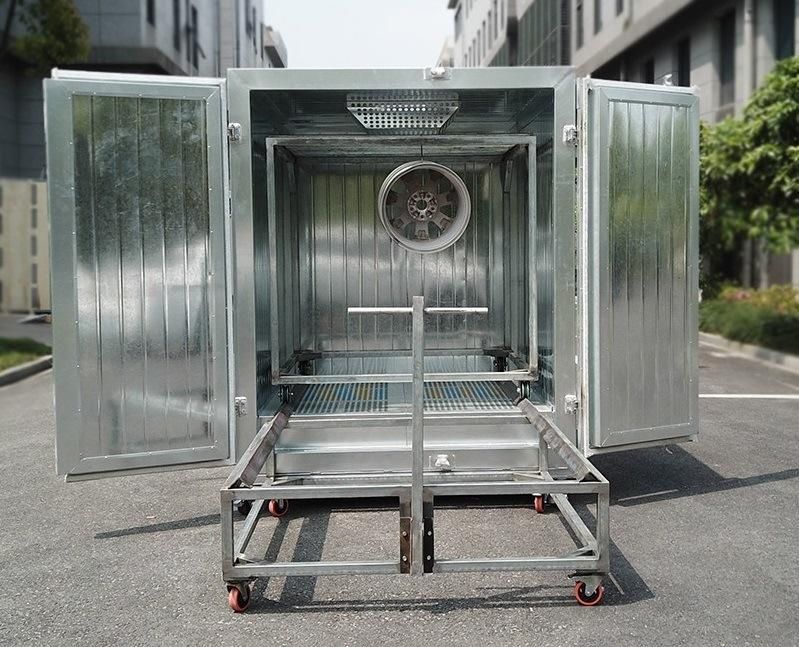

COLO-1864 Electric Powder Coating Oven



1. Taking electric energy as heating source features environmental friendly and cost-effective.
2. 100mm rockwool interlayer with galvanized innerwall and color steel outwall ensures optimal warm preservation.
3. Air circulation fan provides uniform temperature in oven chamber.
4. PLC controller for setting precise time and temperature.
5. Transporting system with two sets of trolley helps a flexible and clean movement of workparts.

Specifications of COLO-1864 Electric Powder Coating Oven


Model	COLO-1864
Operating Dimension	Width1600 * Depth1400 * Height1800 mm
Overall Dimension	Width1900 * Depth2200 * Height1700mm
Power Supply	Electric, 18kw
Voltage	110V / 220V
Frequency	50-60 Hz
Warm-up Time	15-30min (180°C)
Temperature Stability	<± 3-5°C
Temperature Max.	250°C
Motor Power	0.75kw
Circulation/Air Flow	Vertical, Varaible through holes on the walls

Contact us for more product detail!
