High Speed Pocket Spring Coiler Machinery (LR-PS-HX)

Guangzhou Xidengbao Mattress Machinery Co., Ltd.
  • Capacity：70-80springs,Min
  • Wire Gauge：1.6-2.1
  • Pocket Spring Height：80-200
  • Transport Package：Wooden Box
  • Trademark：XIDENGBAO
  • Origin：China(Mainland)

Base Info

  • Model NO.：LR-PS-HX
  • HS Code：8463300000
  • Production Capacity：15 Sets,Month

Description

Technical SpecificationsSpring TypePocketProduction Speed80 Springs/MinuteSpring DiameterΦ 35-80mmSpring Wire DiameterΦ 1.5-2.2mmSpring Height80-200mmSpring Coils4-8 CoilsFabric Rolls WidthMax. 540mmFabric Material50-100G/M2Fabric Roll DiameterMax. 600mmLubricationFully Automatic StandardTemperingStandardControlPLCSafetyCoiler Sound Enclosure and other featuresPower Supply380V/220V 50/60Hz 4.8 KVAAir Consumption30 M3/H 0.8MPAOperative Temperature0 o C- +45 o CMachine weight2300KG After-sales service

 High Speed Pocket Spring Coiler Machinery (LR-PS-HX)


Company Exhibition:
High Speed Pocket Spring Coiler Machinery (LR-PS-HX)

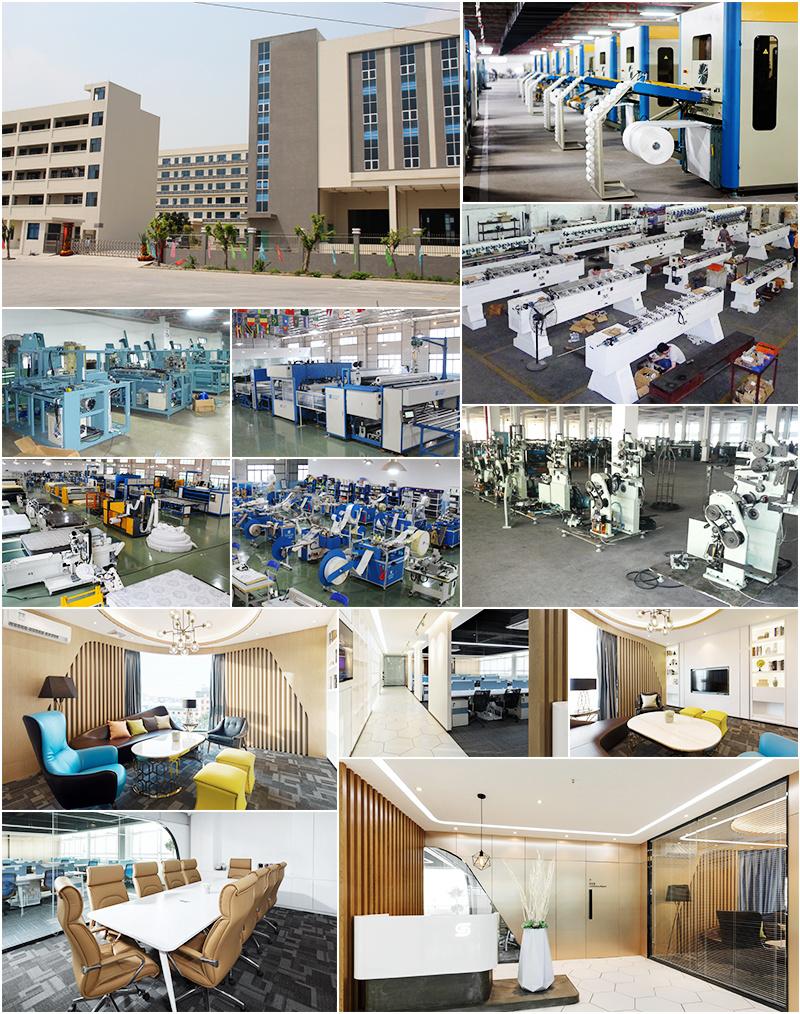

Factory Photos

High Speed Pocket Spring Coiler Machinery (LR-PS-HX)

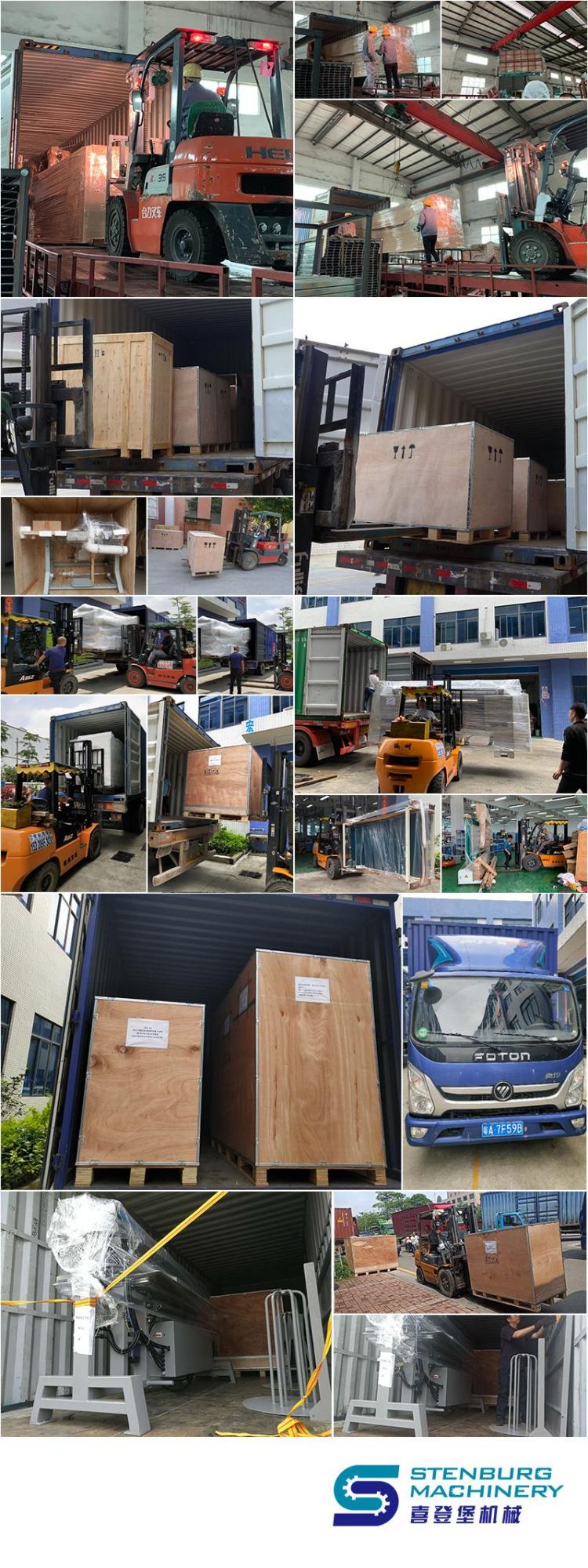

Loading Factory
High Speed Pocket Spring Coiler Machinery (LR-PS-HX)

Sales Network

High Speed Pocket Spring Coiler Machinery (LR-PS-HX)

Certifications
High Speed Pocket Spring Coiler Machinery (LR-PS-HX)
