• Max. Number of Block：1
• Certification：REACH, RoHS, ISO, CE
• Condition：New
• Transport Package：Seaworthy Packing
• Trademark：SUNTECHMACH
• Origin：China
• HS Code：846330
• Production Capacity：200 Sets,Year

Basic Info.

Max. Number of Block 1 Certification REACH, RoHS, ISO, CE Condition New Transport Package Seaworthy Packing Trademark SUNTECHMACH Origin China HS Code 846330 Production Capacity 200 Sets/Year

Product Description

Headstand Type Copper Tube Wire Drawing Machine







 I. Features of Machine:1) Transmission system:The wire drawing machine adopts the transmission way of AC frequency conversion motor+ joint group narrow V belts+ decelerator with hard gear surface+ joint group narrow V belts.

2) Blocks: The block is accurately made of high qualityductile cast iron, sprayed with tungsten carbide.The block surface fineness Ra≥0.8, the surface rigidity is ≥HRC60.

3) Die box: Die box is composed of "#shape" rollers, lubricating chamber, and die chamber. Die box is welded by steel plates and can be adjusted towards right, left, up and down. Inlet water volume is adjusted by ball valve. II.  Main Technical Parameters:

No.	Item	Unit	Data
1	Inlet diameter	mm	Φ15-25mm
2	Capstan diameter	mm	φ1600mm
3	compression ratio	%	18%-25%
4	Surface of block		With tungsten coating, ≥HRC58
5	Main Motor power	KW	55KW
6	Cooling of block		Water cooling + Air cooling
7	Trolley power	KW	2.2KW

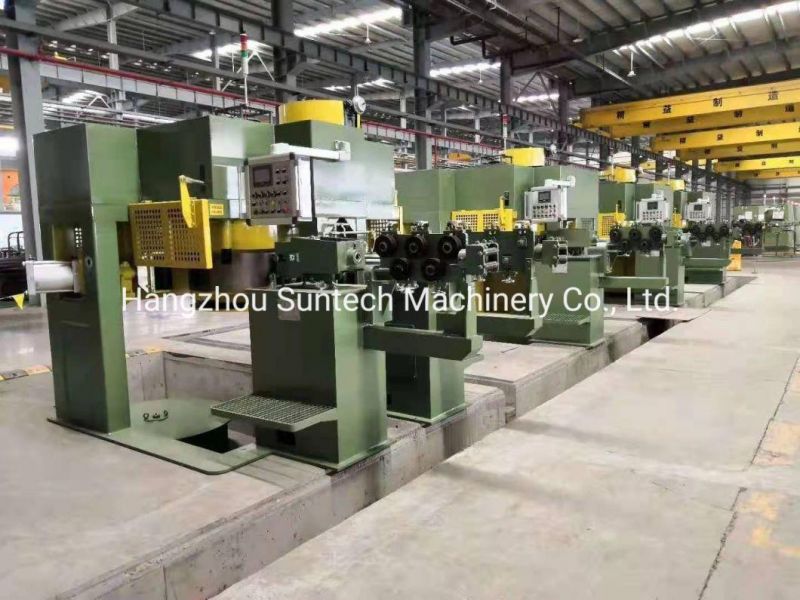

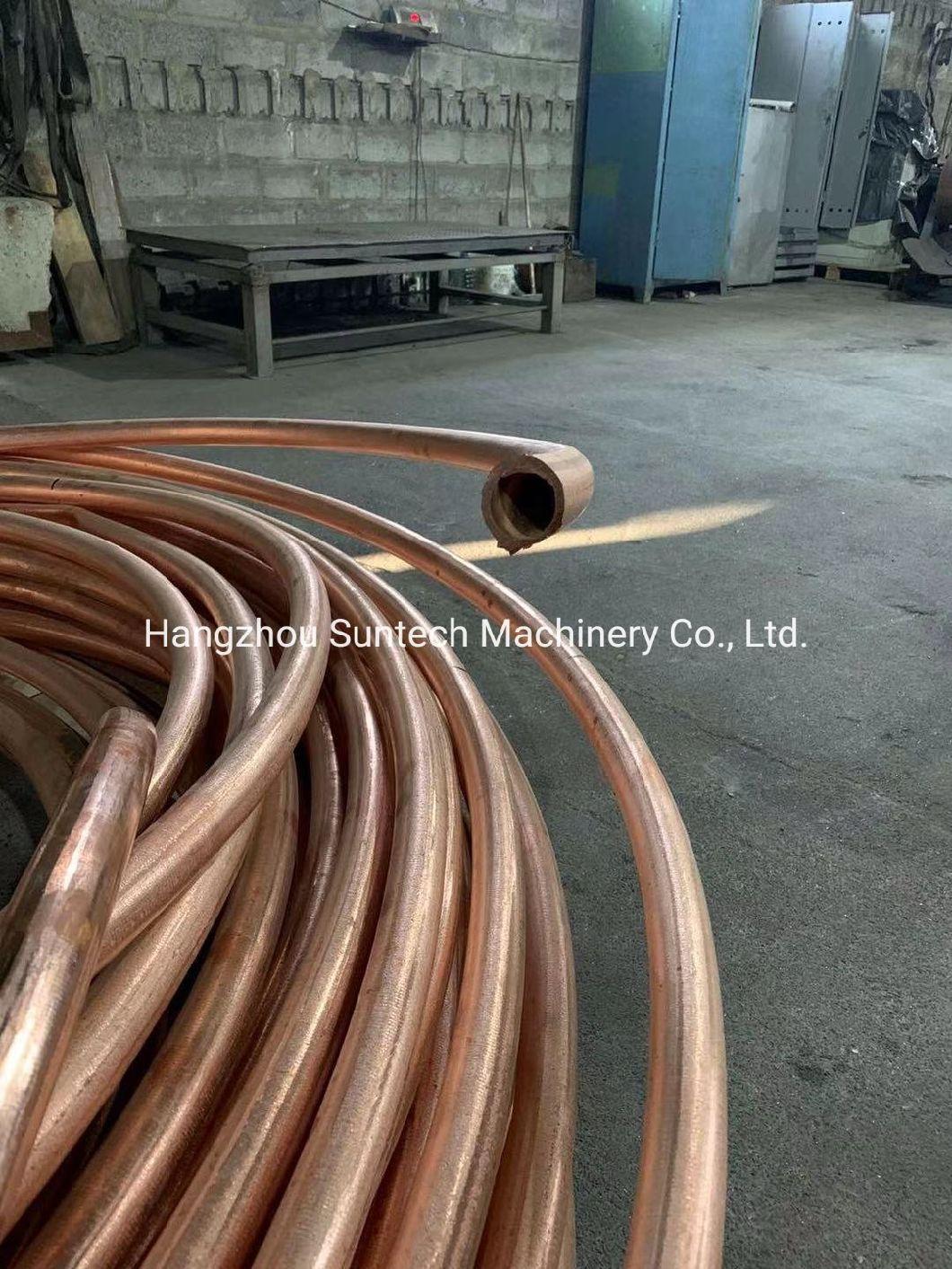

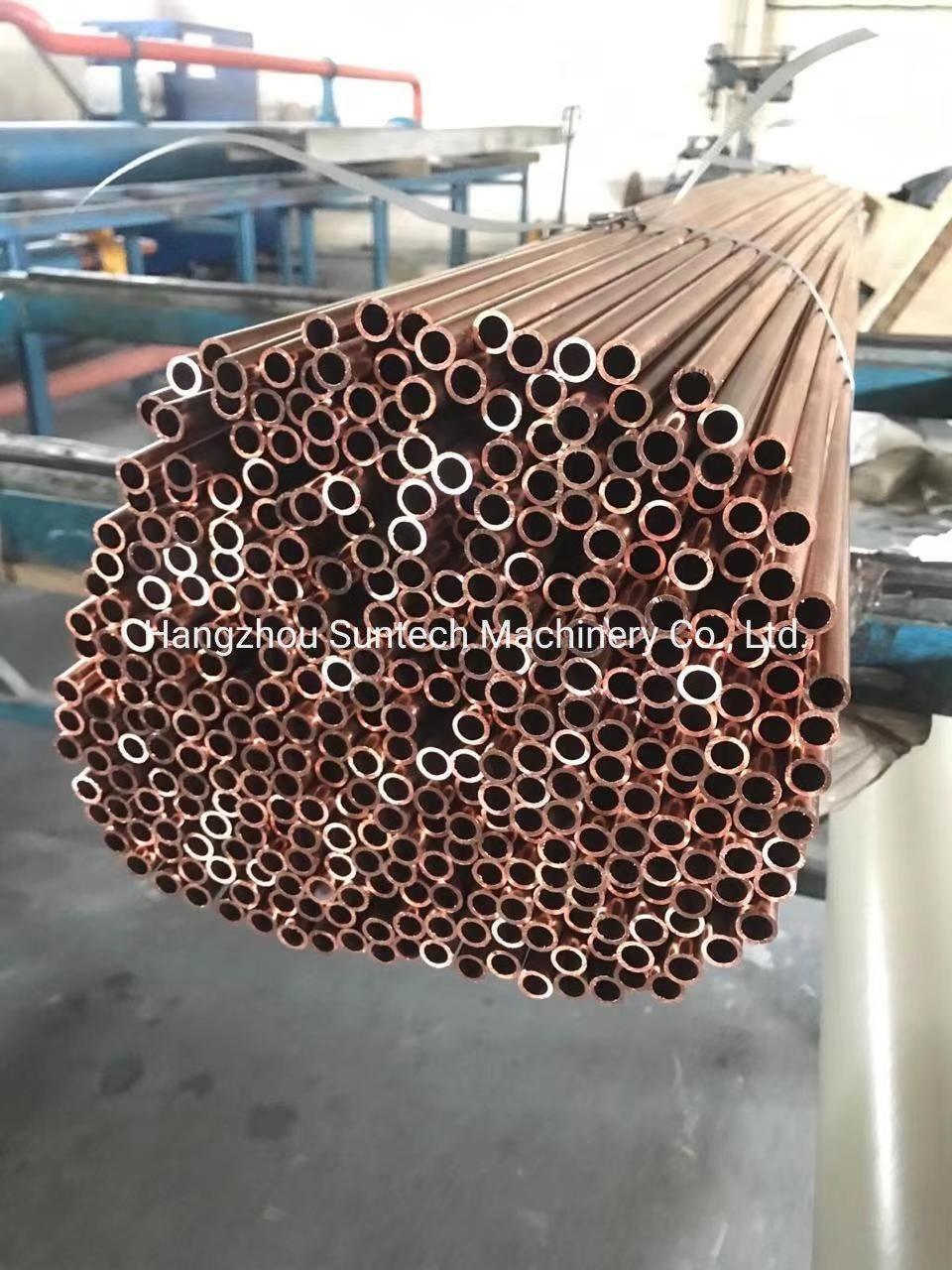

III. Details of machine for reference:

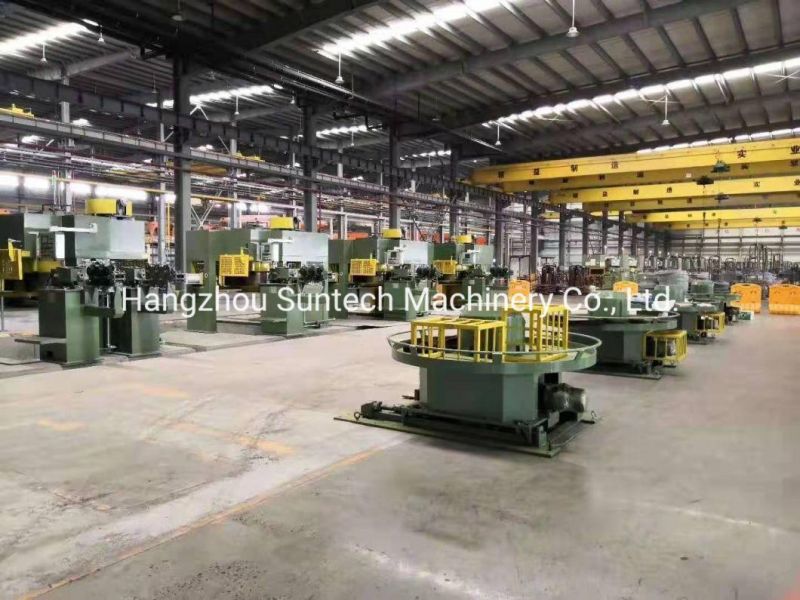

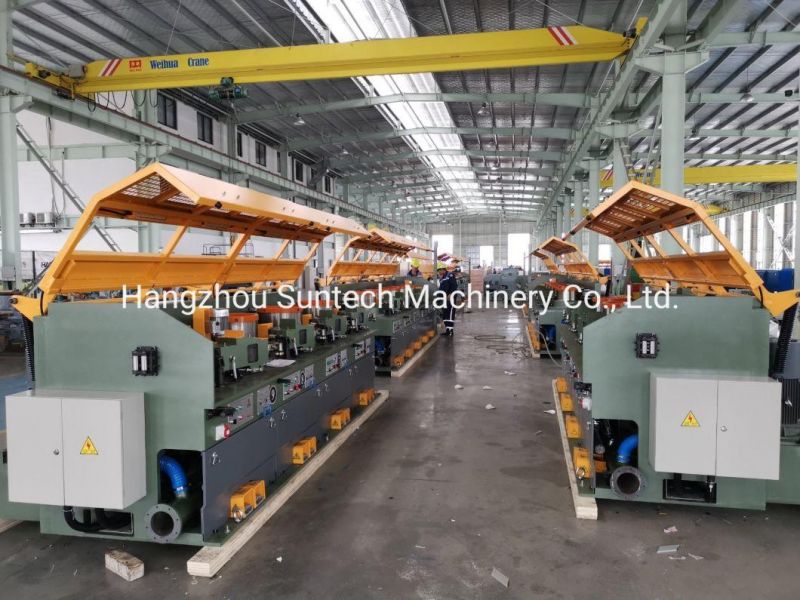

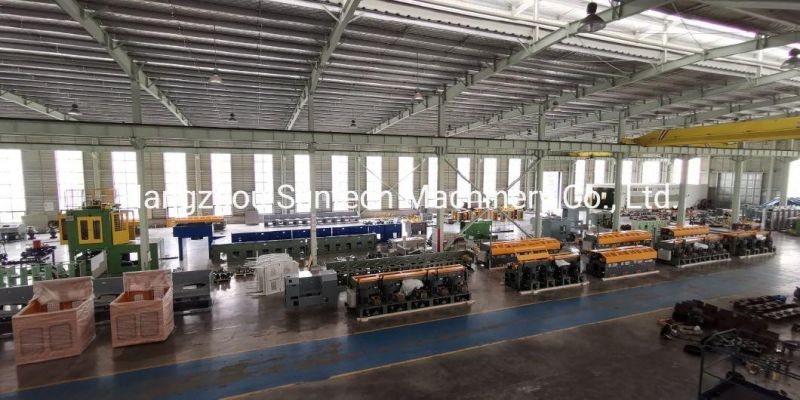

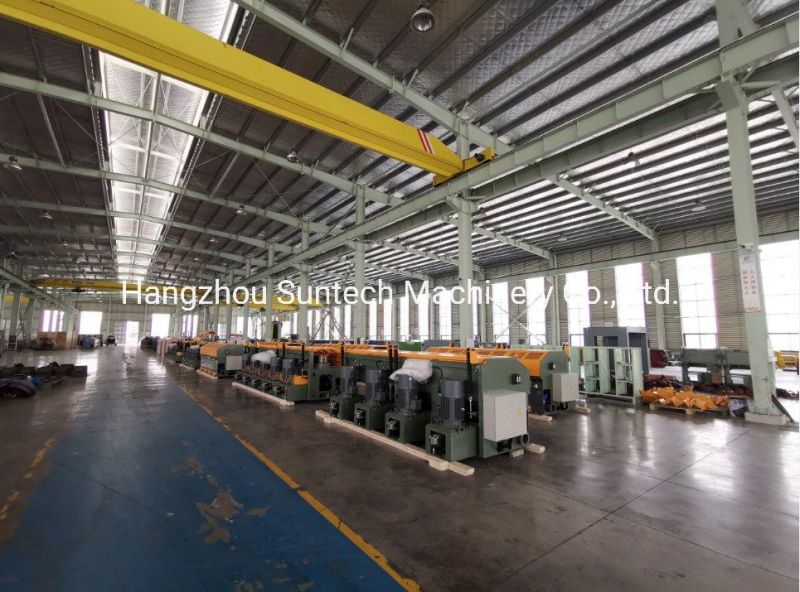

IV. Our Workshop:







VI. Clients list for reference:
