• Model NO.：colo-3217
• Heating：Electric
• Size：Custom-Made
• Working Voltage：380,220V
• Transport Package：Negotation
• Specification：CE
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：100PCS

Basic Info.

Model NO. colo-3217 Heating Electric Size Custom-Made Working Voltage 380/220V Transport Package Negotation Specification CE Trademark COLO Origin China HS Code 8424899990 Production Capacity 100PCS

Product Description

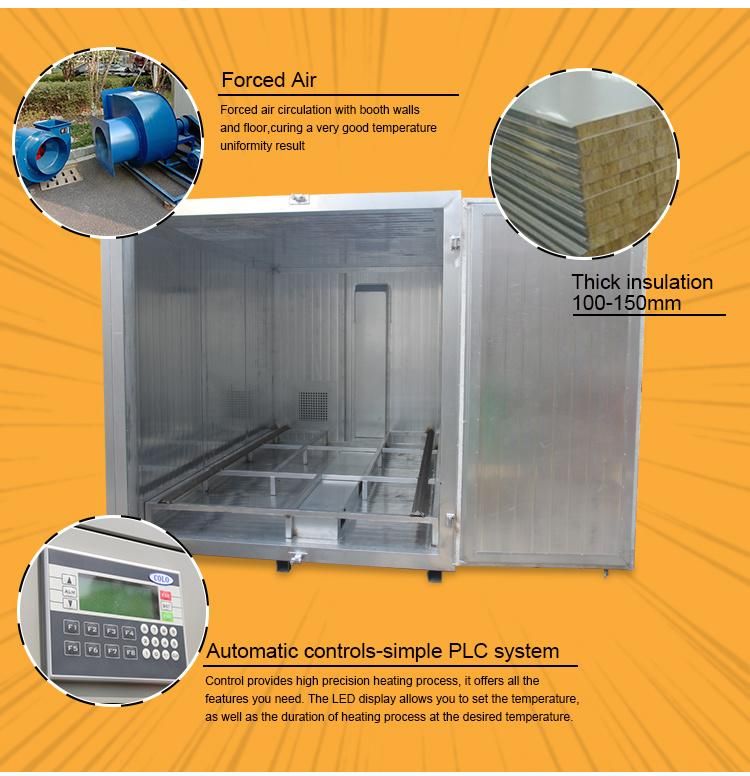

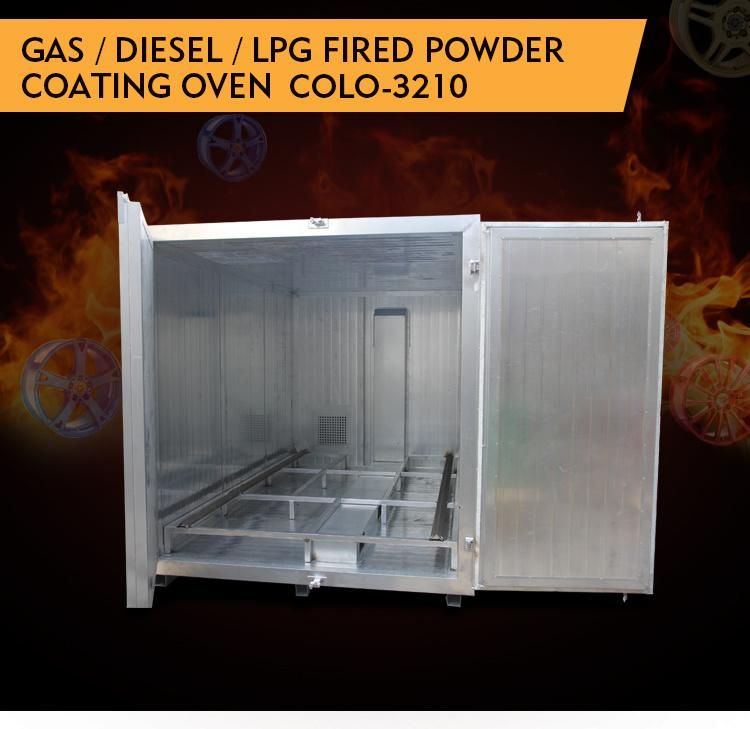

Gas Powder Coat Curing Oven

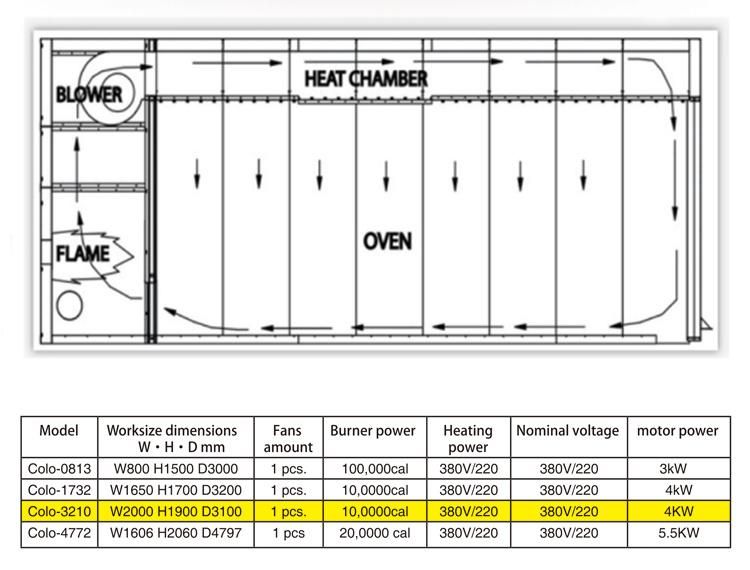

This powder coating curing oven uses the wind tells unilateral wind, the corresponding side of the return air duct cycle, the heating element is installed at the bottom of the box, install the motor cycle top box that allows the motor life extension, double door, door handle claw clasp using fixed.



Model	Colo-3210
Worksize dimensions	2000width x 1900 height x 3100 depth
Power supply	Gas/ 10000kcarl
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 1-3°C
Temperature max.	250° C
Motor power	4kw
Warranty	12 months

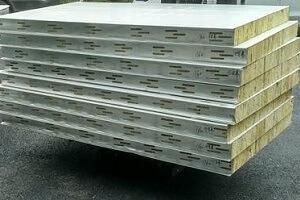

Rock Wool Insulation Board 100mm
The powder coating oven insulation material is 100mm thickness rock wool board, which always maintain the warmness in the oven chamber. The inner wall is 1mm galvanized steel which is heat-resistant, while the outerwall is durable color steel sheet.

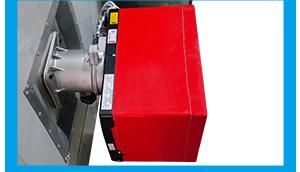

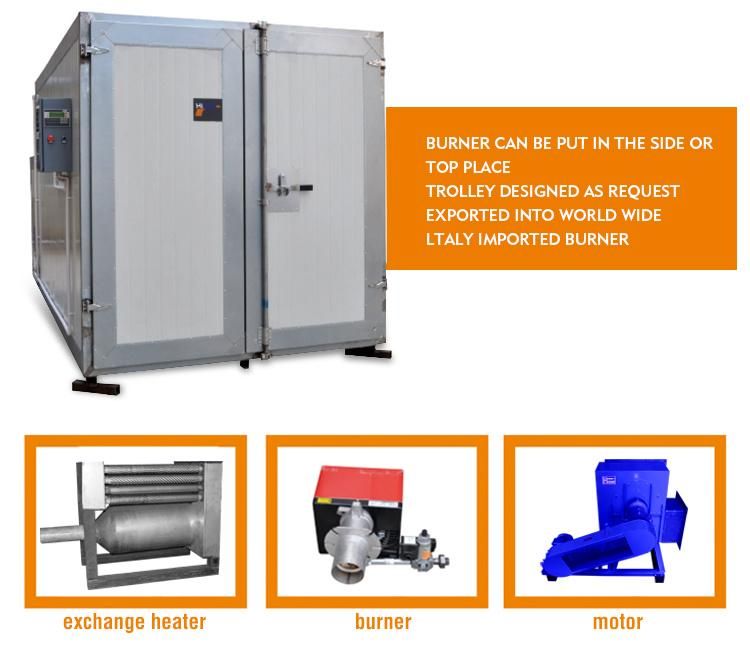

Burner with Famous Brand
Equipped with high performance RIELLO gas burner fully burns of fuels, efficient and energy-saving

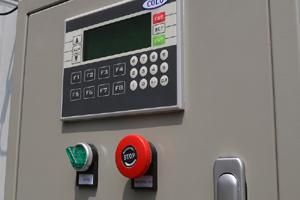

Automatic control-simple PLC system (controller)

PLC Control provides high precision heating process, it offers all the features you need. The panel allows you to set the accurate temperature, fan motor and other setting you required.

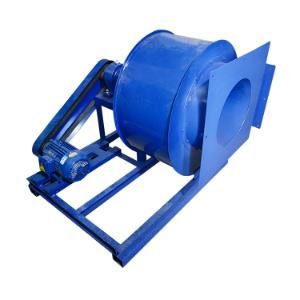

Circulation Blower

We can boast a very good temperature uniformity result thanks to the circulation fan. Our research has shown the temperature stability does not exceed ±5°C! The fan for small powder coating ovens can be installed on the top to save space.

According to customer demand matching glass window can be customized according to
customer specifications specified.

Curing oven cabinet wind deflector plate board material 1.2mm steel
Curing oven door seal material: High-temperature silicone rubber foam seal oppression (such as using the temperature exceeds 250 degree, then the use of aluminum silicate fiber rope)


Air supply: The level of circulating air transport

Temperature Meter: LED LCD intelligent digital temperature controller, temperature control accuracy ± 1 degree, with PID regulator, automatic temperature control thermostat
