• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Material Thickness：0.3 - 0.8 mm
• Production Speed：12-15 M,Min
• Tolerance：1.5mm
• Roller Station：15 stations
• Transport Package：Wood Box
• Trademark：TGMCO
• Origin：China
• HS Code：8455221000
• Production Capacity：100sets,Year

Basic Info.

Customized Customized Advantage Use Widely Condition New Material Thickness 0.3 - 0.8 mm Production Speed 12-15 M/Min Tolerance 1.5mm Roller Station 15 stations Transport Package Wood Box Trademark TGMCO Origin China HS Code 8455221000 Production Capacity 100sets/Year

Product Description

Welcome to Taicang Global Machinery Co., Ltd
https://global-machinery1.en.made-in-china.com/

At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements. Contact us right now!

Main Specification


Coil Width	as customer's requirement
Thickness of Color Steel Sheet	0.3 - 0.8 mm
Output Speed	12 - 15 m/min
Rolling Station	15 Station
Electical Contral	PLC
Tolerance	3m±1.5mm

1. Coil width: as customer requirement

2. Output speed: 12 - 15m/min

3. Coil thickness: 0.3 - 0.8mm

4. Tolerance: 3m±1.5mm

5. Roller station: 15 stations

6. Main motor power: 5.5kw

7. Hydraulic oil pump motor: 3kw, the pressure of hydraulic: 12Mpa

8. Frequency inverter: Panasonic

9. Computer control system, PLC control length, encoder: Omron

10. Material of pressing model: Cr40

11. Material of roller: Gcr15

12. Main roller material: 45# advanced steel

13. Material of cutter: Cr12Mov, heat treatment HRC 58-62, chrome coating

14. Transmission type: 1 inch single row chain drive

15. Machine structure: wall panel

16. Shaft diameter: 56mm

17. Machine dimension: About 7.5m x1m x1.2m






Certificate

Main Customers
FAQ

1) Q: Will you deliver the right goods as ordered?  How can I trust you?
   A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).  We have cooperated with many customers all over the world with high market reputation, no worries.
2) Q: How to choose the Tube Mill Line?
   A: You have to inform us following details:
- The pipe material
- Round pipe range
- Square pipe range
- Rectangle pipe range
- Wall thickness range
- The pipe usage
3) Q: How to choose the Roll Forming Machine?
   A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil weight
- Cutting type
- Profiles drawings
- Other special attention
4) Q: How to choose the Slitting Line & Cut to Length line?
   A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil width
- Coil weight
- Finished sizes
- Other special attention
55) Q: Where is the nearest  airport  to your company?
   A: Shanghai Putong or Hongqiao Airport.
6) Q: How about your service?
   A:  Before sales:
- Technical Support: TGMCO will provide detailed technical information such as technical &  commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
- Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
- Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
- Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
Training of Customers' technician/workers during commission
- Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
Inform immediate technical assistance and advice to customer by phone or e-mail.
Skilled and experienced engineers are capable of dealing with any type of breakdowns.
Technical service work performed in Customer's site if required.
Urgently supply mechanical or electronic components.
Fast supply of spare parts and wearing parts to cover foreseeable requirements

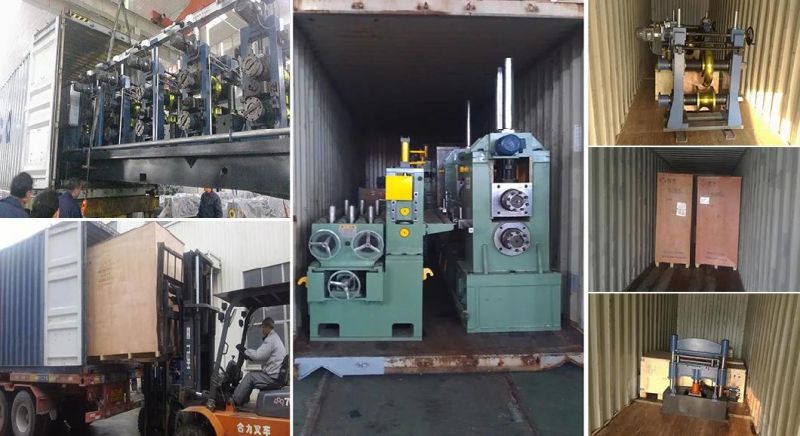

Packing & Delivery




Not only the Good Machine, but also the Most Attentive Service
Integrity Solution & Turnkey Project
Creat the Value of Steel
