• Model NO.：JQ25-100
• Jq25-160A：Width 2000mm
• Jq25-160b：Width 2500mm
• Transport Package：Plastic Bag, Also Can Made as Your Request
• Specification：1250mm width
• Trademark：HENGTAI
• Origin：China
• HS Code：8463300000
• Production Capacity：20sets,Month

Type
JQ25-6.3A
JQ25-16
JQ25-25
JQ25-63A
JQ25-63B
JQ25-100
Depth(mm)
max.1.0
max.1.0
max.1.5
max.2.5
max.3
max.4
Punching Width(mm)
500
1000
1250
2000
2000
2000
Times
180/min
150/min
150/min
70/min
45/min
60/min
Distance(mm)
0-1.15
0-1.2
0-1.2
0-4
0-4
0-4
Length of Mesh(mm)
max.20
max.25
max.30
max.100
max.200
max.150
Motor
2.2KW
3KW
4KW
11KW
11KW
15KW
Weight
0.95T
2T
3T
10T
10T
12T
Measurement (mm)
950 x 570 x1780
1800 x 1320 x1550
1940 x 1600 x 2010
2400 x 3500 x 2300
2400 x 3500 x 2300
3600 x 2500 x 3000Product Description

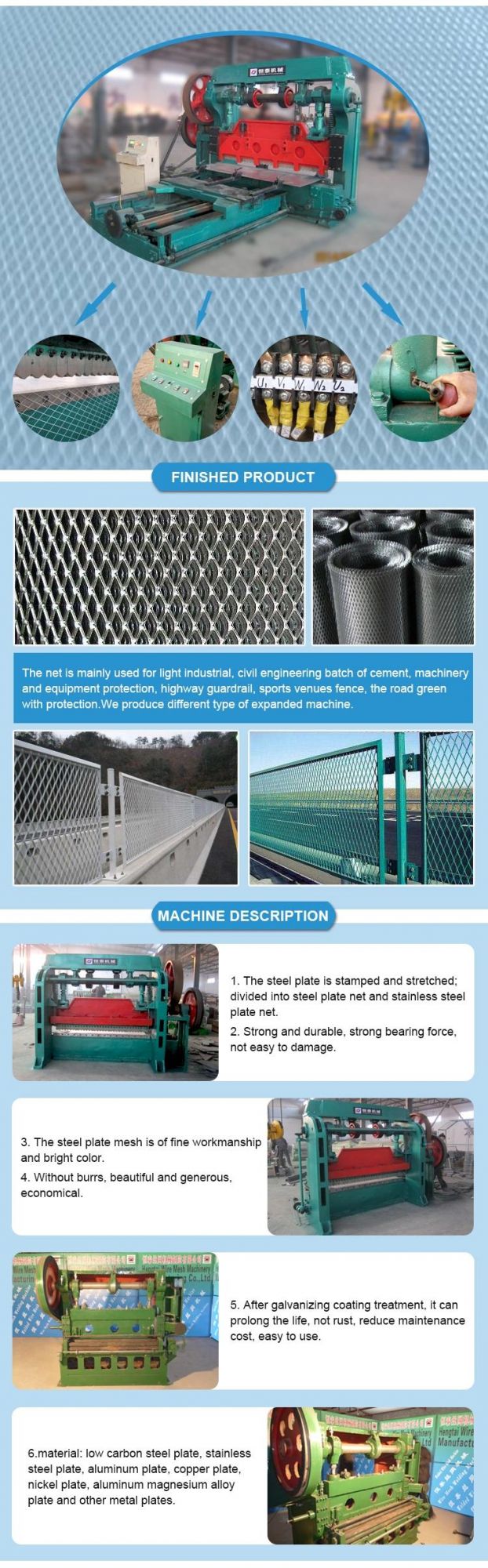

1. The machine is used for punching shear cold crimped engine bed with the thickness of 1.2-2.5mm, the width of 2000mm,
material strength of  450N/m².

2. The specification of punching shear are su-eyed by the bit of TB5-20 mesh grid plate.

3. Easy to operate, high speed and low noise, practical and durable.

4. The material for expanded metal mesh machine can be low carbon steel plate, stainless steel plate, aluminum
plate, copper plate and so on.

Usage
It is widely used in construction, hardware, window and door, machine protection etc.
