• Model NO.：HF-25KW
• Type：Infineon
• Input Current：25A
• Application：Welding, Forging, Quenching, Melting, Solder
• Transport Package：Wooden Box
• Specification：CE, SGS, ISO
• Trademark：ORD
• Origin：China
• HS Code：8514400090
• Production Capacity：10, 000sets
• Package size per unit product：600.00cm * 295.00cm * 620.00cm
• Gross weight per unit product：52.000kg

Basic Info.

Model NO. HF-25KW Type Infineon Input Current 25A Application Welding, Forging, Quenching, Melting, Solder Transport Package Wooden Box Specification CE, SGS, ISO Trademark ORD Origin China HS Code 8514400090 Production Capacity 10, 000sets

Packaging & Delivery

Package size per unit product 600.00cm * 295.00cm * 620.00cm Gross weight per unit product 52.000kg

Product Description

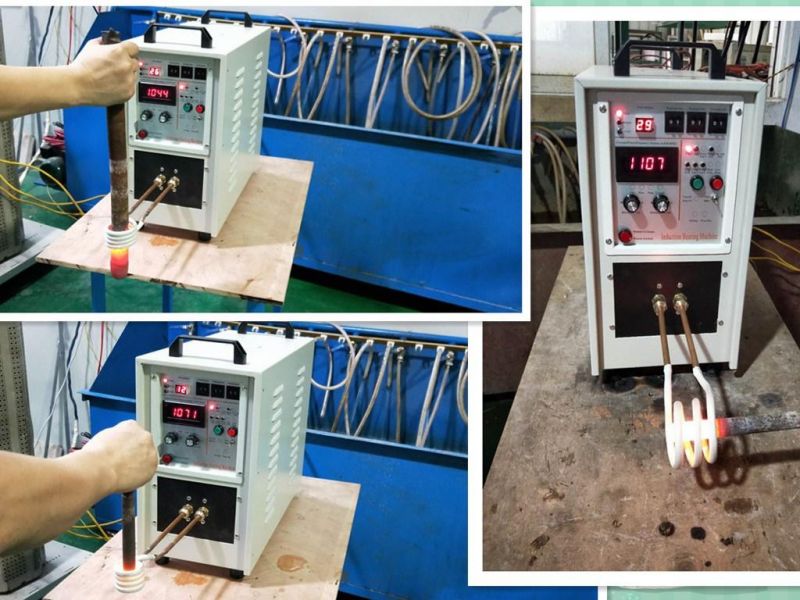

Induction Heating Machine:


Advantage:
1 Siemens IGBT
2 DELIXI Air Switch
3 Phase Bridge ( Germany IXYS)
4 Filter Capacitor (Janpan chemi-con)
5 All screws are Stainless Steel
6 More than 10 year experience, rich experience, stable performance, good quality.
7 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
8 Suitable for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
 Applications:

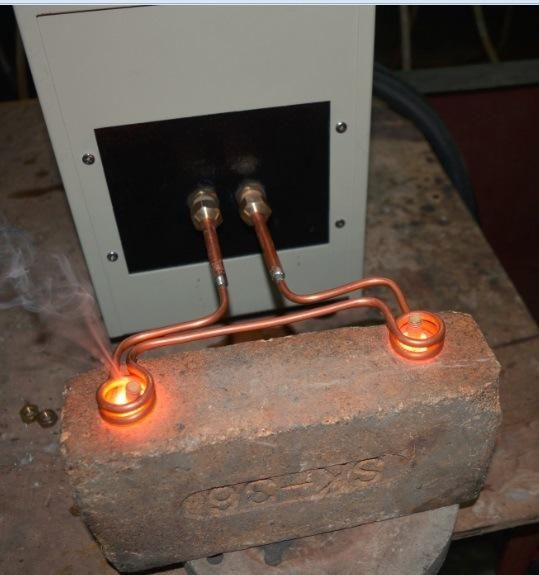

Drill tip heat shaping
 Heat treatment
 Quenching
 Forging
 Melting
Soldering and brazing
Welding

Type	HF-25KW
Work Power	380v,415v,440v,480v *3phase  50-60hz
The range of operating voltage	340-30 AC
Output power	15KW
Input current	36A
Fluctuating frequency	30-80khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 7.6L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	48Kg
Size	640*280*550mm

Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
