China Remax Mini Metal CNC Router with Low Cost

Jinan Remax Machinery Technology Co., Ltd.
  • Carving Material：Stainless Steel
  • Controlling Mode：CNC
  • Main Axle Rotational Speed：≤24000rpm
  • Certification：CE
  • Warranty：24 Months
  • Customized：Customized

Base Info

  • Model NO.：4040
  • Condition：New
  • Table Surface：T-Slot Table
  • Frame：Cast by Iron
  • Max Rapid Travel Rate：15000mm,Min
  • Max Working Speed：8000mm,Min
  • Motor：Stepper Motor
  • Inverter：Fuling,Delta
  • Control System：DSP Control System (Options: Ncstudio,Mach3 PC Sof
  • Spindle Power：2.2kw Water Cooling Spindle
  • Spindle Speed：0-24000rpm
  • Transport Package：Standard Wooden Box
  • Specification：400*400*200mm
  • Trademark：Remax
  • Origin：China
  • HS Code：84659900
  • Production Capacity：50PCS,Month

Description

DescriptionParameterX,Y,Z Working area400*400*200mmTable surfaceT-slot tableFrameCast by ironMax Rapid travel rate15000mm/minMax Working Speed8000mm/minMotorStepper MotorInverterFuling/DeltaControl systemDsp control system (Options: Ncstudio/Mach3 PC Software)Spindle Power2.2kw water cooling Spindle Speed0-24000rpmCommand LanguageG codeLimit switchOMRONElectrical componentsSchneiderDriverLeadshineWorking VoltageAC220/380V 50HZ/60HZX,Y,Z StructureHiwin square and TBI Ball ScrewSoftwareType3/Artcam SoftwareComputer interfaceUSBFeature

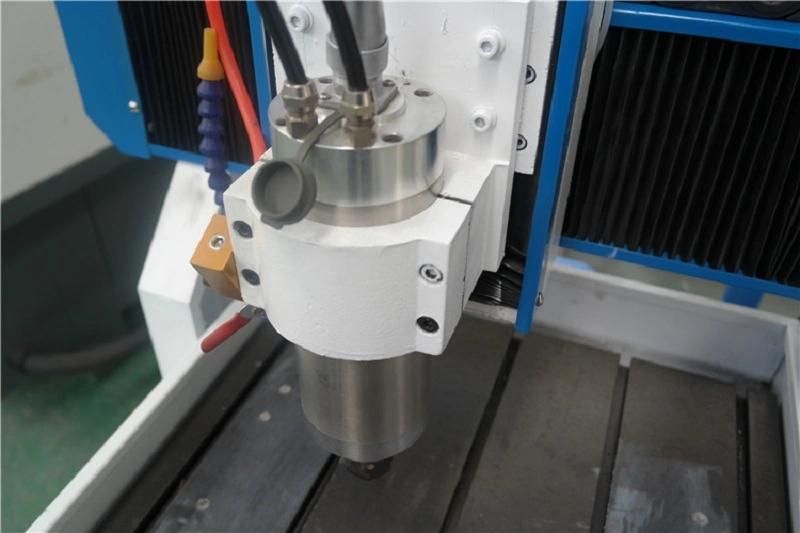

1. Equipped with high speed 2.2 kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
2..Adjust driving speed via inverter, reversing the direction of rotation right / left, emergency stop punch.

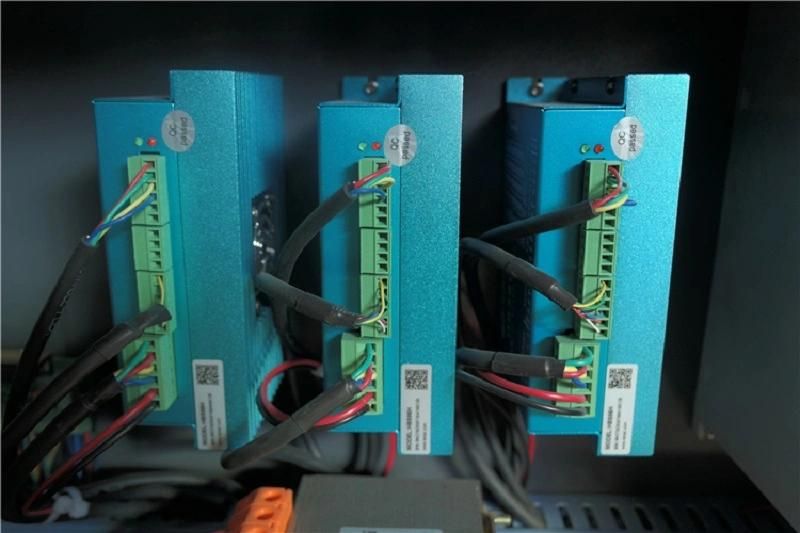

3. Equipped with Schneider electrical components and Omron safety limit switch.
4. TBI ball screw transmission improves positioning accuracy and fast speed.

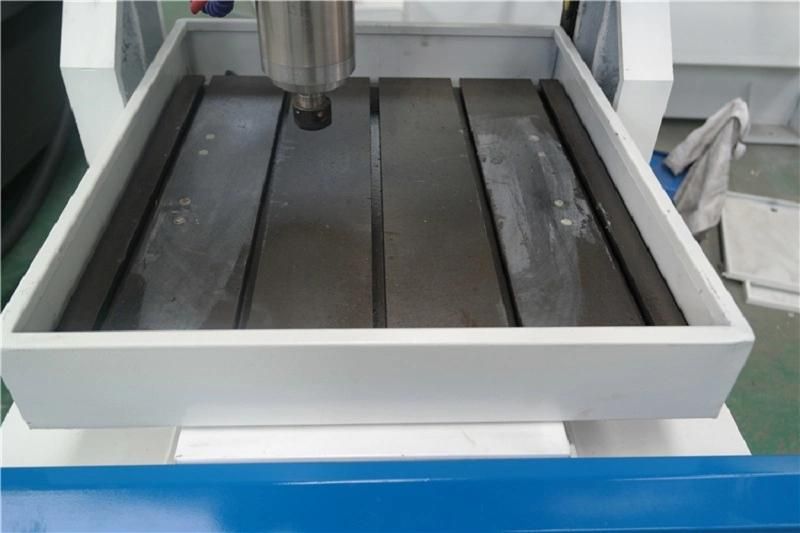

5. Whole machine cast by iron, T-slot , table moved ,easy to sue.

Part
China Remax Mini Metal CNC Router with Low CostChina Remax Mini Metal CNC Router with Low CostChina Remax Mini Metal CNC Router with Low CostChina Remax Mini Metal CNC Router with Low CostOur company
China Remax Mini Metal CNC Router with Low CostJinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNCrouter machines, CNC laser machine, CNC plasma cutting machine. Our company sets research anddevelopment, production, sales, maintenance services as a whole,Our products have covered advertisinindustry, woodworking industry, craft gifts, architectural models, electronics, CAD/CAM industry moldindustry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of itsdistinct cost-effective domestic and in various application fields have been completely replacing importedsimilar products. The company will continue to adopt international advanced production technology andproduction processes, development and production of high quality, the high price ratio of numerical contrcequipment, continuing to create maximum value for customers.

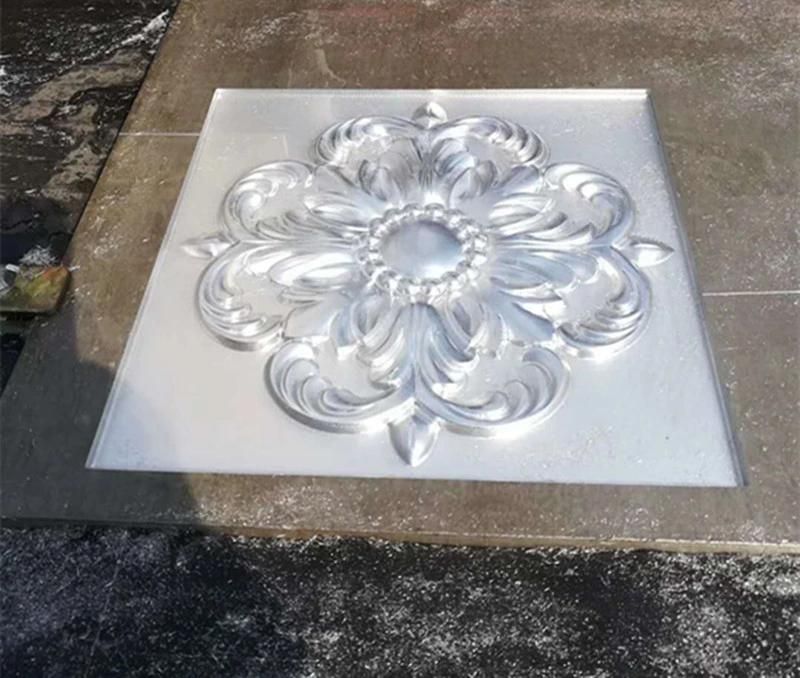

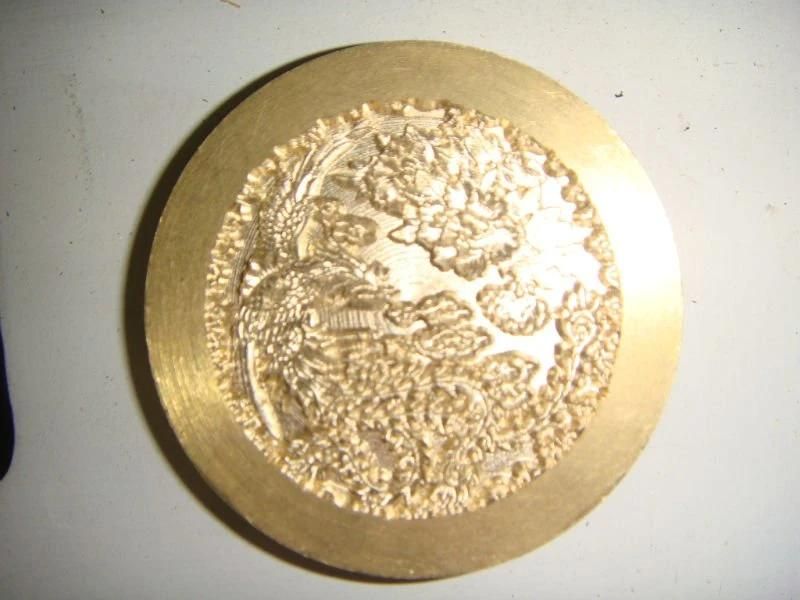

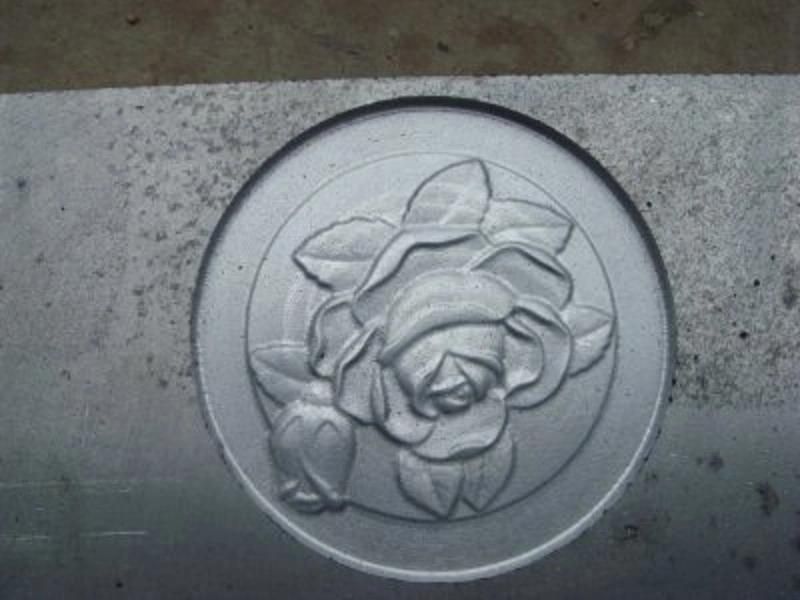

Samples
China Remax Mini Metal CNC Router with Low CostChina Remax Mini Metal CNC Router with Low CostChina Remax Mini Metal CNC Router with Low CostCE
China Remax Mini Metal CNC Router with Low CostOur Service
China Remax Mini Metal CNC Router with Low CostPacking and Shipping
China Remax Mini Metal CNC Router with Low CostFAQ
Q1:How can l buy this machine from you ? ( very easy and flexible! )
A1:1.Cousult us about this product on line by e-mail.
2.Negotiate and confirm the fianl price,shipping,payment methods and other terms.
3.Send you the proforma invoice and confirm your order.
4.Make the payment according to the method put on proforma invoice.
5.We prepare for your order in terms of the proforma invoice after confirmin yourfull payment.And 100% quality checkbefore shiping.
6.Send your order by air or by sea.
Q2:good reasons why you should buy from us?
A2:1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO,Bv certificate.
7.Total machine for one year guarantee
8 our engineer can go to your country to provide technical guidance
9 fast delivery, save your time.
