• Model NO.：GH4240
• Motor Hydraulic：0.75kw
• Coolant Pump：0.125kw
• Overall Dimension：2500X1300X1600
• Key Word：Double Column Band Saw
• Transport Package：Wooden Case
• Specification：CE, ISO9001
• Trademark：UNI-TECH
• Origin：China
• HS Code：8461500090
• Production Capacity：150PCS,Month

Basic Info.

Model NO. GH4240 Motor Hydraulic 0.75kw Coolant Pump 0.125kw Overall Dimension 2500X1300X1600 Key Word Double Column Band Saw Transport Package Wooden Case Specification CE, ISO9001 Trademark UNI-TECH Origin China HS Code 8461500090 Production Capacity 150PCS/Month

Product Description

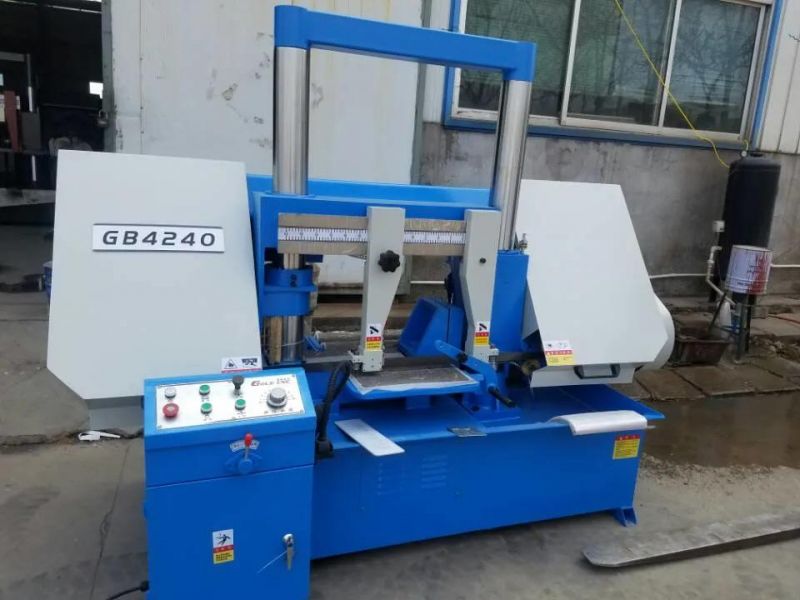

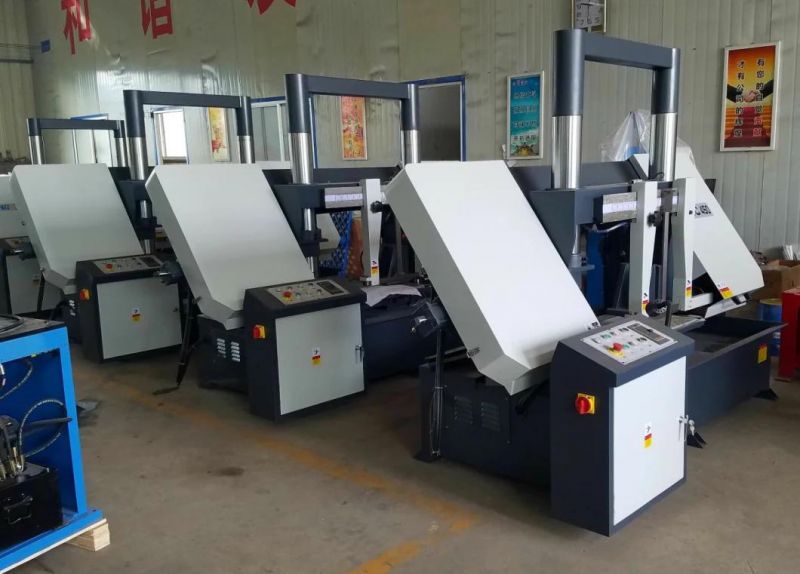

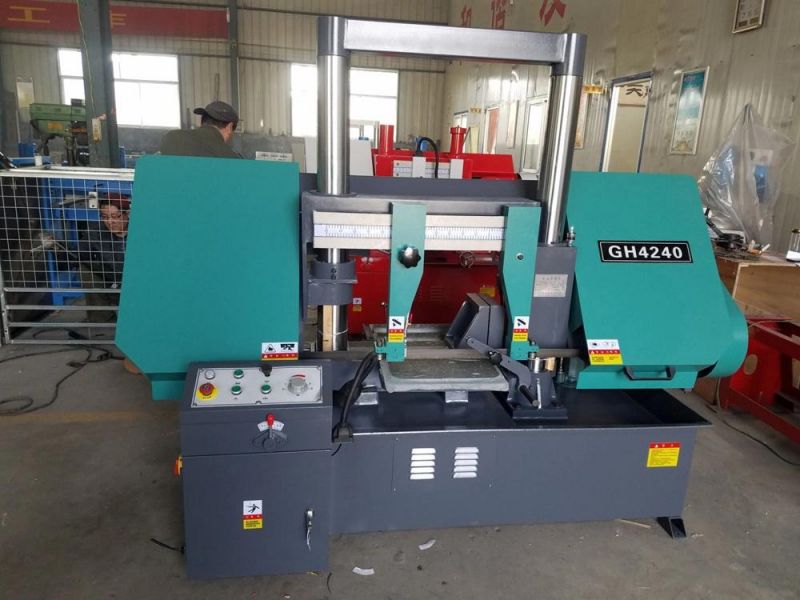

horizontal metal double column band saw cutting machine GH4240


MODEL	GH4240	GH4250
Cutting capacity(mm)	400-400×400	500-500X500
Blade size(mm)	5000×41×1.3	5800X41X1.3
Blade speed(m/min)	27,45,69	27,45,69
Motor main(kw)	4	5.5
Motor hydraulic(kw)	0.75	0.75
Coolant pump(kw)	0.125	0.125
Workpiece claamping	Hydraulic	Hydraulic
Packing size(mm)	2460x1270x1960	2970x1480x2200
N.W./G.W.(kg)	1345/1580	1810/2060

Main features:

1.    Double column structure vertical lifting high stability

2.    High efficiency, high precision save material saving energy

3.    The hydraulic pressure controls the speed of saw stepless speed regulation

4.    The camp of workpieces and hydraulic, control easily

5.    Can made 3 hydraulic tension saw blades per request

Standard equipment:

1.     Hydraulic workpiece clamping,

2.     1 saw blade belt,

3.     Material support stand,

4.     Coolant system,

5.     Work lamp,

6.     Operator manual

Optional equipment:

1.     Automatic blade breakage control,

2.     Fast drop protection device,

3.     Hydraulic blade tension,

4.     Automatic chip removal device,

5.     Various blade linear speed,

6.     Blade protection covers,

7.     Wheel cover opening protection,

8.     Ce standard electrical equipment

Our Services
  1. Your inquiry and email will be replied within 24hours.

2. If you need to develop products with your own specification, we can help you to work it out.

3. Always be honest, never lie to customer, and never declare anything we don't have.

4. Customer First:,we offer best Quality and Service!
FAQ
  1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.

2. Delivery Time:
one week

3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.

4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
