• Model NO.：CY-DIP
• Dwelling Time：0-999s
• Pulling Speed：1-200mm,Min.
• Name：Laboratory DIP Coater
• Transport Package：Wooden Box
• Specification：stoke length 620mm
• Trademark：CY
• Origin：Zhengzhou, China
• HS Code：85141090
• Production Capacity：210 Sets Per Month

Basic Info.

Model NO. CY-DIP Dwelling Time 0-999s Pulling Speed 1-200mm/Min. Name Laboratory DIP Coater Transport Package Wooden Box Specification stoke length 620mm Trademark CY Origin Zhengzhou, China HS Code 85141090 Production Capacity 210 Sets Per Month

Product Description

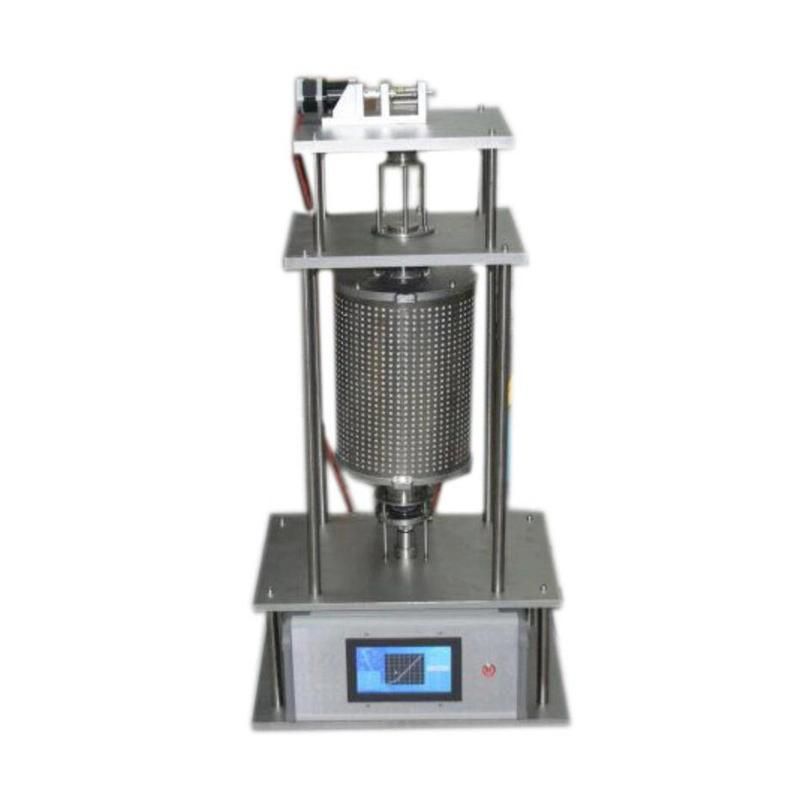

Programmable Dip Coater ( Bridgman ) with Atmosphere Controlled 2" Vertical Tube Furnace Up to 1100°C
PTL-HT is a CE Certified Programmable Dip Coater with 2" Tube Furnace and color touch screen controller. It is designed for R&D Lab to prepare various optical or epitaxial films from the liquid solution under a controlled temperature and atmosphere environment. Dipping rate, pulling rate, dwell time and life cycle can be set up via the touch screen control. The solution is located at the bottom of the sealed tube at room temperature, and the sample can go through a hot zone up to 800oC (to protect the stainless steel wire and sample clamp) under various gas atmosphere or vacuum for achieving high-quality epitaxial films.


Dip Coater	Working Voltage: 110V AC  ( or 220V ) Max. Power Consumption: 50W 6"(L) x 4"(W) Touch Screen Display Three stages pulling speed control Total stoke length: 620mm Pulling Speed: 1-200 mm/min programmable with accuracy of +/- 0.05% Dwelling time at constant temperature zone: 1-999 seconds Lower or higher pulling or dipping speed is available upon request at extra cost
Tube Furnaces	Working Voltage: 110V AC or 220V Max. Power Consumption: 2KW Tube size: 2" (OD) x 24"(L) Heating Zone Length: 12" (300mm) Max. heating temperature: 1200°C Continuous working temperature: 1100°C 30 segment programmable digital temperature controller Note: Max. working temperature for dip coating is limited by pulling wire Included stainless steel wire  Max. working temperature < 800°C Ni-Cr-Al wire ( not included )   Max. working temperature < 1100°C Platinium wire ( not included )  Max.working temperature > 1200°C ,< 1600°C
Pulling wire	Three sets of Ni-SS pulling wire are included (pic to the left). Max. working temperature is 800C. Optional pulling wire for higher working temperature: Ni-Cr-Al wire  max. working temperature: 1100C Platinium wire  max.working temperature: 1200 - 1600C
Stage Length	Lower Stage (Pre-heat zone): 236mm Center Stage (Constant temperature zone): 150mm Upper Stage (Cooling zone): 234mm
Product Dimensions	560mm(L) x 470mm(W) x 1435mm(H)
Compliance	CE Certified
Warranty	One Year limited warranty with lifetime support
