• Model NO.：LKX212
• Automation：Automatically
• Transport Package：Wooden Case
• Specification：1200*1200*1700MM
• Trademark：LIKEXING
• Origin：Made in China
• HS Code：84633000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LKX212 Automation Automatically Transport Package Wooden Case Specification 1200*1200*1700MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

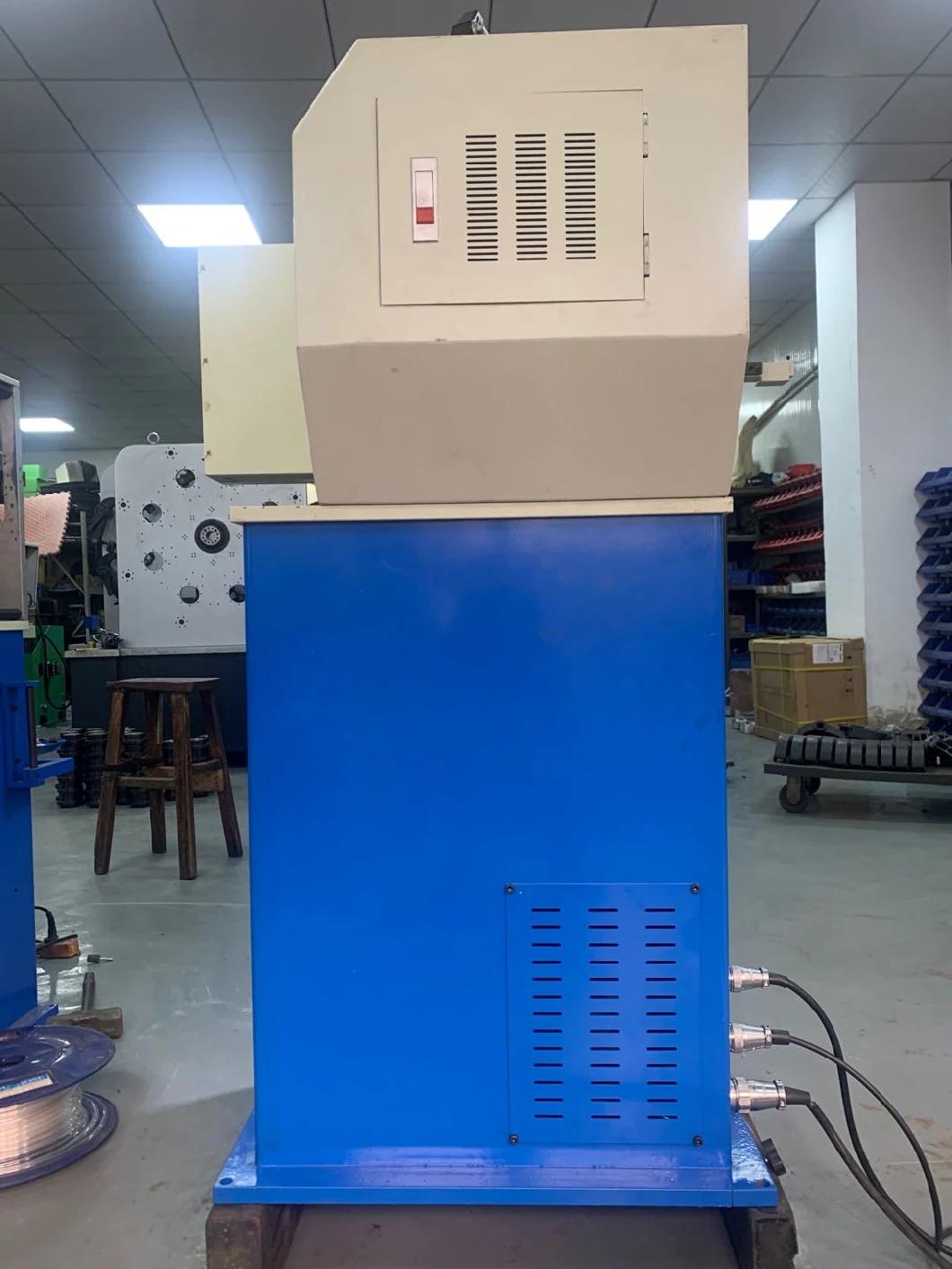

LKX212 Computer Compressing Spring Machine is equipped with  imported Japanese Servo Motor, including cam axis and feeder axis.
High synchronization accuracy, Power-full and precise in wire feeding.
Suitable for producing Compression spring, torsion spring ect. parts.
8inch digital touch screen with touch buttons, easy to use.
In High speed processing, when the motor is voerheating, the cumputer can detect and slow down to protect the motor itself automatically.
Can reduce or increase the production capacity at any time.

TECHNICAL PARAMETER

Model	LKX212
Wire diameter (mm)	Ø0.2-1.2
Axis Count	2 Axis
Max feeding Length	unlimited
Servo motor of wire feed (kw)	2
Servo motor of cam (kw)	2
The Fastest Speed	250pcs/min
The Feeding Wire Speed	800m/min
Max  Outside Diameter	40mm
Machine size(mm)	1000×1000×1600
Machine Weight (Kg)	780
Power	200V 3-Phase
