125ton Hydraulic Scrap Press Metal Baling Machine (CE)
Jiangyin Tianfu Technology Co., Ltd.- Application：Scrap Metal Turning,Plates,Cans,Bucket,Rebar
- Main Pressure：125tons
- Compression Room：1200*700*600 mm
- Bale Size：250*250,300*300mm
- Capacity：500-1000kg,Hour
- Cooling System：Water or Air Cooler
Base Info
- Model NO.：Y81F-1250
- Warranty：1 Year
- Transport Package：Host Nude Packing, Parts in Wooden Cases
- Specification：ISO9001: 2008 CE
- Trademark：Jiangyin Tianfu
- Origin：Jiangsu Jiangyin
- HS Code：8462919000
- Production Capacity：15sets Per Month
Description
ItemUnit Parameter 1 Nominal push force Main cylinder KN 1250 Side cylinder KN 950 2 Hydraulic System Pressure MPa 25 3 Compression room L mm 1200 W mm 700 H mm 600 4 Stroke of cylinder Main cylinder mm 500 Side cylinder mm 950 5 Bale size L mm 150~360 W mm 300 H mm 300 6 Bale density Kg/m³ ≥1800 7 Single Cycle Length S ~120 8 Oil pump Rated pressure MPa 31.5 Rated outflow Ml/r 63 9 Motor Power KW 15 10 Operation Hand valve control 11 Overall size 3300*2400*1900mm 12 Machine weight Approx. 5.3Tons
4.How to choose your baler correctly:

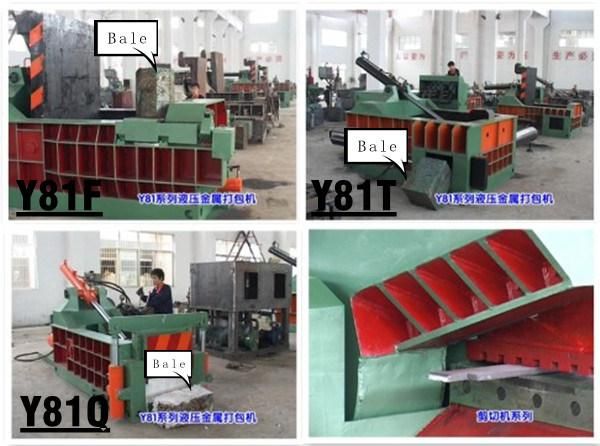

1) If your scrap material is scrap metals, non-ferrous metals, color metals we recommend Y81/F series metal baler to you, which has high pressing force with bales tilting out design.
2) If your scrap material is lightweight metals, such as scrap aluminium, scrap copper, tin cans,
Buckets, we recommend our Y81/Q series metal baler to you, the bales will be pushed from
Baler forward.
3) If your scrap material is heavy metals, then we recommend our Y81/T series metal balers to
You, the bales will be pushed out from the side of the metal baler.
5. Advantages:
1). Our baler machine under 250 ton is integral structure. Hydraulic station connects with the host machine together. So it doesn't need to install. One machine puts in one 20" container. And it saves ship cost.
2). Our company use high-strength wear-resistant plate import from America, the plates are available 15 years, do not need to change, the price is as 5 times as the common, common plate life is three years.
3). We use good quality seals, so no oil leak.
4). Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.
6. Service:
1) Lifelong maintenance and considerate technical support!
2) Any problem before or after delivery, you could find and talk with us anytime anywhere.
3) Technicians can be sent to abroad, door to door service.
4) Video / CD of test running and installation, User's Manual.
5) Complete parts & tools in box sent with machine.
