• Customized：Non-Customized
• Advantage：Work Flexible
• Condition：New
• Model Type：Double Cylinder Steel Upsetting Machine
• Poison Stroke：150mm
• Max Flow：5.42L,Min
• Work Efficiency：10-15s,PCS
• Upsetting Force：3000kn
• Motor Power：7.5kw
• Pump Pressure：30MPa
• Weight：800kg
• Dimension：1100*700*1580mm
• Transport Package：Wooden Box
• Specification：1100*700*1580mm
• Trademark：bafang
• Origin：Shandong, China (Mainland)
• Production Capacity：50,Month

Basic Info.

Customized Non-Customized Advantage Work Flexible Condition New Model Type Double Cylinder Steel Upsetting Machine Poison Stroke 150mm Max Flow 5.42L/Min Work Efficiency 10-15s/PCS Upsetting Force 3000kn Motor Power 7.5kw Pump Pressure 30MPa Weight 800kg Dimension 1100*700*1580mm Transport Package Wooden Box Specification 1100*700*1580mm Trademark bafang Origin Shandong, China (Mainland) Production Capacity 50/Month

Product Description

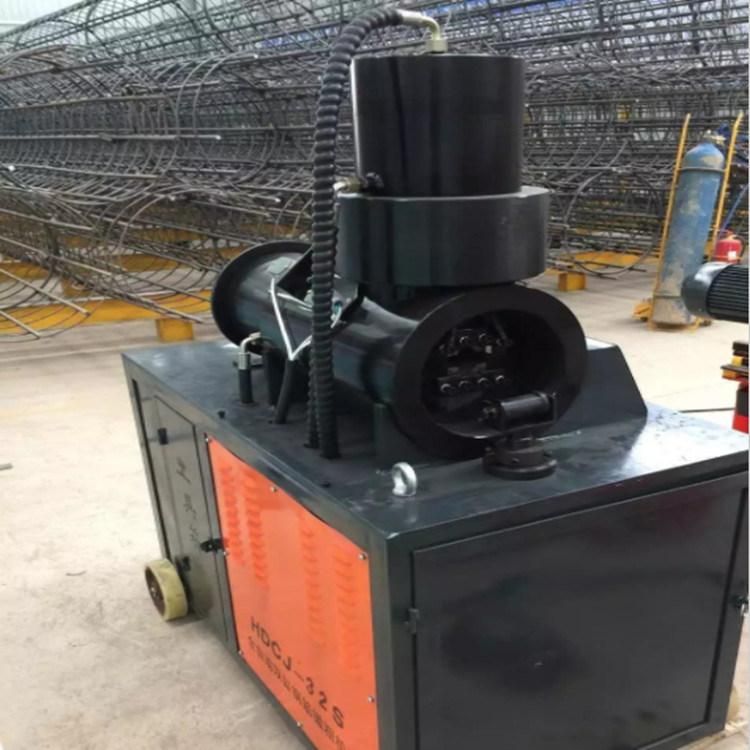

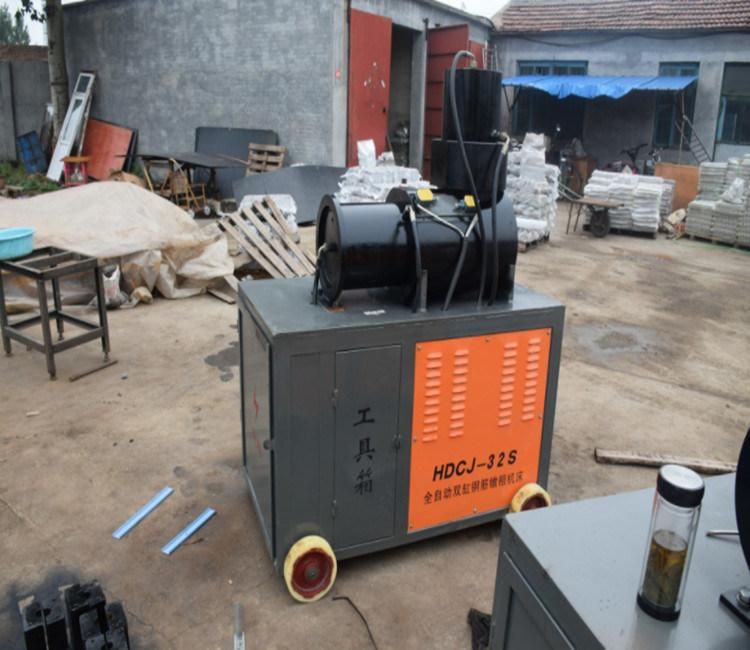

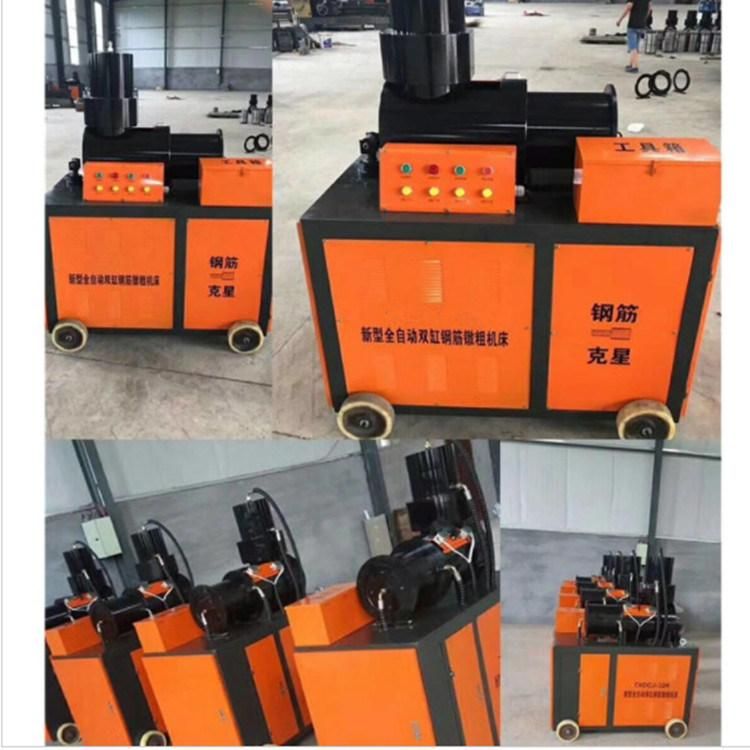

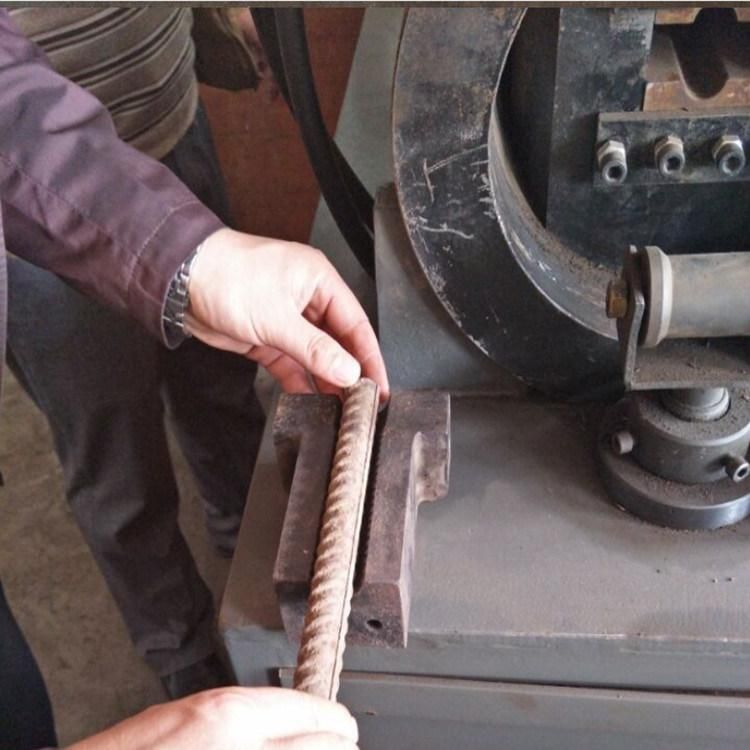

Hydraulic  automatic steel bar heading equipment press upsetting machine
Description:
The technology of connecting the thick and straight thread of the pier is to use the special upsetting machine to prematurely thicken the thread section to be processed at the end of the steel bar, so that the diameter of the thickened part of the processing is increased to be larger than the diameter of the base material. Then, the lap thread processing is carried out on the upset part with a special Threading Machine, and then the threaded parts of the two steel head ferrules which are processed with the same size sleeve are connected by a wrench, that is, the so-called steel bar docking is completed. The straight and thick thread connection technology such as upsetting has the advantages of stable performance, quick connection and labor saving, high inspection pass rate, and also can completely solve the problem of non-rotating connection of steel bars. It makes the actual cross-sectional area after machining the thread larger than the original steel cross-sectional area, greatly improving the tensile strength of the joint. This upset threaded joint is tested by tensile test and is completely broken in the base metal, which is suitable for higher requirements.
Parameter:

Model type	Double cylinder steel upsetting machine
Poison stroke	150mm
Max flow:	5.42L/min
Work efficiency	10-15s/pcs
Upsetting force	3000KN
Motor power	7.5kw
Pump pressure	30Mpa
Weight	800kg
Dimension	1100*700*1580mm
