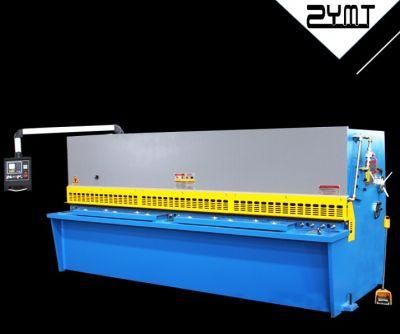

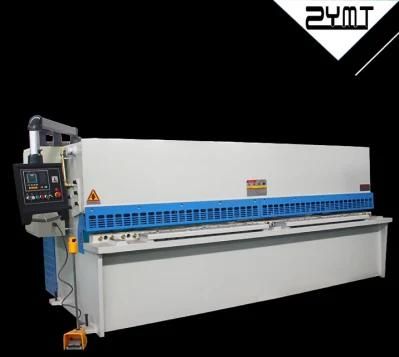

• Model NO.：QC12K-12X3200
• Emergency Button：Yes
• Application：Metal
• Process Usage：Metal-Cutting CNC Machine Tools
• Movement Method：Linear Control
• Control Method：Semi-Closed Loop Control
• Numerical Control：CNC,MNC
• Processing Precision：±0.05mm
• Performance Classification：Economical CNC Machine Tools
• Certification：ISO 9001, CE, SGS
• Condition：New
• Transport Package：Plastic Cover
• Specification：CE, ISO, SGS
• Trademark：ZYMT
• Origin：Anhui, China
• HS Code：8462319000
• Production Capacity：3000 Sets,Year

TypeCutting
Thickness
(mm)Cutting Length(mm)Cutting Angle(°)Material Strength
(KN/CM)Stroke (times/min)Power(kw)Weight(kg)Dimension(mm)4×2500425001°30'≤450105.538003040*1610*16204×3200432001°30'≤450105.550003840*1610*16204×4000440001°30'≤45085.565004600*1700*17004×6000460001°30'≤45057.5110006460*2100*32006×2500625001°30'≤450107.550003040*1610*16206×3200632001°30'≤45097.560003840*1610*16206×4000640001°30'≤45087.580004620*1750*17006×5000650001°30'≤45067.5105005400*1750*17006×6000660001°30'≤450511165006480*2100*23008×2500825001°30'≤450107.560003040*1700*17008×3200832001°30'≤45087.572003860*1700*17008×4000840001°30'≤45087.588004640*1700*17008×5000850001°30'≤45087.5115005400*2400*20008×6000860001°30'≤450811180006480*2100*235010×25001025001°30'≤45091173003040*1700*170010×32001032001°30'≤45091180003860*1700*170010×40001040001°30'≤450811120004650*2100*200010×60001060002°≤450515240006500*2100*230012×25001225002°≤450918.590003140*2150*200012×32001232002°≤450918.5108003880*2150*200012×40001240002°≤450818.5130004680*2150*200012×50001250002°≤450618.5160005900*2150*200012×60001260002°≤450518.5290006900*2600*270012×80001280002°≤450518.5465009000*3500*350016×25001625002°30'≤450918.5110003140*2150*200016×32001632002°30'≤450818.5130003880*2150*200016×40001640002°30'≤450818.5163004650*2150*220016×50001650002°30'≤450618.5200005900*2600*270016×60001660002°30'≤450522360006900*2700*270020×25002025003°≤450822155003440*2300*250020×32002032003°≤450822180004150*2350*270020×40002040003°≤450522210004850*2350*270025×25002525003°≤450837190003200*2700*290025×32002532003°≤450537230004200*2700*290025×40002540003°≤450537270003850*2700*290030×25003025003°≤450537235003300*2900*290030×32003032003°≤450537275004200*2900*2900
Optional System

DAC310
Bright LCD 128×64 display
Backguage control, Gap control, Stroke length limitation.
Actual and programmed position visualization, Stock counter,
Programmable up to 100 steps.
Panel-based housing;
Servo control/unipolar/AC two-speed control;
mm/inch transmission;

E200S
Backguage control, bus mode control servo system;
Stroke length limitation, double pragrammable digital output;
Pragram memory of up to 40 program, up to 25 steps per program;
One side positioning, retract of function.
mm/inch transmission, Chinese/English transmission;
240×128 pixels LCD display.

E21S
Backguage control, control for general AC motor, frequency inverter;
Intelligent positioning, double programmable digital output;
Stock counter, program memory of up to 40 programs, up to 25 steps per program;
One side positioning, retract of function.
One key backup, restore of parameters;
mm/inch transmission, Chinese /English Transmission; LCD display;


P40
Analog or digital outputs for 1-3 speed operation 16 free programmable digital in-/outputs
Program memory(1000 sets)
Angle control/gap control/backguage
Limitation of the cutting length
Material List for angle and gap control

HT071
Regulated power supply for encoder or push pull/o.c.
optional line 12 Vdc±5% 120 mA
Optoisolated inputs
High luminosity led display having 6 digits plus sign for position,
2 digits fpr cycles and for programs.
Possibility to save up to 99 programs composed of 20 cycles.
Each cycle can count 65000 repetitions at maximum
Data and programs are saved in a flash memory without floating battery Ip 65, polycarbonate, water and abrasion-proof keyboard with tactile sensitivity.

China ESTUN E10S
X axis and Y axis position display;
Resolution:0.1mm or 0.0001 inch;
Stock counter, 2 timer integrated;
One side positioning indication;
Sofware limitation;
Power-off memorization.

Packaging & Shipping
(1)Before packing, the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
(2)Before loading, stable package, professional and skilled loader reduce damage of product during transport.
(3)After loading, our professional documentary staff will follow the order till the product departs from port.

Our Services
1. Shearing blades and accessories-Customized to your specifications. In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases-even for complex technical ones.

2. Service package
Basic: we offer you rapid trouble shooting through telephone support and costs for on-site missions are reduced.
Special: Engineers available to service machinery overseas for the necessary maintenance.
Partner: Our located dealers or customers who sell or use our machines are fully behind you, they are our friendly partner and supply good advice to you.

3. Technical Service(After-sale service)
Installation and start-up(Available for complex and big machines or if you have demand)
