• Model NO.：Y81F-1600 Baling Press Machine
• Main Pressure：160tons
• Design：Integral or Parted
• Color：Customized
• Weight：13-15t
• Transport Package：Host Nude Packing, Parts in Wooden Cases
• Specification：CE,ISO9001: 2000
• Trademark：Tianfu
• Origin：Jiangsu China
• HS Code：8462919000
• Production Capacity：500 PCS,Year

Basic Info.

Model NO. Y81F-1600 Baling Press Machine Main Pressure 160tons Design Integral or Parted Color Customized Weight 13-15t Transport Package Host Nude Packing, Parts in Wooden Cases Specification CE/ISO9001: 2000 Trademark Tianfu Origin Jiangsu China HS Code 8462919000 Production Capacity 500 PCS/Year

Product Description

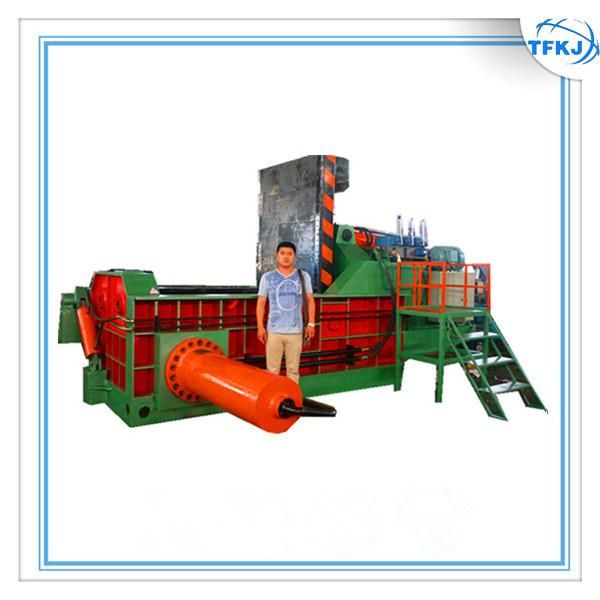

Hydraulic Baling Press Machine (Y81F-1600)

1.Application
Y81 series of hydraulic metal baling press machine is applicable in steel plants, recycling companies, ferrous & non-ferrous smelting industry to press metal scraps(steel, copper, aluminum, stainless steel, discarded automobiles)into acceptable fumace charges(shapes: Cuboid; Cylinder or octagon), so as to reduce cost of transportation, to increase speed of fumace charging.

2.Features:
1)Hydraulic drive for all machine types, manual valve control or PLC control.
2)Bale-discharging: "turn-out", "push-out", "forward-out" or manual discharging.
3)No footing bolts needed in installation; Diesel engine can be equipped for power.
4)Baling force 10 grades from 63 to 400 tons; Productivity from 4 to 40 tons per shift(8 hours).

3.Main models for reference:

Model	Nominal Force (KN)	Material box size(L*W*H) (mm)	Bale Size (mm)	Bale Density (kg/m 3 )	Capacity (kg/h)	Cycle Time (s)	Power (kw)	Bale Discharging Operation
Y81-630	630	1000*600*500	(180-250)*200*200	> 1800	500-1000	90	7.5	Over packet,manual
Y81-1000	1000	1000*600*500	(200-300)*230*230	> 1800	1000-1200	120	11	Over packet,manual
Y81/T-1000	1000	1000*600*500	(200-300)*230*230	> 1800	1000-1200	120	15	Push,manual
Y81-1250	1250	1200*700*600	(150-360)*300*300	> 1800	1000-1500	120	15	Push,manual
Y81/T-1250	1250	1200*700*600	(250-400)*300*300	> 1800	1500-2000	80	18.5	Push,PLC
Y81Q-1350	1350	1400*600*600	(240-450)*600*240	> 1800	1800-2500	80	22	Before packet,manual
Y81-1600	1600	1600*1000*700	(400-600)*400*400	> 1800	2000-3000	150	22	Push,manual
Y81/T-1600A	1600	1600*1000*800	(400-600)*400*400	> 1800	2000-3000	150	22	Push,manual
Y81/T-1600B	1600	1600*1200*800	(400-600)*400*400	> 1800	2000-3000	160	30	Push,manual
Y81-2000	2000	1600*1200*800	(400-600)*400*400	> 1800	2500-4000	160	30	Push,manual
Y81/T-2000A	2000	1600*1200*800	(400-650)*400*400	> 1800	2200-4000	160	30
Y81/T-2000B	2000	1800*1400*900	(400-700)*450*450	> 1800	2500-4500	160	37
Y81-2500	2500	2000*1400*900	(400-700)*500*500	> 1800	3500-5000	160	37
Y81/T-2500A	2500	2000*1400*900	(400-700)*500*500	> 1800	3500-5000	160	44	Push,PLC
Y81/T-2500B	2500	2000*1750*1000	(450-800)*500*500	> 1800	3500-5000	160	60
Y81-3150	3150	2000*1400*1000	(400-700)*500*500	> 1800	3500-5000	160	60
Y81/T-3150	3150	2000*1600*1200	(450-700)*550*550	> 1800	4000-5000	160	66	Push,PLC
Y81/T-4000A	4000	2000*1600*1200	(450-800)*550*550	> 1800	5000-6000	160	74	Push,PLC
Y81/T-4000B	4000	2600*2000*1200	(500-1000)*600*600	> 1800	5000-7000	180	90	Push,PLC
Y81/T-4000C	4000	5000*2000*1200	(500-1200)*700*700	> 1500	8000-10000	200	135	Push,PLC
Y81/T-6000	6000	3200*2000*1200	(500-1200)*700*700	> 1800	7000-9000	180



4.Service:1) Lifelong maintenance and considerate technical support! 2) Any problem before or after delivery, you could find and talk with us anytime anywhere. 3) Technicians can be sent to abroad, door to door service 4) Video / CD of test running and installation, User's Manual. 5) Complete parts & tools in box sent with machine.
