• Model NO.：TWQ-8A
• Phase：Three Phase,Single Phase
• Voltage：110V,120V,220V,230V,240V,380V,400V,415V,440V
• Power：1100W,750W
• Max. Wall Thickness：12mm
• Output：23rpm
• G.W：19kgs
• Packing Size：87*82*122cm
• Transport Package：Free of Fumigation Wooden Case
• Specification：8′′-20′′ SCH40 Steel Pipe
• Trademark：TUWEI
• Origin：China
• HS Code：8461500090
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. TWQ-8A Phase Three Phase/Single Phase Voltage 110V/120V/220V/230V/240V/380V/400V/415V/440V Power 1100W/750W Max. Wall Thickness 12mm Output 23rpm G.W 19kgs Packing Size 87*82*122cm Transport Package Free of Fumigation Wooden Case Specification 8′′-20′′ SCH40 Steel Pipe Trademark TUWEI Origin China HS Code 8461500090 Production Capacity 50, 000 PCS/Year

Product Description

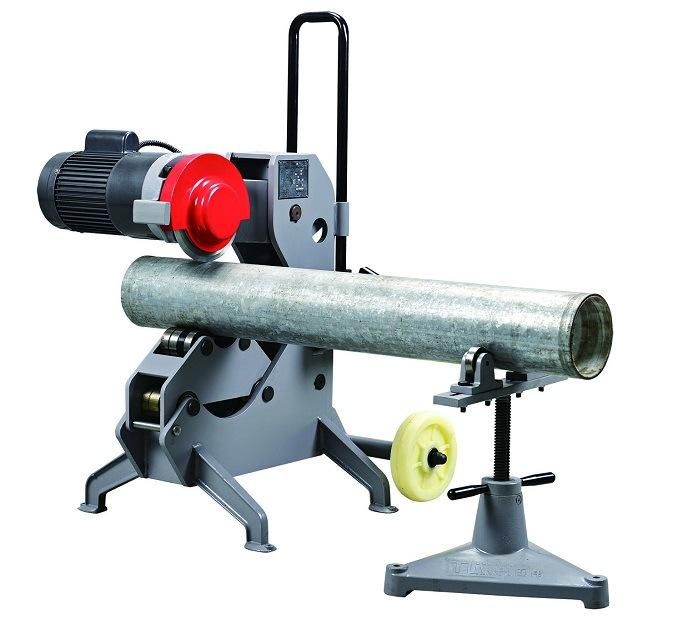

TWQ-8A PIPE CUTTING MACHINE
Cold extrusion process design, there is no sparks , dusts and metal chips appear during cutting operation
The patented oil pump is particularly designed to shorten the idle stroke and reduce the working time.
 Equipped with wheels for moving the machines easily.
SpecificationsCapacity8"-20"( Φ219-Φ530)SCH40steel pipeMax. wall thickness:12MMOutput RPM:23RPMG.W:190KGSPackaging size:87X82X122(CM)
 TWQ-8A is a pipe cutter for cutting 8inch to 20inch steel pipe. The Max. diameter allowed for pipes to be cut is 219mm, and the Min. diameter allowed for pipes to be cut is 530mm. the Max. wall thickness allowed for pipes to be cut is 12mm.

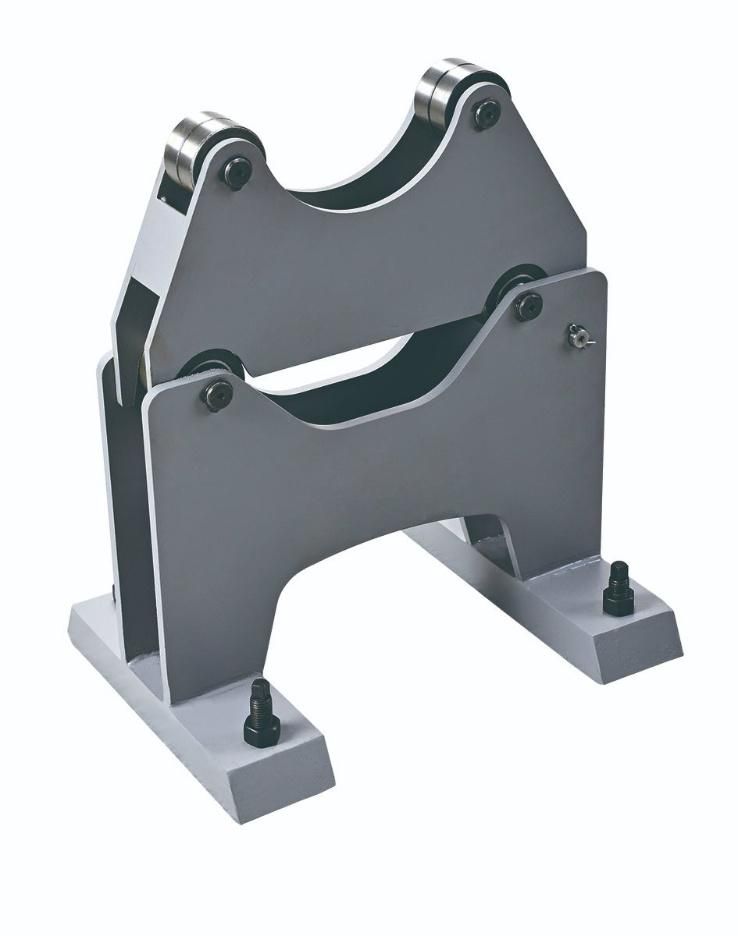

In order to meet different demand, Tuwei provide some optional parts such as foot switch, universal ball of pipe stand, machine frame with wheels. As a Sino-US company who focus on development of pipe tool Victaulic-Tuwei company will enrich our pipe tool series and expend our products range, we will provide much more satisfied products.

Company  Information
TUWEI is the leading manufacturer of pipe tools in china. Our major products are roll grooving machines,
pipe cutting machines, pipe threading machines, hole cutting machine.....In the past years, we have sent our
machines to many countries and get well reputations from all the customers. With the good reputations some
big brands come to us and start cooperation with us. For example the Victaulic, Rothenberger and Tyco-Grinnel.
