• Model NO.：ZPZ
• HS Code：8459210000
• Production Capacity：15sets,Month

Basic Info.

Model NO. ZPZ HS Code 8459210000 Production Capacity 15sets/Month

Product Description

Product Description:

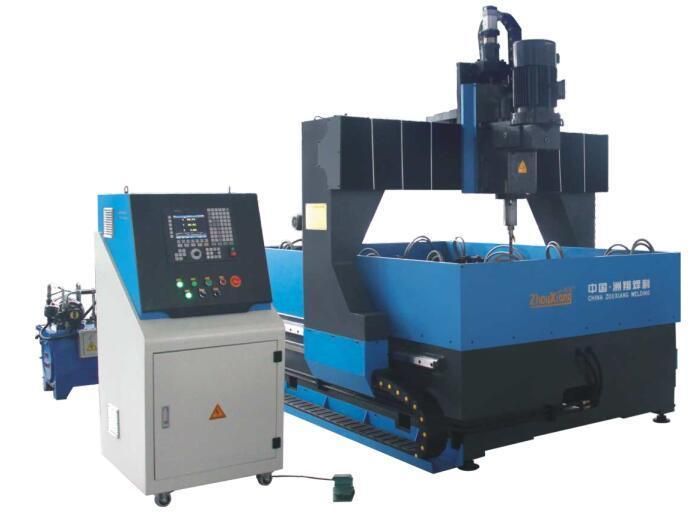

ZPZ digital driller employs AC srevo motor to drive the X axis and Y axis, while its Z axis is positioned by high accuracy raster.By using semi-closed closure digital control system,the machine has reliable performance.The operation of the machine can either be automatic or manual. This machine is widely used in steel frame contruction.

Model	ZPZ160	ZPZ200	ZPZ400
Drilling diameter	φ50	φ60	φ60
Max dimension of workpiece	1600*1000*80	2000*1500*80	4000*4000*80
Rotary speed of main shaft	130-400r/min	130-400r/min	130-400r/min
Feeding type of main shaft	lead screw	lead screw	lead screw
Quality of moveable working platform	2	2	2
Workpiece can be tooled for once	4pcs	4pcs	4pcs
Clamping type	Hydraulic	Hydraulic	Hydraulic
X and Y axis fast moving speed	12m/min	12m/min	12m/min

Main features:
1. High production efficiency: There are two movable worktables. When one table is drilling, the other can handle parts (load or unload) at the same time, so the machine can do non-stop drilling; with four processing point it can load at the same time 1 ~ 4 parts for processing; 12 movable hydraulic clamps were equipped inside the worktables, which can quickly and conveniently load and unload parts; drilling head's 12m/min rapid positioning; the spindle head adopts 3 different lengths quick-change drill chuck, which can be chosen by the drill length and thickness.
2. High precision machining: X/Y-axis is driven by AC servo motor ball screw driving system; power head and worktable are moving in a straight line rolling guide.
3. It adopts Guangzhou CNC GSK980MDc drilling system. This system has powerful function and can control 5 feeding axis with high control precision. Also equipped with Guangzhou CNC GS2000T series servo driving unit, Guangzhou CNC 110SJT servo motor with stable running and high precision position control.
4. Safe, reliable: when a table is loading and unloading the work-piece, the power head will not move to this area; numerical control system, electrical actuators, hydraulic components use brand-name imported parts.
5. It is equipped with automatic chip cleaner, cutting fluid adding automatically, also equipped with gas gun which can realize dust pneumatic blowing.
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including  Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.
We have high sincerity to do business with customers all over the world and establish good friendships.
