• Model NO.：COLO-L-02
• Heating Type：Gas,Fuel
• Max Work Piece Dimension：800*300*1600 L*W*Hmm
• Powder Spraying Speed：0.5 to 2.5m,Min Adjustable
• Power Supply：Electric
• Frequency：50-60Hz
• Filters：Polyester
• Filters Hang Type：Easy for Change
• Warranty：12months
• Transport Package：Negotation
• Specification：can be ordered
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：1 Line for One Month

Basic Info.

Model NO. COLO-L-02 Heating Type Gas/Fuel Max Work Piece Dimension 800*300*1600 L*W*Hmm Powder Spraying Speed 0.5 to 2.5m/Min Adjustable Power Supply Electric Frequency 50-60Hz Filters Polyester Filters Hang Type Easy for Change Warranty 12months Transport Package Negotation Specification can be ordered Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 1 Line for One Month

Product Description

aluminium profiles powder coating line

1.Advantages and characteristics:
1 integrated production process, can be arranged in a variety of stations on the assembly line, to meet production needs;
2.According to plant requirements, designed to meet the production needs of the pipeline;
3. Factory production cost savings, you can save a certain extent, the number of production workers to achieve a certain degree of automation, little upfront investment, high return.
2.Technical data

1	Product	Aluminum profile
2	Spraying type	Powder
3	Max work piece dimension	8000×300×1600  L×W×Hmm
4		Powder spraying V is 2.0m/min 0.5 to 3.5m/min adjustable
5	Heating typ Speed of technique for the production line Heating type e	Gas Fuel, coal heating  (According to the customer demand)
6	Working of production line	Powder spraying is continuous. Pretreatment is intermittent tank soaking.
7	Transportation type of work piece	Suspension conveyor
8	Dimension of workshop	See the layout
9	Effective height of workshop	More than7m
10	Productivity	About 400 tons per month (20hours per day, 28days

3.Powder coating system:
Pretreatment: Dipping pretreatment with overhead crane, or fully automatic spraying pretreatment
Conveying system: closed-circuit conveyor, power and free conveyor, multi-track conveyor, and so on
Oven: batch oven, combination oven, bridge curing oven, tunnel oven
Powder coating booth: stainless steel booth or coated steel booth
Powder recycling facility: mono-cyclone pulse recovery system or multi-cyclone pulse recovery system or pulse recovery system
Control system: PLC control, with or without touch screen
Spray gun and reciprocator: COLO brand, or other brands with same level performance.

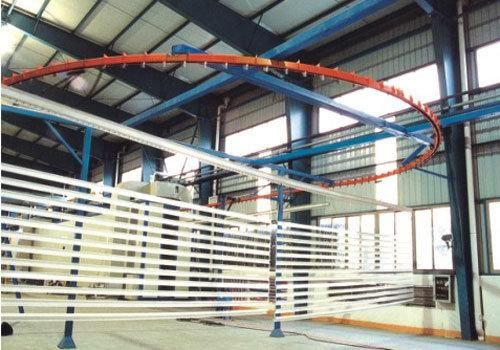

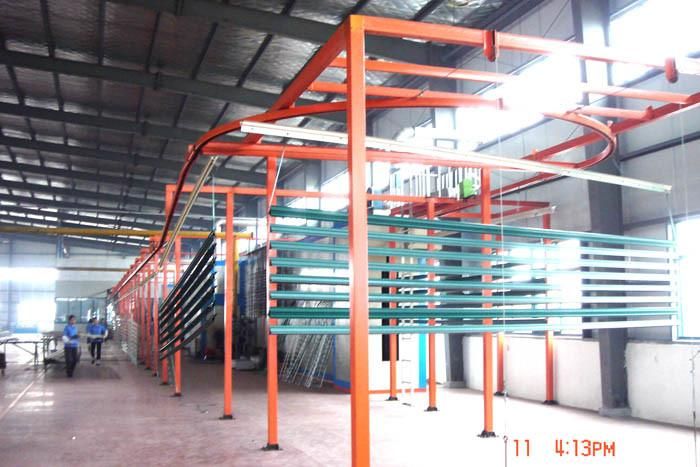

4.Picture Display





Any  question,pls contact sonne!
