Heavy Duty Portable CNC Cutting Machine for Various Shapes Equipment

Wuxi Longteng Welding and Cutting Equipment Co., Ltd.
  • After-sales Service：Online Servie, Field Service
  • Warranty：13 Months
  • Customized：Customized
  • Layout：X Y Z Axis
  • Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
  • Automatic Grade：Automatic

Base Info

  • Model NO.：HNT-2000
  • Power Source：Electric
  • Cutting Mode：Plasma Cutting
  • Transport Package：Plywood Package
  • Specification：2000x3400mm
  • Trademark：OEM
  • Origin：China
  • HS Code：8456401000
  • Production Capacity：100 Sets,Month

Description


Heavy Duty Portable CNC Cutting Machine for Various Shapes Equipment

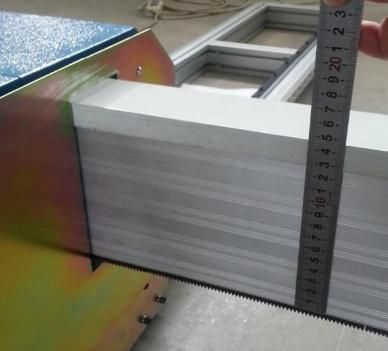

 Wider cutting area up to 2500x6000mm, stronger cross beam to avoid vibration.

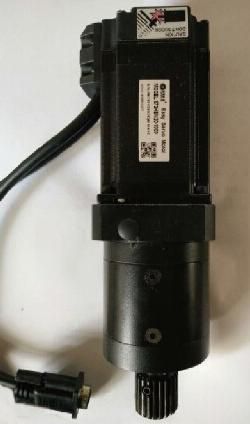

 Use two sets hybrid servo motors and gears to ensure higher running speed 6000mm/min
 Heavy Duty Portable CNC Cutting Machine for Various Shapes EquipmentHeavy Duty Portable CNC Cutting Machine for Various Shapes EquipmentBuilt-in auto torch height control, compact design, with anti-interference function, stable plasma cutting.

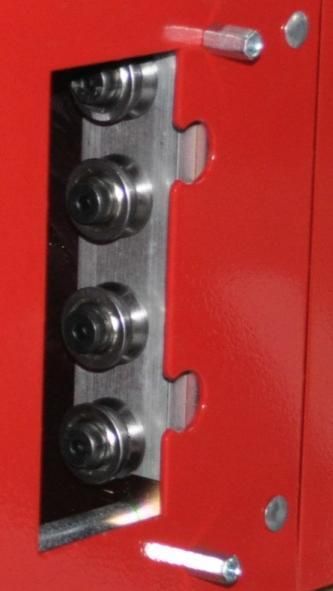

 Adopt 8 v-shape steel wheels to ensure smooth X axis moving, more durable spare parts
 Heavy Duty Portable CNC Cutting Machine for Various Shapes Equipment
IV. Numerical Control System Technical Description:
Model: HNP
1) 7'' colorful LCD display;
2) Film-cover operation key;
3) USB port supports program transfer;
4) 32M Memory for users' program;
5) Built-in shape library of commonly used figures;
6) Break-point & power-cut restoration;
7) Return to reference point;
8) Mirror image;
9) Two-axes straight line and arc interpolation;
10) Pause, forward, backward, and speed regulation while machine working.

V. Program software: FastCAM Professional Edition
Main functions:
  1. Draw the part or import DXF files a
  2. CAD Clean & File compression for quality cutting a
  3. Edit, Verify and Output NC code a
  4. Interactive & Automatic Nesting a
  5. Automatic Tool Path Programming a
  6. Common Cutting & Bridging a
  7. Bulk processing of files for volume & speed
This is a fully automated system with a high level of automation and a focus on saving time, plate and piercing. The ideal solution for high duty cycle machines where the user may get five different jobs with multiple parts for thicknesses.
Automatic 'EVERYTHING': Tool pathing, Pierce, Sequencing, Nesting, Cutlist;
Multi-job, Multi-part, Multi-plate mixed & Remant Nesting;
Improved material yield and smart cutting technologies including common cutting and 4 types of bridging (for various industries)..
Dramatic reduction in pierce.
A 50% reduction in programming time with automatic tool pathing.
Bulk features for programming speed-file import, editing, export, etc.

VI. Package Dimensions and Weights
Every Microbee Plus will be packed into 2 or 3 plywood cases.
ContentWooden casesDimensionNet WeightGross Weight
Central unit of CNC cutting machine1 case740X520X480 (mm)50KG60KG
Longitudinal rails, cross beam, oxy-fuel torch, cables and other accessories1 case4120X470X240 (mm) 110KG165KG
Plasma Power Source and Machine torch (Option)1 case
