Automatic Powder Coating Gun with Control Unit
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service:Yes
- Warranty:12 Moths
- Type:Powder Coating Machine
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO
Base Info
- Model NO.:F-1-A
- Condition:New
- Packaging:Carton,Wood Case
- Dilivery:3-5days After Receive The Payment
- Power Range:220V,110V
- Frequency:50Hz
- Operational Method:Manual
- Packing Dimension:44*44*55cm(W*H*D)
- Packing Weight:21kg
- Transport Package:Carton
- Specification:CE ISO
- Trademark:FF
- Origin:Zhejiang Hangzhou
- HS Code:8424899990
- Production Capacity:300sets,Month
Description
The parmater of the machine
MODEL | F-1-A powder coating machine |
Gun Weight | 500G |
Rated output voltage | 24VDC |
Input voltage | -200KV |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100K(adjustable) |
Pneumatic data of the gun
Maximum powder injection | 600g/min |
Polarity | negative |
Maximum input-air pressure | 10kg/cm |
Optimum input-air pressure | 6kg/cm |
Optimum input-air pressure | 4kg/cm |
Maximum water vapor content or compressed air | 1.4g/N m3 |
Maximum oil vapor content of compressed air | 0.1ppm |
Maximum compressed-air consumption | 13.2 m3/h |
Temperature range in use | -10 ºC+50 ºC |

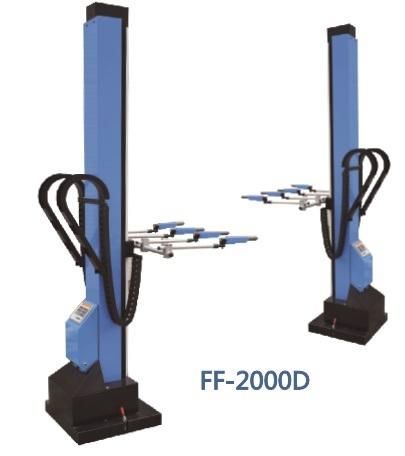

The gun match with the reciprocater and the control unit set in the control box for Automatic
powder coating job.

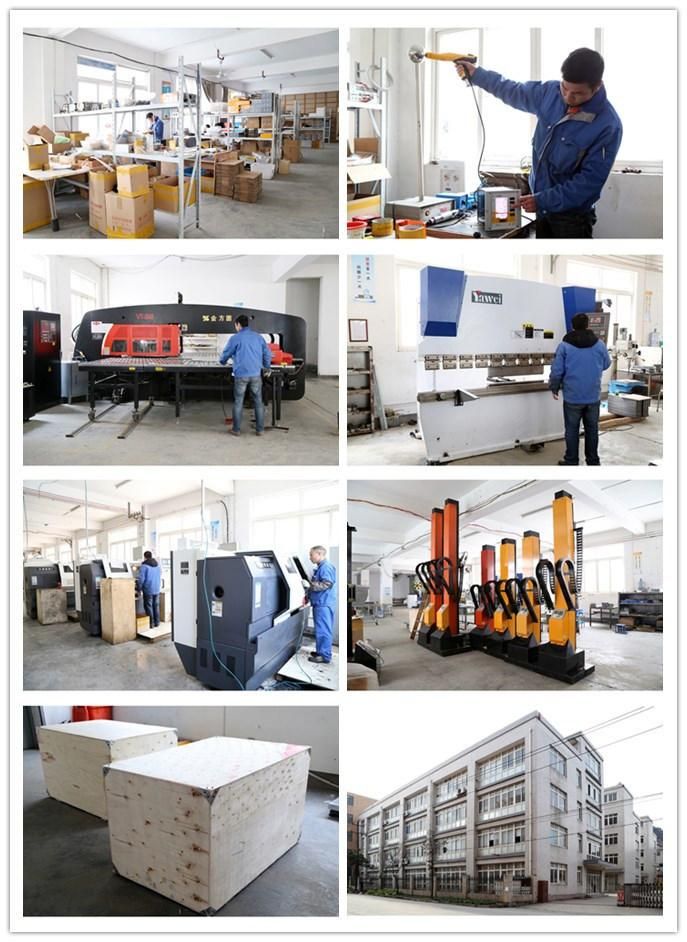

Factory View
Any furthermore information please contact us or inqury online.
