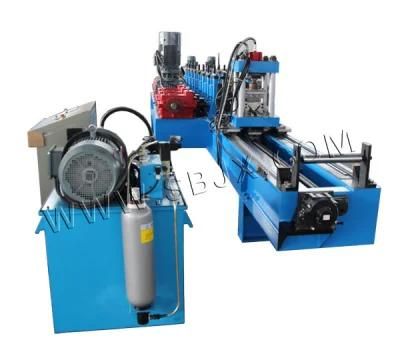

High Speed Angle Roll Forming Machine (up to 5mm)

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Color：Blue and Yellow
  • Speed：Max 30m,Min
  • Thickness：2.0-5.0mm
  • Main Motor Power：22kw
  • Transport Package：Suitable for Sea Packing
  • Specification：CE, SGS
  • Trademark：Saibo
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Basic Info.

Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Speed Max 30m/Min Thickness 2.0-5.0mm Main Motor Power 22kw Transport Package Suitable for Sea Packing Specification CE, SGS Trademark Saibo Origin Jiangsu, China HS Code 84552210 Production Capacity 300sets/Year

Product Description

High Speed Angle Roll Forming Machine (up to 5mm)
The production flow of equipment
De-coiler→ feeding & guide→roll forming→straighten→post track cutting →manual out table

Feeding & guide→roll forming→straighten→post track cutting
Feeding
Armed adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
Entrance table-guide: adjustable
Entrance width:35-130mm (according the final design)
Entrance and guide roller: diameter is ¢76mm, material is sae1045, HRC48-52° surface with chrome
High Speed Angle Roll Forming Machine (up to 5mm)
Forming Section
Profile steel thickness 2.0-5.0mm
Main motor power: 22Kw, AC motor, side motor to save space (Brand: Siemens which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:8stations +1 station of straighten
Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface
Shaft diameter: ¢85mm   material: SAE1045
Machine roll forming speed:0-30m/min
The min. Roll forming Speed: 0m/min
The maximal roll forming speed: 30m/min
Roll former has leveling bolts in the base for adjust the leveling
Machine base frame adopt H beam welding steel
In the main roll forming machine have 1 button for urgency stop if happen any malfunction.
Transmission: by gear box, joint with coupling, gear inside box structure is bevel gear
Machine stand adopt cast iron
High Speed Angle Roll Forming Machine (up to 5mm)

High Speed Angle Roll Forming Machine (up to 5mm)
Straighten device:
one station after roll forming,
Function: for revise the end product up and down/ left and right to straightness
Roller material: Roller material: GCR15 quenched 58°-62°finishing turning CNC
Adjust by hand wheel
To avoid accidents, the drive parts will be covered by protective cover

Post track cutting system
Cutting after forming: Cut the sheet after roll forming to required length
Cutting Type: hydraulic servo motor tracking cutting
Servo motor: 4kw
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic, 11KW with Storage tank
Working pressure: 25Mpa adjustable
Length measuring: Automatic encoder length measuring, brand: Omron
The cutting sequence is also contained and controlled by the same PLC program installed on the above.
Tolerance of length: 3000mm+/- 1.5mm

Hydraulic station:
Hydraulic power:11kw
Working pressure: 25Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
