• Model NO.：Ridge Cap Roll Forming Machine
• Advantage：Use Widely
• Condition：New
• Main Power：5.5kw
• Shanfts：55 mm Solid Steel
• Hydraulic Power：4kw
• Forming Speed：15-20m,Min
• Machines Weight：7100kgs
• Voltage：440V,60Hz,3phase
• Roller：CNC Process
• Control System：Mitsubishi PLC
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：Hangzhou City, Zhejiang Province
• HS Code：8455221000
• Production Capacity：10sets,Month

ItemSpecificationMaterialTypepre-painted galvanized steel sheet Thickness(mm)0. 4-0.7Yield strength(mpa)235 -345Roller material45#Chrome steelShaft diameter (mm)about 55mmWorking speed(m/min)About 1500-2000mm/minStep distanceAdjustable according to requirement Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurement EncoderControl mode Mitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power(kw)5.5KW    (Depend on final design)Hydraulic station power 4K W   (Depend on final design)Uncoiler's loading capacityMax. Capacity: 3000kgsWhole line sizeAbout 6700*1000*1600  (Depend on final design)Machine weightAbout 7000kgs
Components of machine:Decoiler1set   Feeding & guiding device1setMain roll forming machine1setPressing device1setHydraulic cutting system1setControlling system1setRun out table 1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Pressing--Hydraulic Cutting - Product to Run Out Table

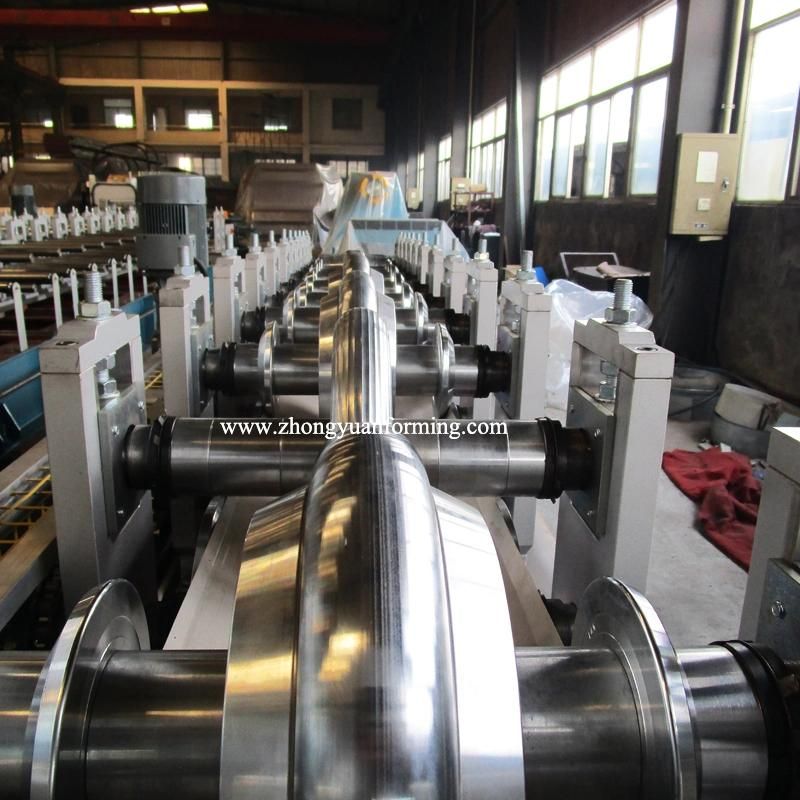

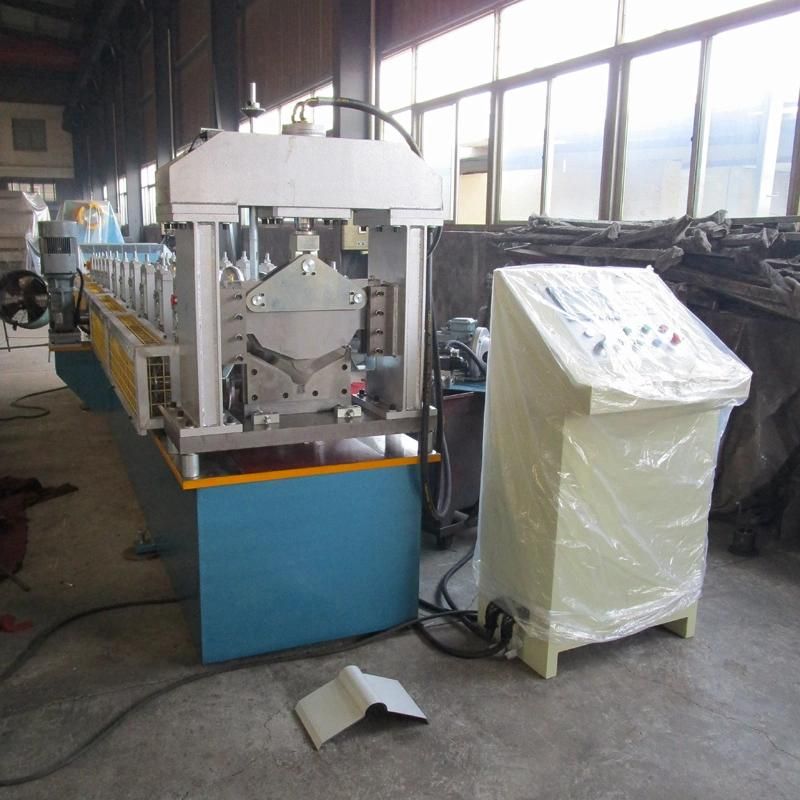

Machine's Overview:






About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.
