• Model NO.：MAC3-600
• Warranty：12 Months
• Customized：Customized
• Condition：New
• Stock Width(mm)：50-600
• Stock Thickness(mm)：0.3-4.5
• Line Speed(M/Min)：16-24
• Coil Weight(Kg)：5000
• Transport Package：Wooden Box
• Trademark：RUIHUI
• Origin：China, Dongguan

Product Description

Function instruction: uncoiling is to fix coil on the spindle of uncoiler, a supporting table to support coil Inner diameter,while working automatically, through material loop controlling instruction to make spindle uncoiling and loosing coilintermittently, equipped with coil diameter detection, to control uncoiling speed, ensure uncoiling line speed is uniform velocity, improved material loosing problem.

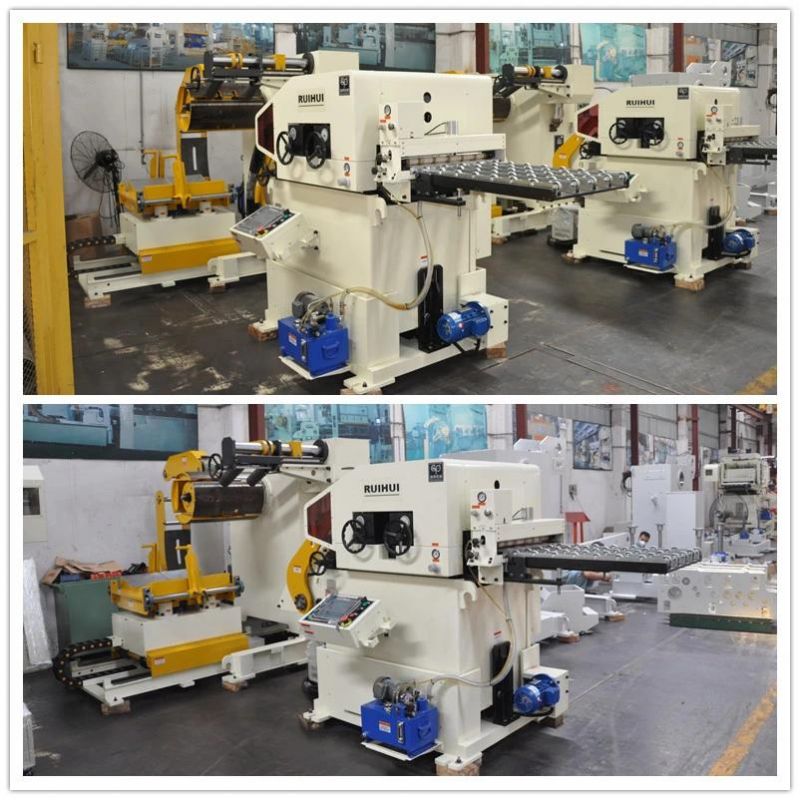

Detailed Photos

Product Parameters

70-80070-1000Stock Thickness(mm)0.3-4.50.3-4.50.3-4.50.3-4.5Max.Coil Weight(kg)50005000500070007000Max.Coil O.D.(mm)Φ1400Φ1400Φ1400Φ1400Coil I.D.(mm)Φ508Φ508Φ508Φ508Feed Length(mm)~500*~500*~500*~500*Max.Line Speed(m/min)16-2416-2416-2416-24Work Roll Number(piece)up 4 / down 3up 4 / down 3up 4 / down 3up 4 / down 3Feed Roll number(set)1111Main MotorAC4.4AC4.4AC5.5AC7.5Mandrel ExpansionhydraulichydraulichydraulichydraulicReel Motor(kw)2.22.22.23.73.7Power(v)3 Phase 220V/380V/50HZOperating Air(Mpa)0.490.490.490.49
Stock Thickness
(mm)0.3~0.840060080010001.07501.27006001.65904804301.85004203802.04303703302.33603202902.83702902502303.23002502202004.5160160150110Company Profile

Our Advantages

Why choose us?
1^st,We have a high level of technical research and development team;
2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3^rd, our philosophy: quality is the social responsibility;
4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5^th,We have a highly effective after-sales service team and get customer approval
