• Model NO.：TD - Anodizing
• Equipment Mode：Portable , Manual,Semi-Automatic,Full-Automatic
• Application：Aluminum Anodizing
• Usage：Anodizing
• Pre-Treatment Step：Ultrasonic,Electronic,Heating Degreasing
• Pre-Treatment Machine：Ultrasonic Clean Machine , Polishing Machine
• Exteranl Equipment：Rectifier , Filter , Water Chiller
• After-Treatment：Oven , Dry Machine
• Rectifier：380V 50Hz , 3pH
• Rectifier Spec：1000A 12V , 2000A 12V and etc.
• Material：PP , PVC , Ss Plate
• Crane Lifting：Electronic Hoist , Manual , Automatic
• After-Service：Free Spare Parts, Field Installation
• Transport Package：Plywood Package and Ocean Shipping
• Specification：Customized
• Trademark：TONGDA
• Origin：Linyi China
• HS Code：8543300090
• Production Capacity：5-10 Sets Per Month

Basic Info.

Model NO. TD - Anodizing Equipment Mode Portable , Manual,Semi-Automatic,Full-Automatic Application Aluminum Anodizing Usage Anodizing Pre-Treatment Step Ultrasonic/Electronic/Heating Degreasing Pre-Treatment Machine Ultrasonic Clean Machine , Polishing Machine Exteranl Equipment Rectifier , Filter , Water Chiller After-Treatment Oven , Dry Machine Rectifier 380V 50Hz , 3pH Rectifier Spec 1000A 12V , 2000A 12V and etc. Material PP / PVC / Ss Plate Crane Lifting Electronic Hoist , Manual , Automatic After-Service Free Spare Parts, Field Installation Transport Package Plywood Package and Ocean Shipping Specification Customized Trademark TONGDA Origin Linyi China HS Code 8543300090 Production Capacity 5-10 Sets Per Month

Product Description

China Automatic Gantry Anodizing Line for Aluminum Anodizing Plant

Aluminum Anodizing Technology
Anodizing (Anodic oxidation) is an electro chemical process in which an oxide (anodic)layer is chemically built on the surface of the metal.Now anodizing is a commonly usedsurface treatment, especially on Aluminum alloys after casting or extrusion for structuralor architectural applications.

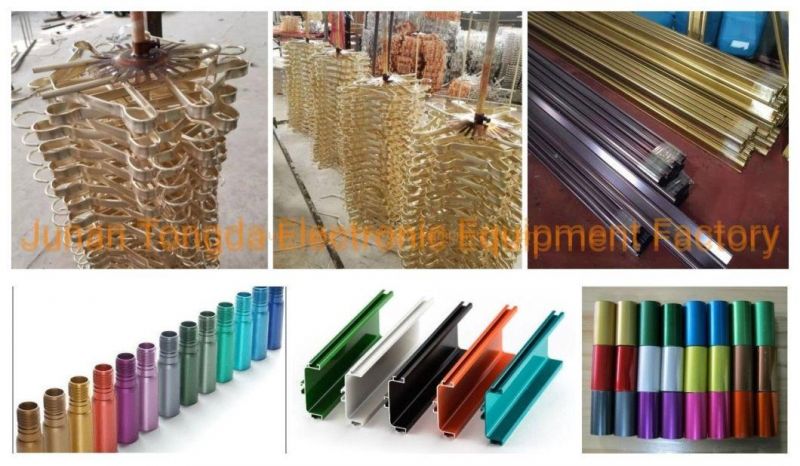

The anodizing process forms an oxide film, a hard, corrosion- and abrasion-resistant coating with excellent wear properties.This porous coating may also be colored using number of methods, thereby enhancing its
aesthetic value even as it protects the metal.


_{SPECIFICATION OF ELECTROPLATING EQUIPMENT:}
1. High quality raw material : 15mm PP(Polypropylene)/ PVC(Polyvinyl chloride) plate (Welcome customized )
2. The machinry frame : Steel body with anti-corrosion and resistant Epoxy painting .
3. Application for : Zinc plating ; Nickel plating ; Chrome plating ; Copper plating ; Gold plating ; Anodizing and etc.
4. Welcome customized : the electroplating line is non-standard , it is designed according to your products information .
5. Electroplating equipment mode :
    Portable mode : the Plating barrel / hangers carried by hand .
    Manual mode : there is crane lifting , pushing it by hand to up and down , go ahead and backward .
    Semi-automtic mode : there is a automatic crane lifting , control by remote to up and down , go ahead and backward .
    Full-automatic mode : there is a automatic crane lifting , control by PLC programme system to up and down , go ahead and backward .
6. Testing before delivery :
(1) Anti-leakage testing : We will fill the tanks with water after welding and before installation , the testing time last 72 hours .
(2) Runing testing : We will installed the equipment and operate it . Meantime , we will take the testing videos to the customer to confirm it .
7. Guarantee : one year ( We will replace the external equipment for free except the human damaged )
8. We are factory lied in Linyi city , Shandong province , China . We have the best price .
9. We have Export license , we can export to your area directly .
10. Surrounding equipments :

Pre-treatment equipment	Ultrasonic degreasing equipment , Washing machine , Vibrating polishing machine
After-treatment equipment	Oven , Dryer
External equipment	Rectifier , Filter , Chiller
Water cycle system	Input and output plastic pipes and value
Exhaust system	Air cover, ventilation pipe, Exhaust fan , Acid mist tower, Air box

EQUIPMENT DETAILS :
The electroplating equipment include the PP plating tank , Metal hangers , Crane lifting , Track and support , Anti-leakage PP plate , Anode plate holder , Copper plate , copper V-holder , PP V-holder and etc.

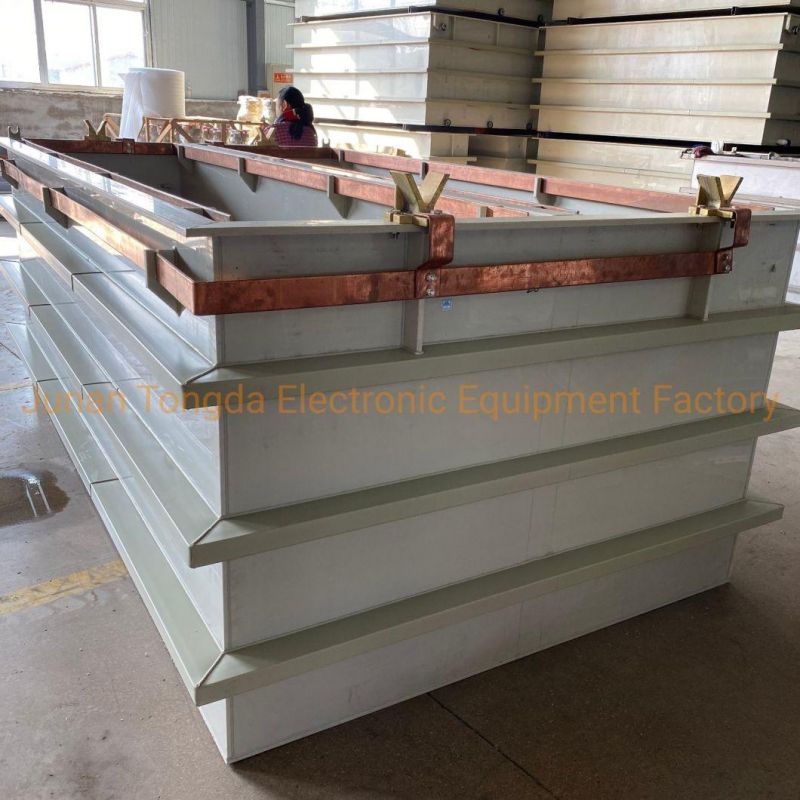

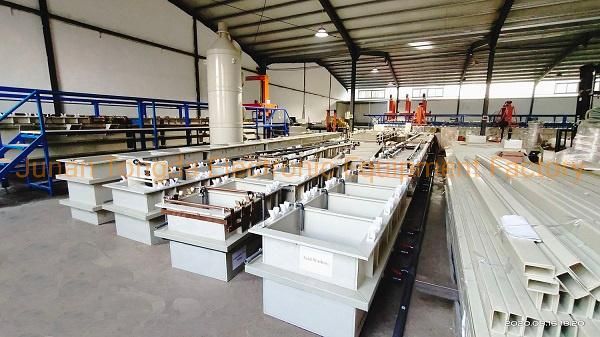

1.Plating tanks :
This is the main boday of electroplating equipment .

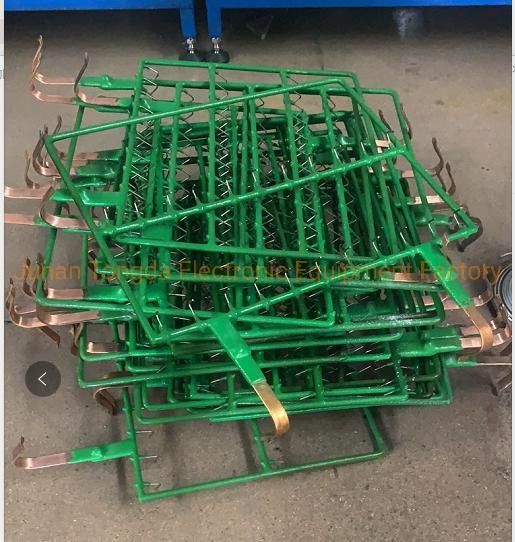

2. Titaium hangers and basket :
The hangers for anodizing plating line . it is used for Alumina anodizied .


3. Crane lifting :
The manual crane and automatic crane .


4. Machinery frame

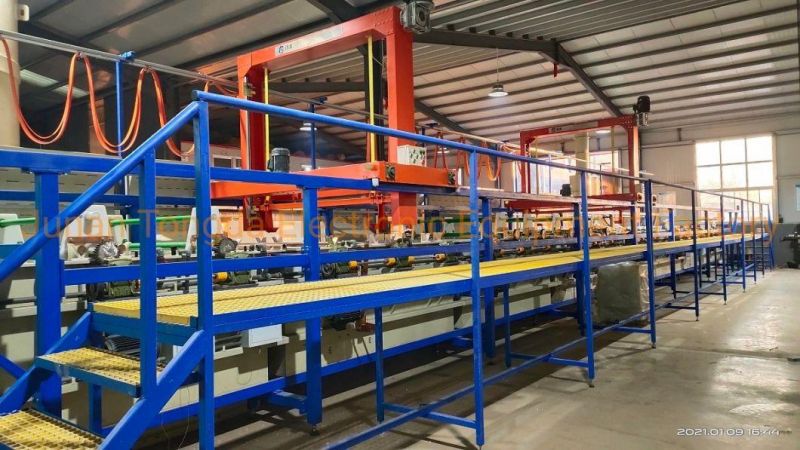

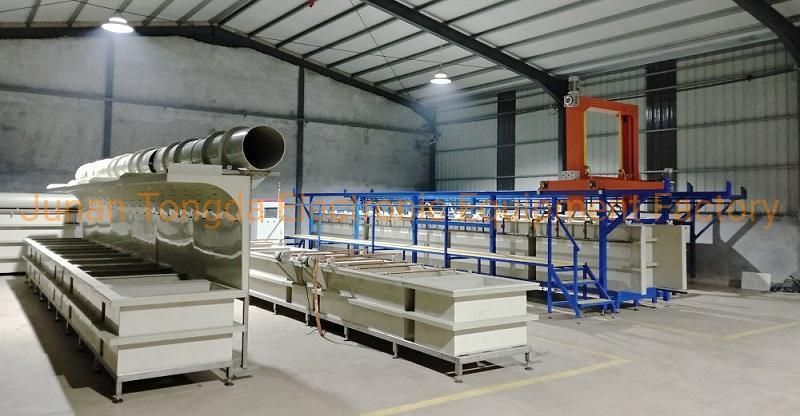

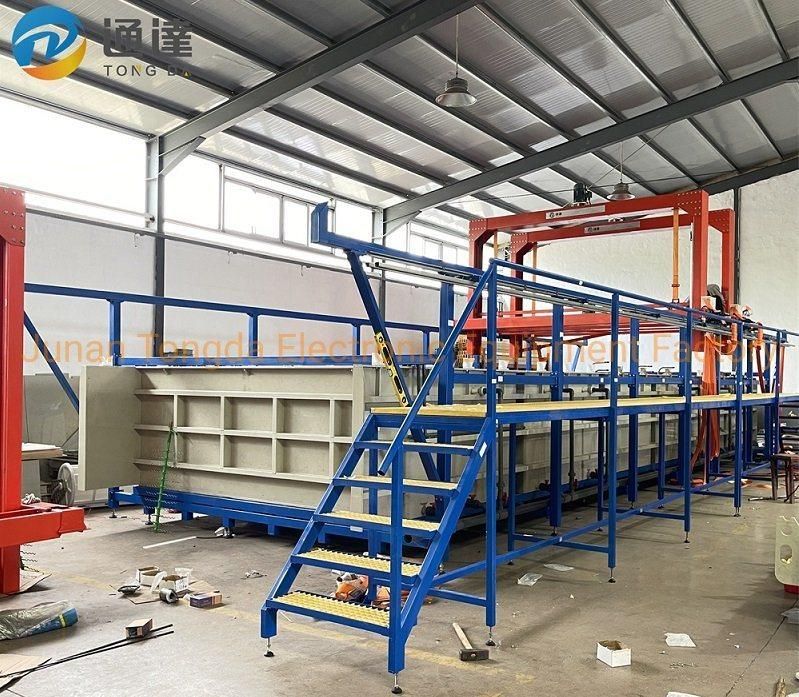

PRODUCTS PICTURES :

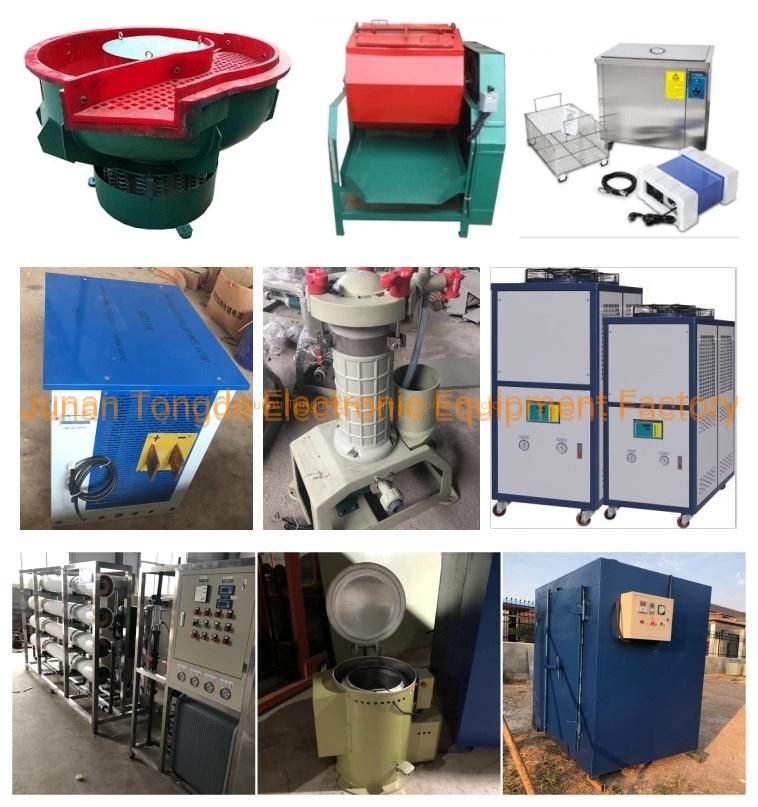

EXTERNAL AND AUXILIARY EQUIPMENT :

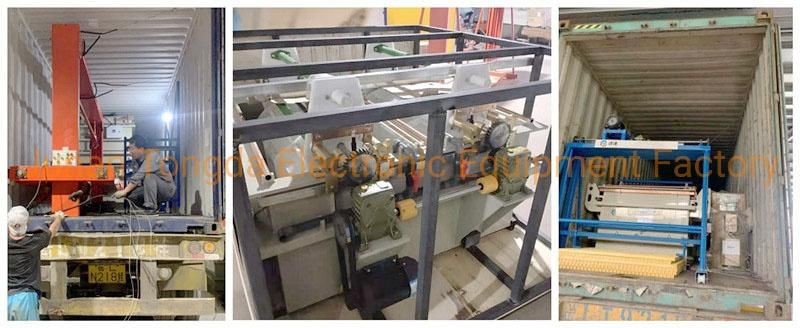

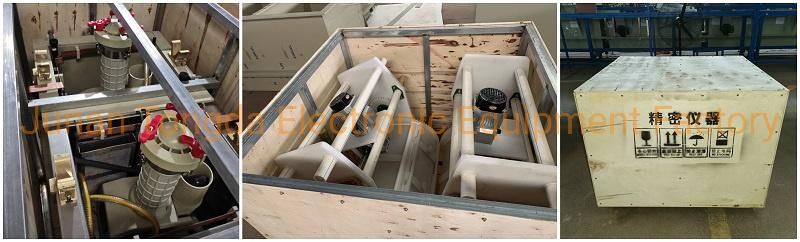

PACKAGE & DELIVERY :
Package mode : by plywood or shipping by container directly .
Shipping : Ocean shipping
Lead time : 30-35 working days


FACROTY AND SERVICE:
This is our factory JUNAN TONGDA ELECTRONIC EQUIPMENT FACTORY which lie in Junan County , Linyi City ,
Shandong province . We are professional electroplating equipment manufacturer , zinc , nickel , chrome , copper, gold and etc.
plating equipment , welcome your inquiry .


1. Advanced technology
We have more than 13years manufacture experience , More than 80% of high-quality employees have many years of production technology experience

2. Multiple Quality Control
Double testing of semi-finished and finished products in the production process to maximize the quality of all cleaning machine.

3. Independent research and innovation
1) Cooperate with major R&D institutions to develop innovative products in response to market demand .
2) Independent research and development, we will create exclusive cleaning equipment according to the special needs of customers to meet the customization needs of customers.

4. Service assurance
We provide 7*24 hours multilingual services(Chinese, English, French, Russian,Arabic, Japannese,Spaish).DMS equipments: online failure analysis and maintenance system
