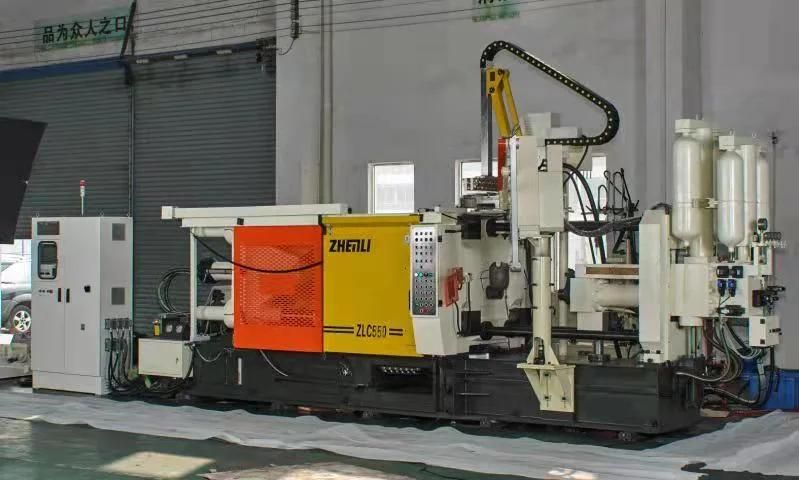

550t Zinc/Aluminum Die Casting Machine

Jiangmen Zhenli Machinery Co., Ltd.
  • Type:Cold Chamber Die Casting Machine
  • Structure:PLC
  • Machine Materia:Cast Iron
  • Weight:24500kg
  • Power(W):30kw
  • Oil Tank Capacity:1100L

Base Info

  • Model NO.:ZLC-550T
  • Machine Valve:Import From Yuken, Japan
  • Running Area:a Wide Varity of Casting Products
  • Transport Package:Wooden Plate
  • Specification:7500*2000*3100mm
  • Trademark:ZHENLI
  • Origin:Guangdong, China
  • HS Code:8454301000
  • Production Capacity:100 Pieces , Year

Description

Basic Info.

Model NO. ZLC-550T Machine Valve Import From Yuken, Japan Running Area a Wide Varity of Casting Products Transport Package Wooden Plate Specification 7500*2000*3100mm Trademark ZHENLI Origin Guangdong, China HS Code 8454301000 Production Capacity 100 Pieces / Year

Product Description

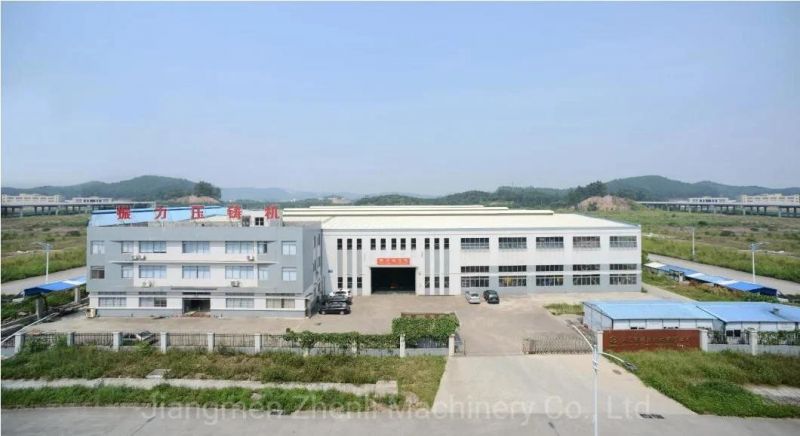

550t Zinc/Aluminum Die Casting MachineJiangmen Zhenli Machinery Co., Ltd.Located in Jiangsha Industrial District of Jiangmen City, China's famous motorcycle production base, Jiangmen Zhenli Machinery Co.,Ltd is a high-tech company specializing in R&D, design, production, and after-sale services. Since its foundation in 2002,after a decade's development and dedication, Zhenli has developed into a modern factory with imported CNC machining center, gantry milling, planer, grinder,and other advanced equipment. The main products of Zhenli include "ZL"series of hot chamber die casting machines, "ZLC"series of cold chamber die casting machines, servo die casting machines, real-time control die casting machines, magnesium alloy die casting machines, and peripherals,etc.

550t Zinc/Aluminum Die Casting Machine550t Zinc/Aluminum Die Casting Machine
550t Zinc/Aluminum Die Casting Machine550t Zinc/Aluminum Die Casting Machine]550t Zinc/Aluminum Die Casting Machine

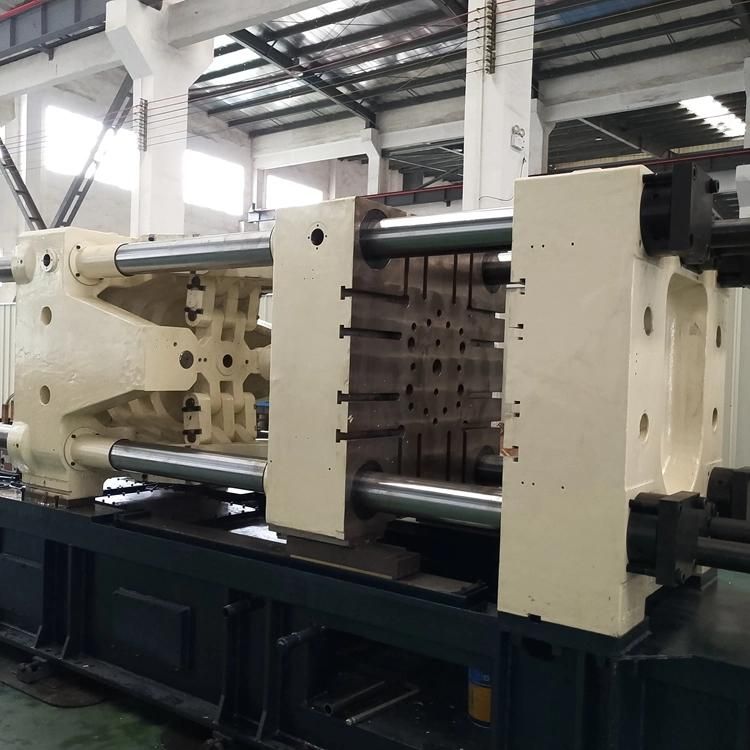

Clamping: durable and efficient clamping mechanism
1.The hinge clamping mechanism of the double toggle machine, the high-strength ductile iron template is equipped with CNC precision processing, which is strong and durable.
2.High tensile alloy steel guide post, durable and reliable.
3.High-precision electronic ruler position detection, precise control of the clamping stroke.
4.The mechanical toggle lubricates automatically to improve wear resistance.

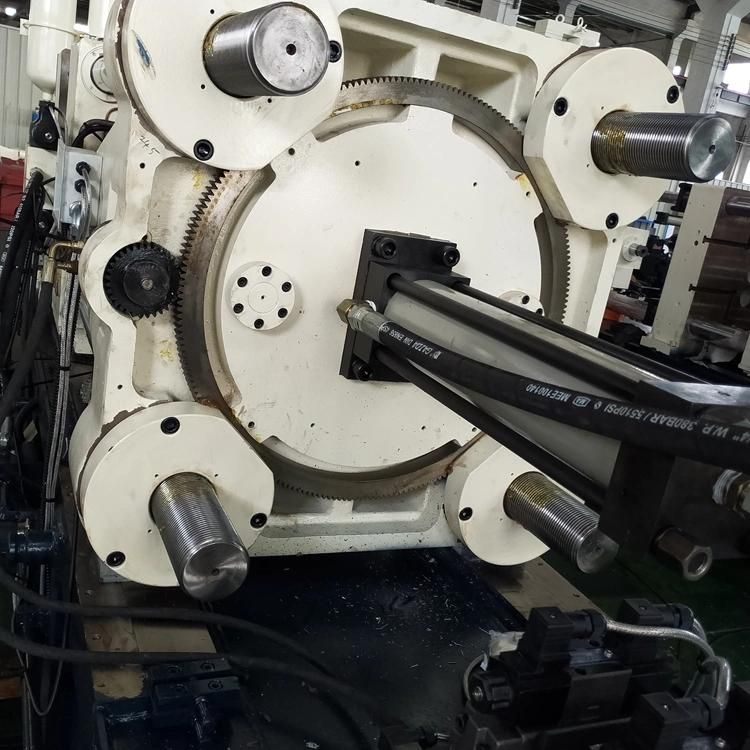

5.The hydraulic gear adjustment mechanism is stable.
6.Independently adjustable mold opening and pressure preparation system (need to purchase and customize).

The injection system is equipped with large diameter logic valves and precise flow control valves,improves injection
response,decreases oil pressure vibration and provides precise 4-stage shot adjustment.



Description for Electric & Hydraulic components

1.Siemens 200 control system with LED monitor(Germany).
2.Imported components are used for hydraulic units including YuKen (Japan), Rexroth(Germany) and Vickers (USA) to ensure the stability of  hydraulic system.
3.Hydraulic Pump is from Vickers (USA).

4.Sealing members are from Trelleborg(Sweden) and Fluorten (Italy).
5. Posts and columns are purchased from General Taiwan
 .
6.
Electric parts are purchased from France Schneider.


Standard Configuration :

Double-toggle lock mould structure, high strength spheroidal graphite iron casting plate.
Low pressure mold closing protection.
Mould adjustment device for gear train oil motor.

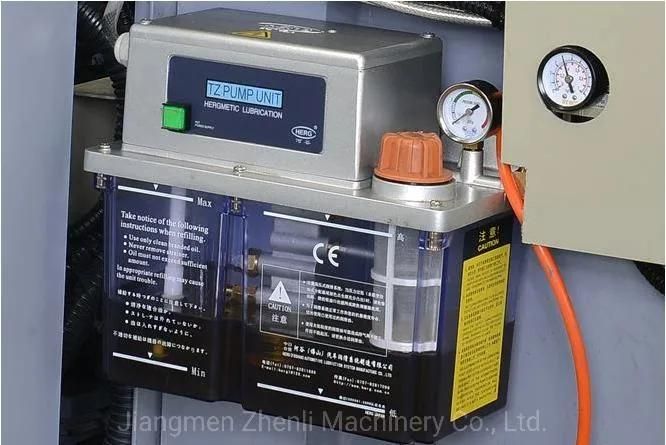

Concentrated automatic lubrication system.
Fast hydraulic ejector device and core pulling device.
4th level injection control system.
Independent piston 2-speed and pressure charging energy accumulator.
Hydraulic elevator sprue platform.
E-ruler control on mould opening and closing
Power saving high and low pressure twin pump hydraulic system.


Product Parameters
Technological Date
ITEMUNITZLC-550T
Locking ForcekN5500
Die Open Strokemm580
Ejector ForcekN225
Ejector Strokemm130
Die Height(Min.-Max.)mm300-800
Die Platen Size(HXV)mm1150*1305
Space Between Tie Barsmm760*760
Shot Positionmm0,-220
Shot Strockmm570
Casting Force(intensify)kN480
Plunger Diametermm70,80,90
AI)Injection Weightkg4.2,5.5,6.9
Casting PressureMpa124,95,75
Casting Areacm²400,523,662
40MPa)Casting Area Maxcm²1250
Chamber Flange Diametermm130
Chamber Flange Protrusionmm15
Plunger Penetrationmm230
Main Pump Driving MotorKW30
Working PressureMpa14
Oil Tank CapacityL1100
Machine Dimensions (L×W×H)mm7500*2000*3100
Machine WeightT21

FAQ


Q:Are you a manufacturer of a trade company?

A:We are a manufacturer and nd we have our own Export rights.



Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?

A:It 's no proplem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .



Q:How is your delivery time?

A:Generally ,we can dilivery the machine within 15-30 days after receiving your advance payment.

But it also depends on the iterm and the quantity of your order.



Q:How about the payment terms?

A:Generally ,the 30% T/Tdeposite ,the balance 70% T/T before delivering the goods.



Q:How about your warranty and after-sales services?

A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.

If any question and problems pls tell us with no hesitate.
