• Model NO.：RB
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Color：Customized
• Transport Package：Into Container or Wooden Case
• Specification：customized
• Trademark：Rainbow
• Origin：China
• Production Capacity：1000 Sets Per Year

Basic Info.

Model NO. RB Customized Customized Advantage Easy to Maintenance Condition New Color Customized Transport Package Into Container or Wooden Case Specification customized Trademark Rainbow Origin China Production Capacity 1000 Sets Per Year

Product Description

Machine Features

This Z94 series, new type C nail-making machines adopt plunger and oil pipe lubricating structure so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of asphalt felt nails and other special nail used for high speed coil nail welder and coil nailers.

Specification


Technical data	Units	Z94-6.5C	Z94-5.5C	Z94-4.5C	Z94-3.4C	Z94-2.8C	Z94-1.6C
Dia of nail Max.	mm	6.5	5.5	4.5	3.1	2.8	1.6
Dia of nail Min.	mm	3.4	3.1	2.8	1.8	1.2	0.9
Length of nail Max.	mm	203	152	100	75	50	25
Length of nail Min.	mm	100	70	50	30	16	9
Designed capacity	pcs /m	160-200	180-220	280	300	320	460
Motor power	kw	11	5.5	4	3	2.2	1.5
Weight( approx )	kg	5500	2600	2000	1800	1450	1200
Overall dimensions	mm	3250x1850 x1800	2600x1700 x1700	2200x1600 x1650	2000x1400 x1400	1700x1300 x1400	1500x1300 x1200

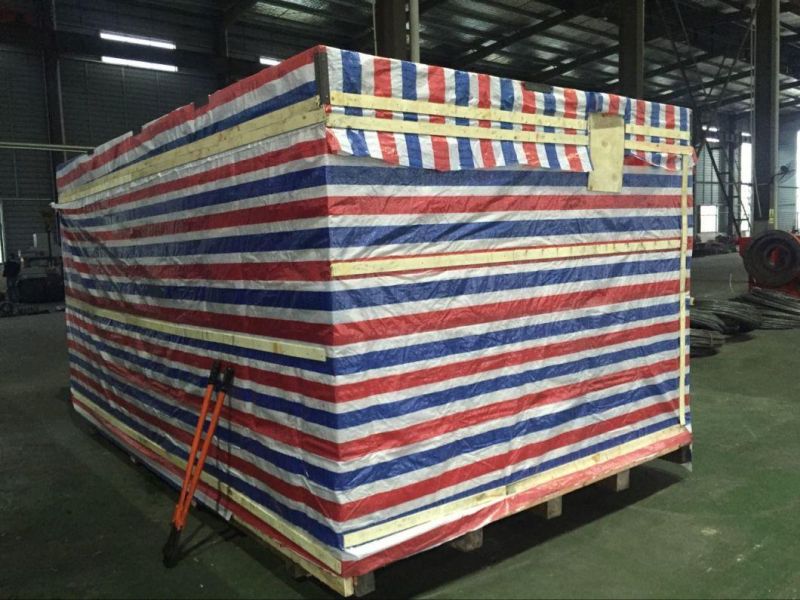

Package



Exhibitions in 2019



For more information about our nail making machine, pls feel free to contact me.
