• Model NO.：GW-50KG
• Certification：CE, ISO9001
• Type：Sand Casting
• Application：Melting Iron
• Melting Rate：50kg Iron ,Hour
• Rated Power：50kw
• Input Voltage：380V, 3phase
• Input Current：80A
• Input Frequency：50Hz,60Hz
• Cooling Way：Water Cooling System
• Associate Produts：Cooling Tower, Lining Material, Crucible
• Delivery Time：15-20 Days
• Installation Guiding：Yes
• Maintenance Service：Yes
• Office Oversea：Yes
• Contruction Drawing：Yes
• Hot-Sale Countries：South Africa, Bangladesh
• Transport Package：International Export Packing Standard
• Specification：1000*800*700mm
• Trademark：Hengyang
• Origin：China
• HS Code：8514200090
• Production Capacity：200sets,Month

Type/modelKGPS-GW-0.05T-50KWApplication melting all metals( gold , iron, brass, aluminum, copper ,steel, etc.)One set equipment
KGPS power supply cabinet-1 setFurnace body-1 set, capacitor-1 set crucible mold-1 piecewater cooling cables-2 pieces Instruction manual & drawing-2
 Optional associate productcooling tower, lining material, etc.Quality standard EC, ISO9001Manufacturer Foshan Hengyang Furnace Manufacturing Co., Ltd AddressNo.5, Street 2, Xinlian industrial zone, Lishui town, Nanhai district, Foshan city, Guangdong province, ChinaBrandHengyangDelivery time 15-20 days(if no one in stock)Warranty1 year After-sale serviceField installation, commissioning, and training-Yes
Field maintenance and repaire service-Yes
Technical document support( drawing, maintenance manual etc.)-Yes
Video technical support-Yes
Online support-Yes More ...If you look for turkey project, or wholeline product line support, please contact us for further information



Power OutputMelting timeElectricity consumption
per ton of material (KW)(Furnace capacity)(three-phase four-wire 50/60HZ)  (Minutes) Equipment powerIncoming
line voltageInto the
line currentMatching
transformerDC currentDC voltageIF voltageIF frequency SteelCopperAluminum (kw)(V)(A)(A)(V)(V)(Khz) GW--0.05T503808050100500750120-40750510650GW--0.1T100380160100200500750120-40700510640GW--0.15T160380256200320500750120-40650500630GW--0.25T200380320250400500750120-45650500610GW--0.35T250380400315500500750120-45650490600GW--0.5T3503805604007005007500.830-50630480570GW--0.75T50038080063010005007500.840-50620470560GW--1T8003801280100016005007500.740-5062046055075065610008089901480GW--1.5T1000380800125010005007500.740-60600450540750820125010109901480GW--2T140075011481800141499014800.545-6060044053075057418007079901480GW--3T20007508202500101099014800.550-70580430520GW--5T3000950114040001190126019000.350-80570420510GW--10T6000950228080002380126019000.350-90560410490GW--15T80009501520100001590126019000.350-90550400480GW--20T100009501900125001980126019000.2550-90530400470GW--30T150009502850200002980126019000.2550-90520400

Technical points

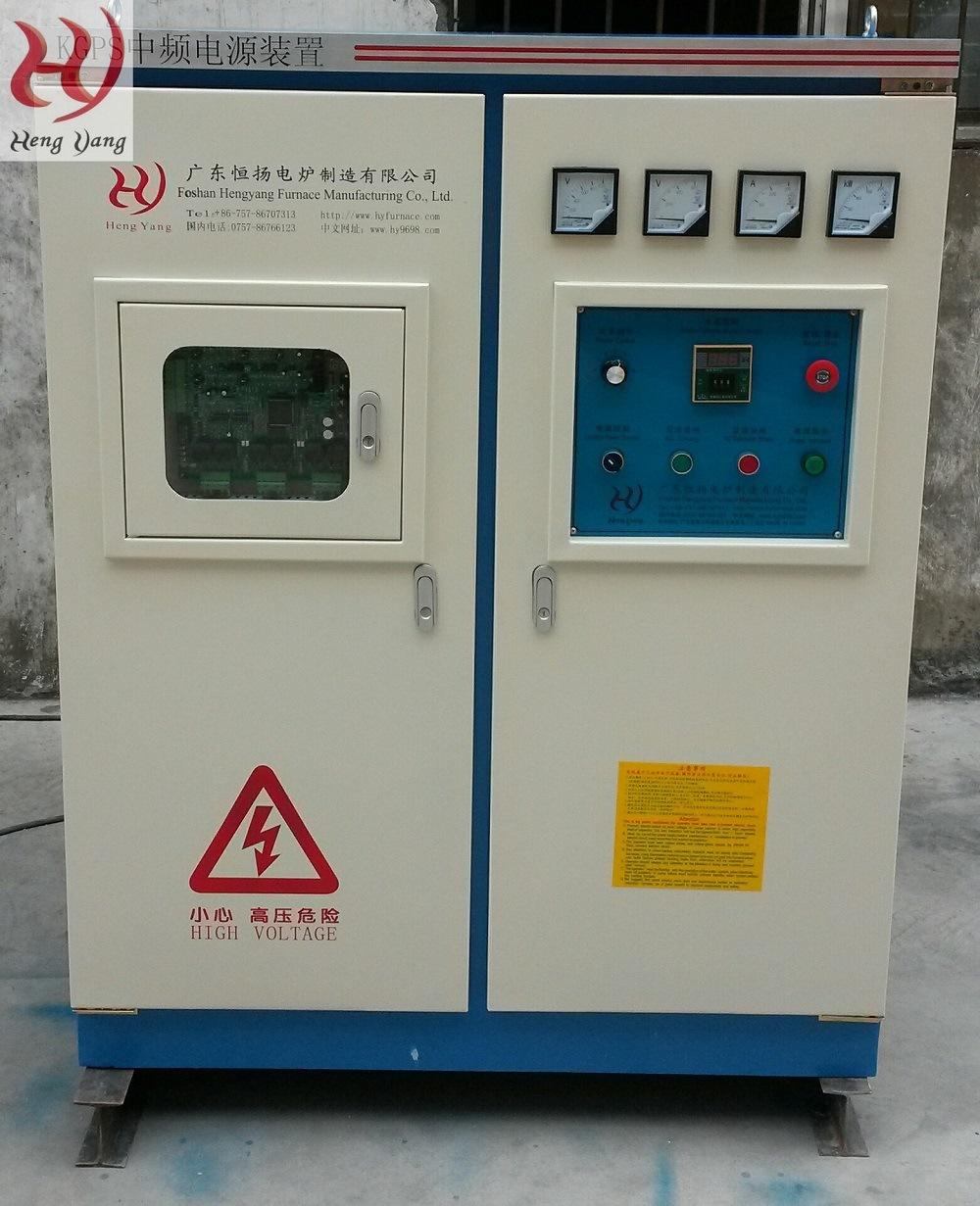

1) power supply cabinet

Safty Protection:
• Main circuit short circuit protection
• Main circuit phase loss protection
• Main circuit phase fault protection
• SCR over-current protection
• SCR overvoltage protection
• Cooling water temperature protection
• Low water pressure protection
• Furnace leakage protection
• Intermediate frequency power failure protection
• Intermediate frequency electric furnace fault protection rate and increase the life obviously



What make HENGYANG Power Supply Cabinet better than others?

1. Serious quality control-original Chinese brand-name electric components

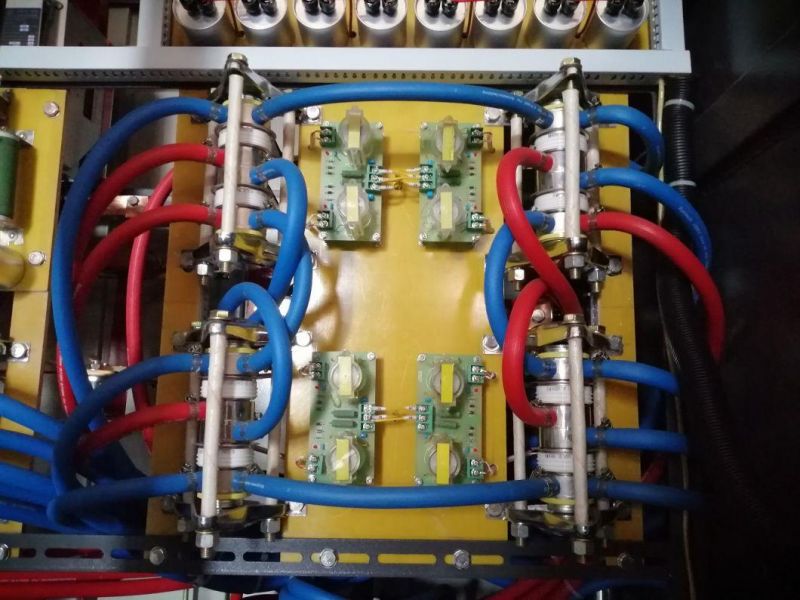

a. Thyristor :

Thyristors are purchased from the leading thyristor manufacturer in China. its thyristor have advantages of stable quality, strong current shock resistance, not easy to damage. It cost 20% to 30% higher than the same kinds of thyristor.

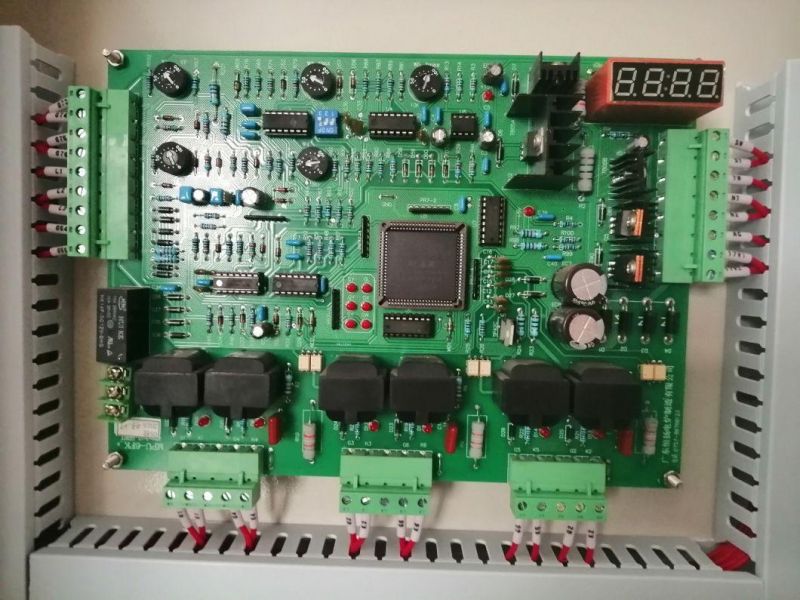

b. Parallel control circuit board:

HENGYANG control circuit boards are researched and manufacturing by HENGYANG independent research and development department. 20 years' researching and and improving keep them stand in a leading level in China. After manufacturing, the circuit boards will be tested by our professional quality inspection personnel one by one, to ensure its quality.



c. Circuit breaker:

The circuit breaker of HENGYANG power supply cabinet is purchased from a brand-name national manufacturing company, which was awarded as"China AAA enterprise", "Chinese famous quality products", "China top 100 enterprises" etc. So the quality of the circuit breaker is more reliable than others.

d. Capacitor box:

The capacitors are purchased from two domestic famous electric capacitor manufacturers. The capacitors have advantages of first class quality and strong over-voltage ability. It win consistent high praise from users.



Technical Support

1) Equipment design
Furnace will be customized to meet your production needing and environmental condition (maximum ambient temperate, humidity, altitude,etc) .

2) Drawings delivery
 Technical drawing will be send to the buyer after geting the deposite, so the buyer can build basic contruction before the furnace arrived.

3) Acceptance check before delivery
a. The supply of the inspection equipment complies with the scope of supply and technical specifications in the technical agreement.
b. Check the mechanical actions of the equipment.
c. Safety interlock of equipment and alarm function test.

4) Installation & debugging & worker training
a.  Cooperate with guidance to check the buyer installation work;
b.  Internal and electrical wiring connections between equipment;
c.  Site commissioning;, according to the actual equipment adjust to the best state;
d.  Direct buyer operating personnel to the correct use of operating equipment;
e.  Guidance on site security considerations;
f.  To guide the buyer maintenance personnel troubleshooting methods;
g.  Provide equipment specification;
