• Model NO.：LMQ-2200
• Quality：High Performance
• Price：Competitive and Best Price
• Type：Gantry Cutting Machinery
• Max. Diameter of Blade：2500mm
• Transport Package：Available Upon Request
• Specification：stone cutting machine
• Trademark：wanlong
• Origin：Quanzhou City
• Production Capacity：1, 000, 000 Tcts,Year

Basic Info.

Model NO. LMQ-2200 Quality High Performance Price Competitive and Best Price Type Gantry Cutting Machinery Max. Diameter of Blade 2500mm Transport Package Available Upon Request Specification stone cutting machine Trademark wanlong Origin Quanzhou City Production Capacity 1, 000, 000 Tcts/Year

Product Description

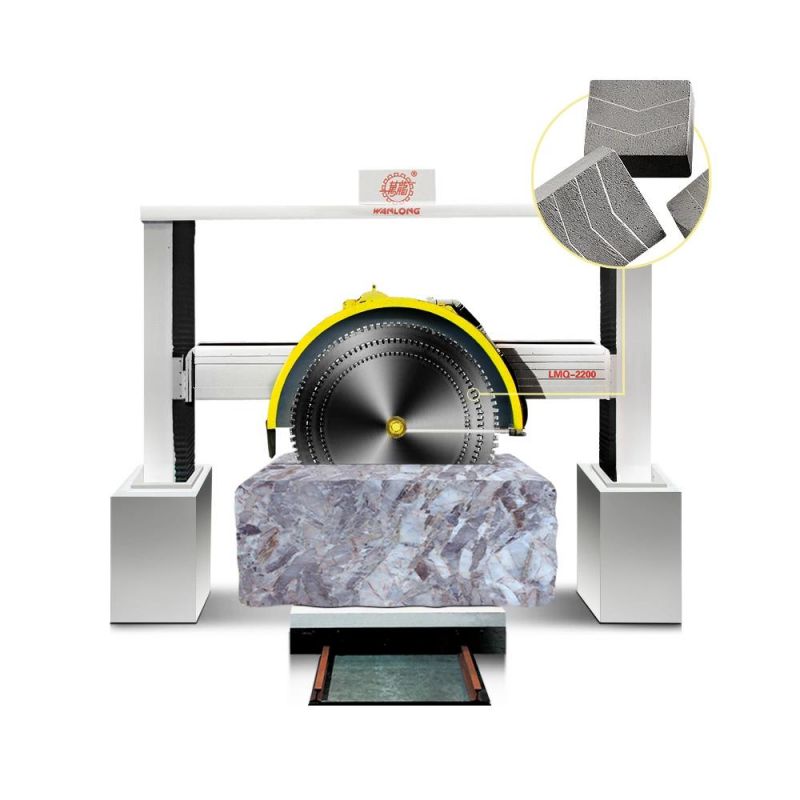

Gantry Cutting Machine (WL/LMQ-2200)

Technical parameters LMQ-2200
Max blade diameter: Mm ø 2200
Max cutting length: Mm 3300
Max cutting width: Mm 1500
Max cutting height: Mm 950
Main motor power: Kw 22
Water consumption: M³ /h 6
Overall dismension: (L*W*H)mm 6000*4700*6000
Approximate weight: Kg 9000


LMQ-2200/2500/3000 Gantry Cutting Machine
<figcaption>
Product Features:
The elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope Sliding speed of blade on the crossbeam is adjustable


		LMQ-2200	LMQ-2500	LMQ-3000
Max. diameter of blade	mm	2200	2500	3000
Max. No. of blades	pc	3	1	1
Recommended Blade Combination	mm	2200 1600  940	2500	3000
Recommend saw blade thickness	mm	6.5	8	8.0
Main motor power	KW	30	30	37
Table dimensions ( L x W )	mm	2000*2000	2000*2000	2000*2000
Max. cutting size (L x W x H)	mm	3200*2000*950	3000*2000*1100	2500*2000*1350
Overall dimensions ( L x W x H )	mm	6600*600*4800	6600*6000*4800	7000*4700*6000
Water consumption	m3/h	6	6	6
Approximate weight	Kg	9000	9000	9000
