• Model NO.：XKP350,XKP400,XKP450,XKP560,XKP560D
• Advantages：30% Energy Saving and Environmentally Friendly
• Package：Wooden Cases or Customozable
• Lead Time：20 Days
• Warranty：2 Years
• Transport Package：40gp Container
• Specification：3-20 tons per day
• Trademark：HVST
• Origin：China
• HS Code：8477800000
• Production Capacity：200 Set,Month

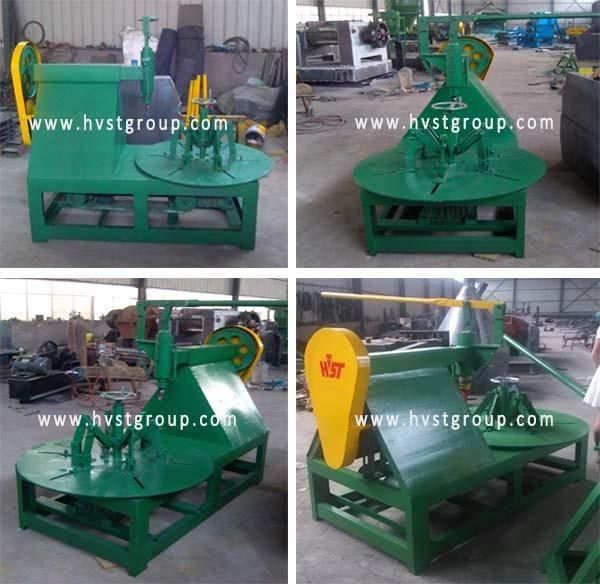

Name

Motor   power

Weight

Capacity

Tire   specification

Tire   circle cutter

4kw

650kg

40pcs/h

650-1200mm

(Both   reinforced and nylon tires)

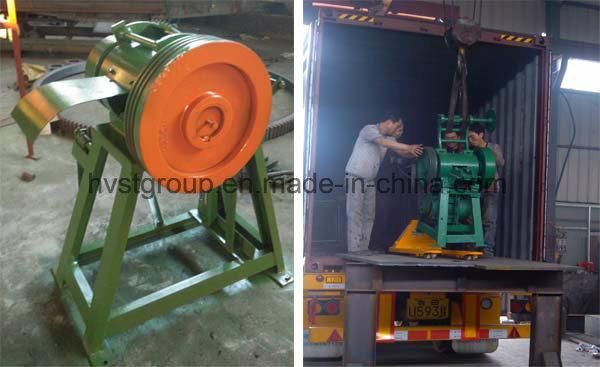

2. Rims separator is used to separate the steel rims around the tire to avoid the harm to the machine.

Name

Motor   power

Weight

Capacity

Rims   separator

7.5kw

1300kg

100pcs/h

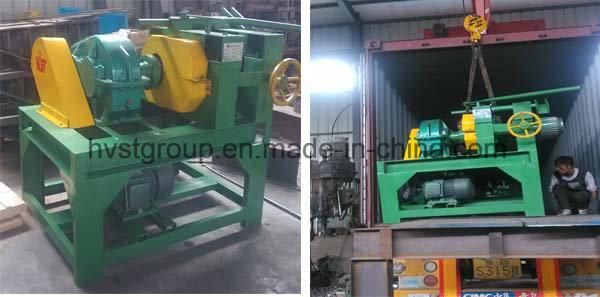

3. Tire strip cutter is used  to cut the tire cirlce into strips 5x8 cm .

Name

Motor   power

Weight

Capacity

Cutting size

Tire strip cutter

4kw

850kg

2.5t/h

5x8cm

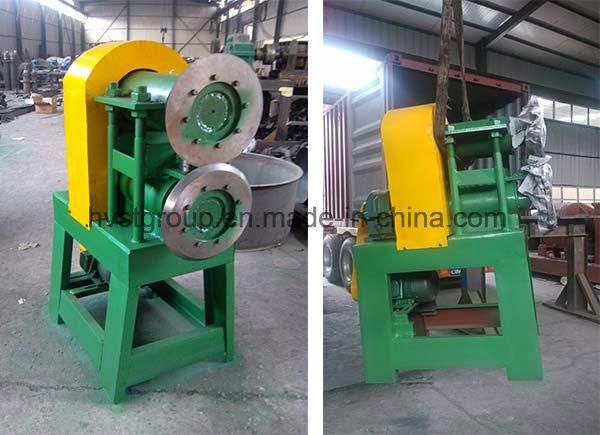

4. Tire slice cutter is used  to cut the strips into small chunks about 3.5 cubic centimeter.

Name

Motor   power

Weight

Capacity

Cutting size

Tire slice cutter

4kw

800kg

0.8t/h

3x5x8cm

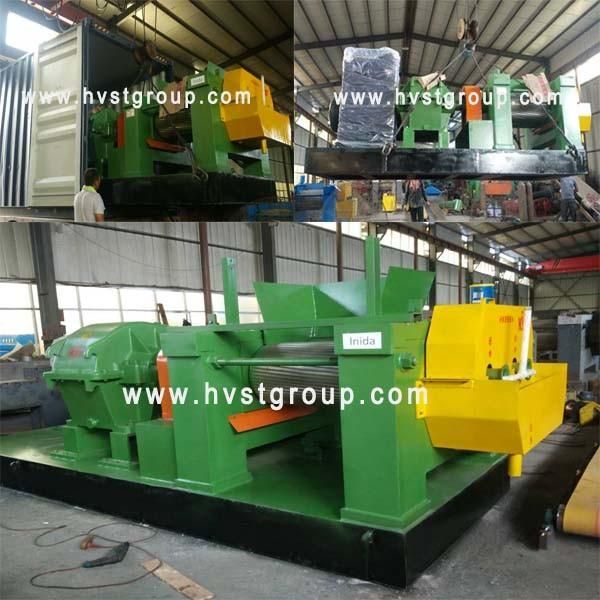

5. Rubber crusheris used to grind the chunks into smaller mesh powder through the vibrating screen as you need.

Advantages of rubber crusher machine:

1. Crusher roller speed ratio: Ours is 1: 2.5, while the old type roller speed ratio is 1: 1.38.
2. Roller structure: Our two rollers are both grooved, which increase the friction and then improve the output, while the old type is one with groove, and the other is smooth.
3. Roller material: The roller is made by Welding wear resistant alloy materials, 5Cr6MnMo. We can offer you 3 years warranty of the roller. While the old types machine use cast iron to make the rollers, very easy to break or crack in two .
4. Machine feature: Our machine is energy saving 1/3. For example, producing 1T powder, our machine electricity consumption is only 150°, while their electricity consumption is about 250- 280° in making 1T powder.
5. Bearing: Our machine use rolling bearing, there are 8 pieces bearing inside, while the old machine use the slide bearings ( bush) , which is not as good as ours.

Auxiliary equipment:
Magnetic separator:To separate the scrap steel from rubber powder;
Main feeder:To convey the big sizes rubber granules into rubber crusher;
Vibrating screens:To separate the fine rubber powder from bigger sizes;


FAQ:

Q1,Are you a factory or a trading company?
A.We are a manufacturer with 30 years production experience in tire recycling plant and nail making machines.We have export license, we can offer you the factory prices.

Q2.Can you guarantee the capacity as you mentioned ?
A.Definitely yes, the grooved two rollers are specially designed to increase the output and ensure the working efficient.

Q3, are you sure the final rubber powder can be completely clean out of wire steel or nylon ?
A.The final powder purity can reach 99.9%.We have magnetic separator which can separate the wire steel from the rubber powder.
