• Model NO.：Screw making machine
• Warranty：24 Months
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Voltage：380V 50Hz 3p, Customized
• Power(W)：0.75-15kw
• Weight：0.6t-11t
• Screw Diameter：2-10mm
• Screw Length：5-320mm
• Color：Green(or Customized)
• Keyword：Gypsum Screw Making Machine
• Transport Package：Sea Worthy Wooden Case or as Required
• Specification：Making different sizes of screws
• Trademark：Huarui
• Origin：China
• HS Code：8462490000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. Screw making machine Warranty 24 Months Customized Customized Advantage Work Flexible Condition New Voltage 380V 50Hz 3p/ Customized Power(W) 0.75-15kw Weight 0.6t-11t Screw Diameter 2-10mm Screw Length 5-320mm Color Green(or Customized) Keyword Gypsum Screw Making Machine Transport Package Sea Worthy Wooden Case or as Required Specification Making different sizes of screws Trademark Huarui Origin China HS Code 8462490000 Production Capacity 300 Sets/Month

Product Description

Screw Cold Heading Machine, Gypsum Screw Making Machine

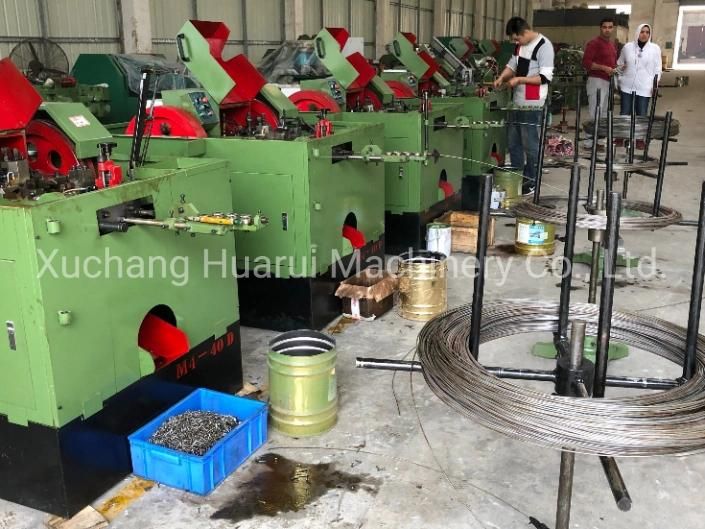

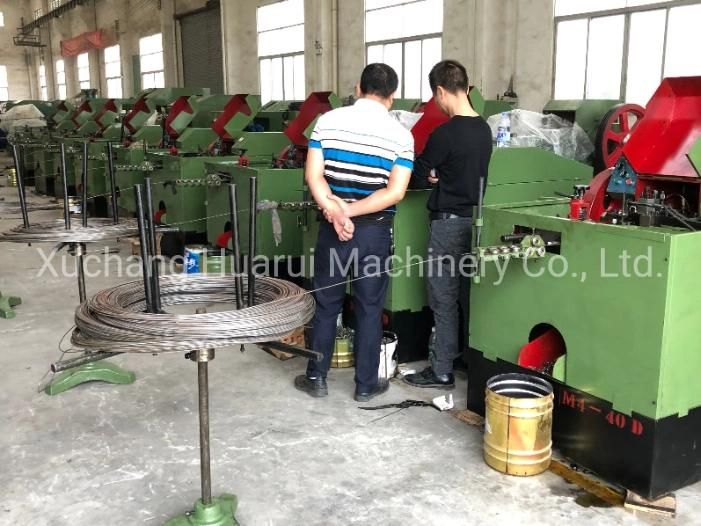

1. COLD HEADING MACHINE

This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.

Main technical parameter:

Model	Max. Screw Dia (mm)	Max. Screw length (mm)	Capacity (pcs/min)	Motor (kw)	Weight (Ton)	Overall size (m)
M3-18A/B	3	18	160-180	0.75/0.37	0.6	1.3*0.75*0.9
M3-28A/B	3	28	160-180	0.75/0.37	0.6	1.3*0.75*0.9
M4-28B	4	28	120-160	1.5/0.37	0.97	1.5*0.9*0.9
M4-28D	4.5	28	180-200	1.5/0.37	1.2	1.6*1*1.2
M4-40B	4	40	120-150	1.5/0.37	0.97	1.5*0.9*1
M4-40D	4.5	40	180-200	1.5/0.37	1.2	1.6*1.1*1.1
M5-40B	6	40	120-150	2.2/0.37	1.8	1.8*1.1*1.1
M5-60B	6	60	110-140	2.2/0.37	1.8	1.8*1.1*1.1
M5-80B	6	80	80-100	2.2/0.37	1.9	2*1.1*1.2
M5-100B	6	100	60-80	3/0.18	2.1	2.4*1.2*1.2
M5-120B	6	120	50-70	3.6/0.37	2.3	2.8*1.3*1.3
M6-60B	8	60	80-110	4/0.37	2.8	2.3*1.3*1.3
M6-100B	8	100	60-90	4/0.37	2.7	2.3*1.3*1.3
M6-120B	8	120	60-70	4/0.37	3	2.4*1.3*1.4
M6-170B	8	170	40-70	4/0.37	3.7	3*1.3*1.5
M6-200B	8	200	40-55	4/0.37	3.7	3*1.3*1.5
M8-120B	10	120	50-90	5.5/0.37	4.6	3.4*1.5*1.5
M8-130B	10	130	50-90	5.5/0.37	4.6	3.4*1.51.5
M8-130C	10	130	50-90	5.5/0.37	4.6	3.4*1.51.5
M8-150C	10	150	40-50	5.5/0.37	5	3.5*1.7*1.7
M8-200B	10	200	25-60	7.5/0.37	6	3.8*1.6*1.7
M10-120B	12	120	40-70	11/0.75	7	3.3*1.71.7
M10-170C	12	170	40-60	11/0.75	7.5	4.2*1.81.7
M10-220C	12	220	35-60	11/0.75	7.5	4.2*1.81.7
M10-250C	12	250	30-45	11/0.75	8.5	5*1.8*1.7
M10-300C	12	300	25-35	15/0.75	9	5*1.9*2.1
M10-360C	12	360	20-30	15/0.75	12	6.7*2*2.6
M12-150C	14	150	40-50	15/0.75	10	3.9*1.9*1.8
M12-250C	14	250	35-50	15/0.75	11	5.3*2.2*1.9
M14-150C	16	150	40-50	11/0.75	10	4.5*2.2*2.15
M14-250C	16	250	35-45	15/0.75	11	5*2.2*2.15

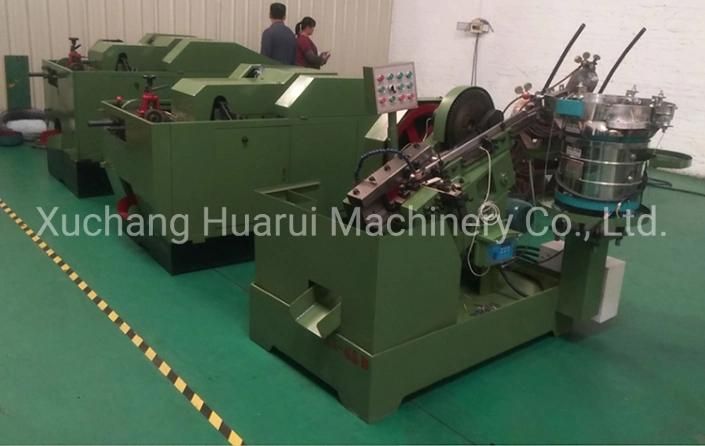

2. THREAD ROLLING MACHINE

This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.

Thread rolling machine is portable, flexible, high efficiency and has some irreplaceable advantages compared with similar equipment, avoid the limit of lathe, drill or hand tapping, save time, labor, not easy to rotten teeth, screw tap not easy to break off.

The machine is easy to operate, convenient to maintenance, which greatly decrease the technical requirements for workers.
Main technical parameters:

Model	Max. Screw Dia (mm)	Max. Screw length (mm)	Motor (kw)	Capacity (pcs/min)	Weight (Ton)	Overall size (m)
R3-20A	M2.6	20	1.1	350	0.3	1.1*0.53*1.2
R3-20B	M2.6	20	1.1	350	0.3	1.1*0.53*1.2
R4-25A	M4	25	1.5	320	0.45	1.3*0.63*1.32
R4-25B	M4	25	1.5	320	0.45	1.3*0.63*1.32
R4-40A	M4	40	2.2/0.37	280	0.97	1.5*1.15*1.35
R4-40B	M4	40	2.2/0.37	280	0.97	1.5*1.15*1.35
R5-55B	M5	55	3+0.37	160	1.2	1.6*1.35*1.7
R5-65A	M5	65	3+0.37	130	1.3	1.75*1.4*1.65
R5-65B	M5	65	3+0.37	130	1.3	1.75*1.4*1.65
R6-60A	M6	60	4/0.37	180	1.5	1.7*1.65*1.3
R6-60B	M6	60	4/0.37	180	1.5	1.7*1.65*1.3
R6-100B	M6	100	5.5+0.37	110	1.9	2.7*1.3*1.3
R8-80B	M8	80	5.5/0.37	110	1.8	2.1*1.55*1.3
R8-100B	M8	100	7.5+0.37	100	2.1	2.7*1.7*1.3
R8-120B	M8	120	5.5	100	2.1	2.4*1.8*1.4
R10-120B	M10	120	7.5	80	1.8	2.35*1.95*1.4
R12-120B	M12	120	11	60	3	2.45*2*1.45
R12-160B	M12	160	13	60	3	2.45*2*1.45
R12-220B	M12	220	15	50	3.5	2.5*2*1.45
R16-120B	M16	120	15	50	3.8	2.5*2.1*1.45
R16-160B	M16	160	15	50	4	2.5*2.1*1.45
R16-220B	M16	220	15	45	4.8	3.7*1.9*1.7

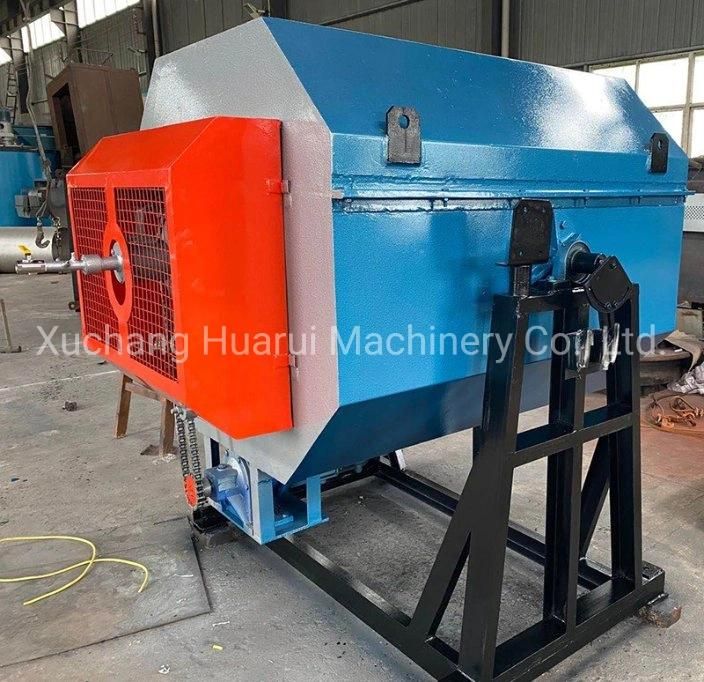

 3. HEAT TREATMENT FURNACES(capacity can be 80-200kg per hour, mesh belt furnace can be reach to 3ton per hour)

 Function:The furnace is mainly used for quenching, tempering, annealing, and other heat treatment of bicycle parts, sewing machine parts, standard parts, steel ball bearings, rollers, nails, screws and other small parts.

The furnace has the characteristics such as: good uniformity of furnace temperature, simple operation, simple maintenance, low energy consumption and energy saving.

Quenching furnace,
Available models
RGR30-9, 30KW (80-90kg/load),
RGR45-9, 45KW (120-130kg/load),
RGR60-9, 60KW (180kg/load)

Tempering furnace
Available models
RJ2R-24-7, 324KW (100-130kg/load),
RJ2R-36-6, 36KW (150-200kg/load),

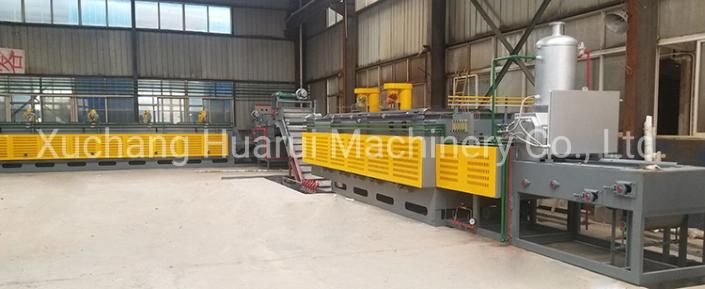

Mesh Belt furnace
Available models
RCW-2600*300*60, 60KW quenching, about 100kg/h for quenching
RCW-3700*300*80, 75KW quenching, 150-170kg/h for quenching
RCW-4700x300x80, 90KW quenching, about 200kg/h for quenching
RCW-4700*400*80, 120KW quenching, 250-300kg/h for quenching

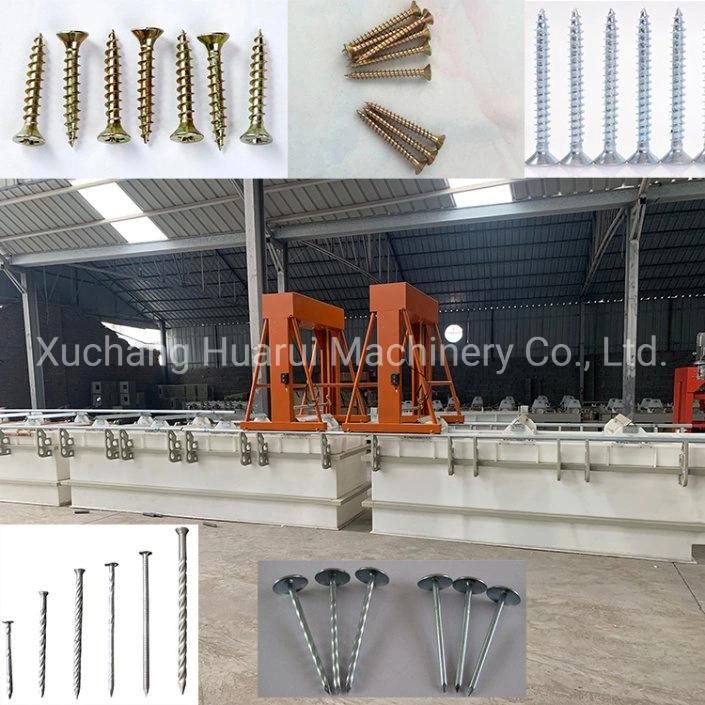

 4. ELECTRIC GALVANIZING LINE(capacity can be from 150kg per hour to 5tons per hour according to your needs)

Function: for galvanizing all kinds of nails or screws to make the nails or screws more bright and anti-rust.

This equipment can be customized according  to the capaccity that you want

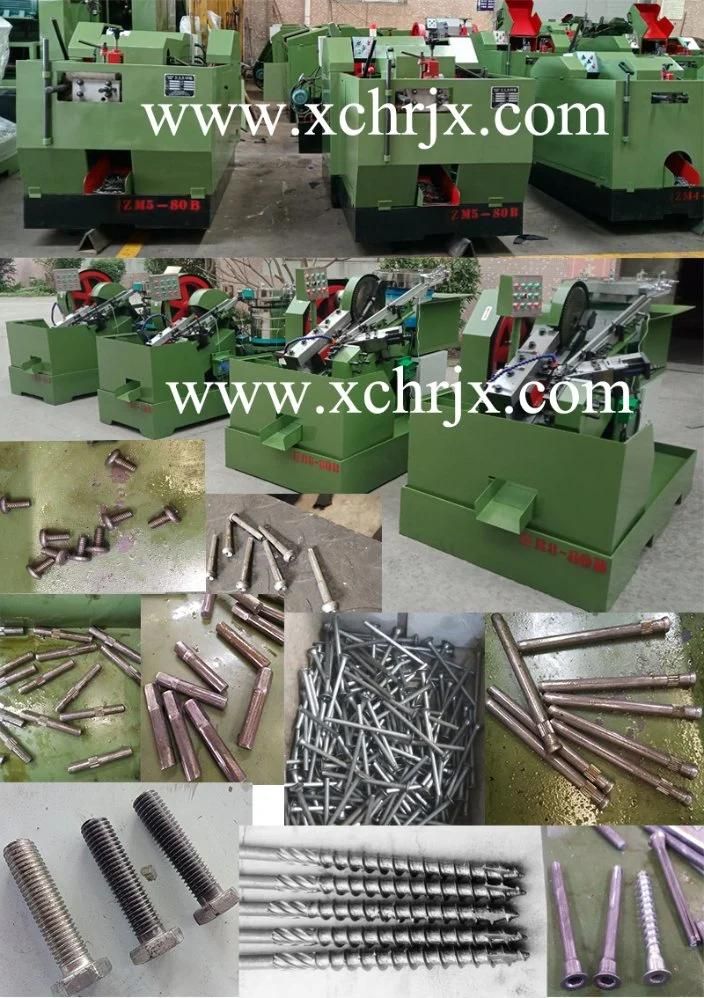

Machine pictures and Finished screws

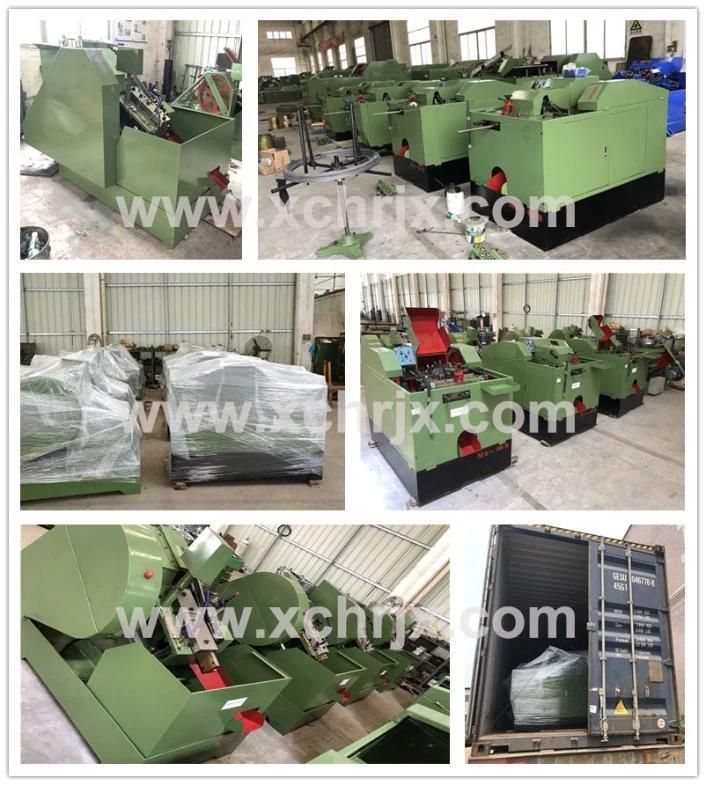

Packing and delivery



After - sales service

1.All products purchased in our company are guaranteed to keep in good repair for two years. If quality problems happen in guarantee period, our company will maintain for free.

2.Before sending the machine, we will test and adjust, so you can use directly when you get it. Operation video & instruction will be sent to clients, to help them use the machines better.

3. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.

4. Any problems occur while using, professional advice will be offered.

5. All kinds of frequently used parts are supplied all the year round.

6. 24 hours on line service.
