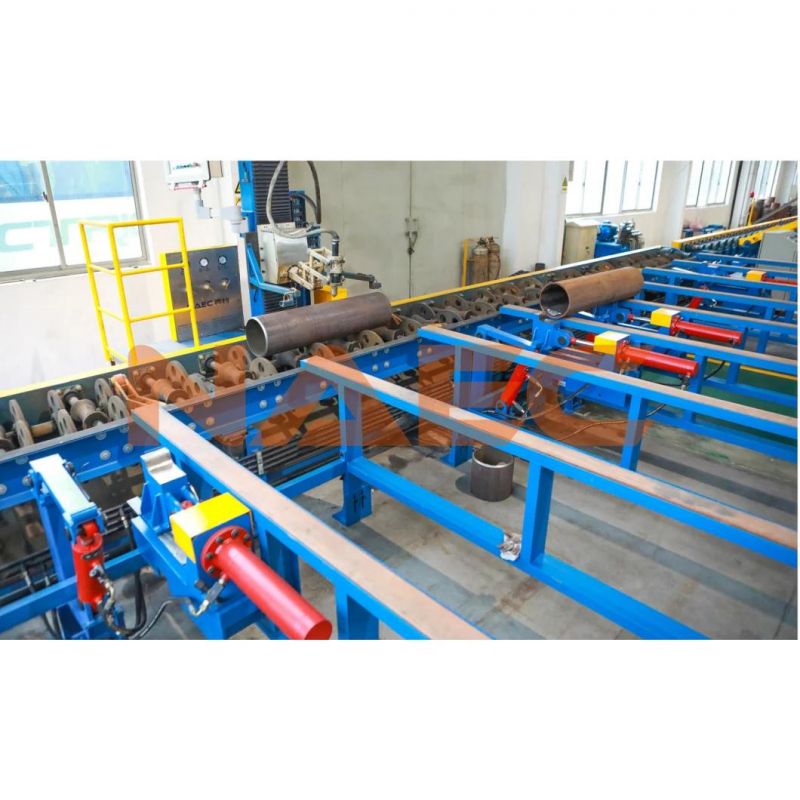

Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-24"

Nanjing Auto Electric Co., Ltd.
  • Cutting Material：Carbon Steel, Stainless Steel
  • Automatic Grade：Automatic
  • Transport Package：Container
  • Specification：SGS, ISO9001
  • Trademark：NAEC
  • Origin：China

Base Info

    Description

    Production Line Type:Fixed in workshopSuit for Pipe Diameter:2 to 24inchSuit for Pipe Material:CS/SS/ALSSuit for Pipe Wall Thickness:2-50mmSuit for Pipe Length:12MCutting & Beveling Speed:No more than 5 mins to finish 2 bevelsCutting Precision: 1mmCutting Self Measuring FunctionIncluded Conveying Speed:2-20 m/minCutting Mode:Vertical cutting
    random angel cutting
    multi syphon unfolding cutting
    insert style- 3 pipe union transversal cutting

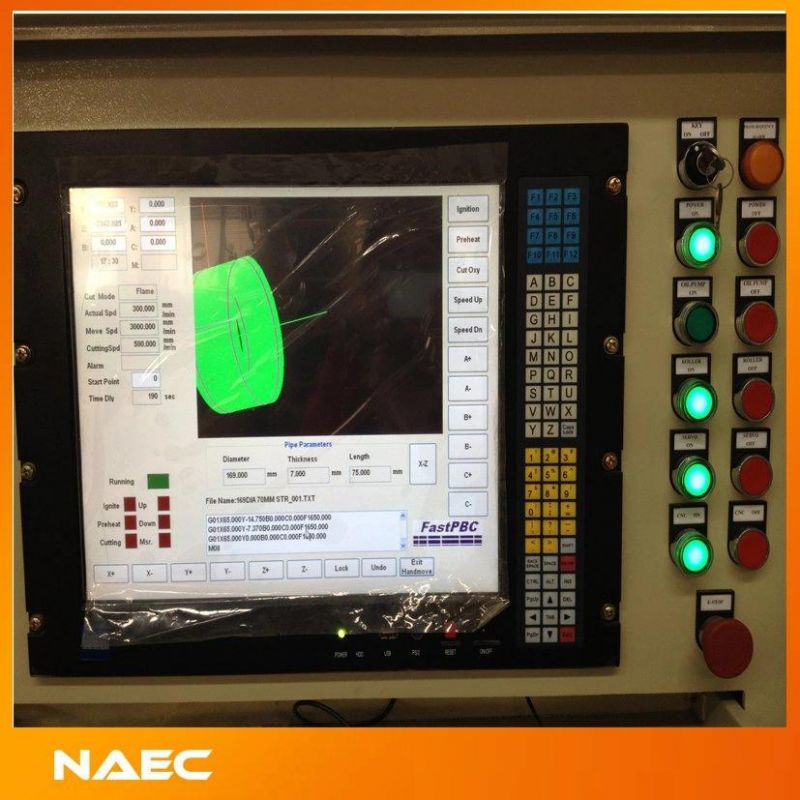

    ride style- 3 pipe union transversal cutting      Program software:
     World Top brand of FASTCAM program softwareServo system: Panasonic alternating servo
    Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-24"

    Q: Can programming be done remotely? Does Customer need a programmer?
    A: Programming cannot be done remotely. It is done in the computer and copy to the machine by USB flash disk. You will need a programmer, but he does not need to be very professional because of easy operation with menus and diagrams.

    Q: Can customer use drawing input directly to load machine?
    A: Yes, such as AUTOCAD drawing to be loaded.

    Q: What will happen in continuous HOT / Humid condition in open Yard?
    A: PANEL needs to be air-conditioned AND tropicalised.

    Q: What will happen if ovality of tubular is more? Will it give error?
    A: Our machine can track and correct the height of cutting gun.

    Q: Will machine find work point?
    A: Yes, the machine can find the work point automatically.

    Q:Will turning rollers have any synthetic material (rubber/ Teflon) to minimize "pipe slippage" during cutting?
    A: Plasma cutting needs such material. Flame cutting does not need.

    Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-24"    1Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-24"

    Pipe Cutting& Beveling All-in-one Machine

    >Suitable for pipes not larger than 8",max.thickness:20mm

    >Cutting efficiency:100times/8hrs

    >PLC control with automatic measuring to guarantee the same processing cycle

    >Widely used for small bore C.S/S.S production lines

    2Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-24"

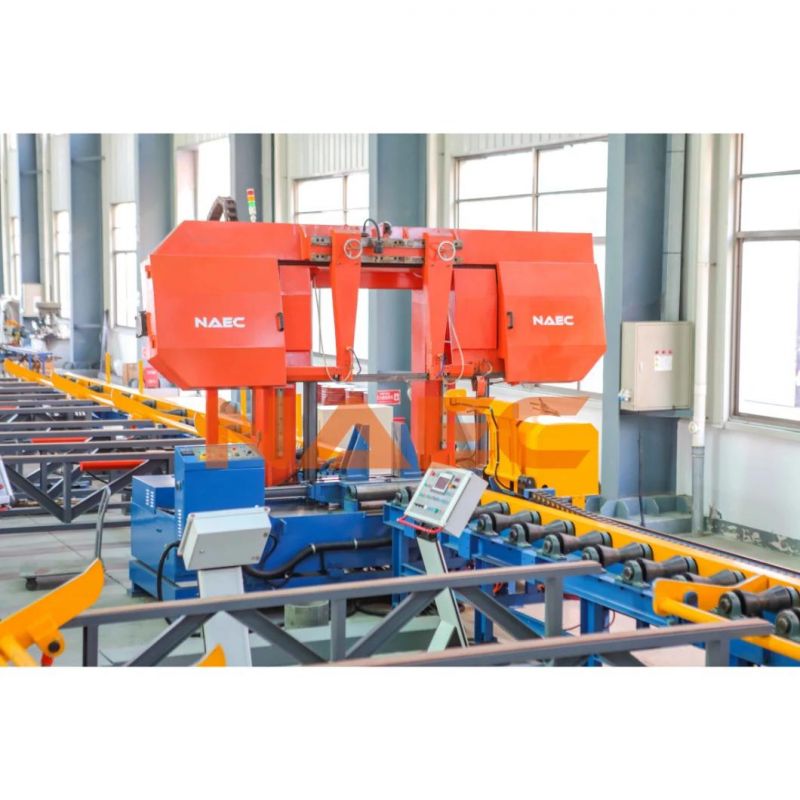

    High Speed Band-saw Cutting Machine

    >Three models available(16"type,24"type",48"type)

    >PLC system control;self-measuring function with precision:±0.5mm

    >Using hydraulic self-centering chuck

    >It only takes 6 minutes to cut a 24" pipe of 25mm thickness

    >Widely used for C.S/S.S production lines.

    3Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-24"

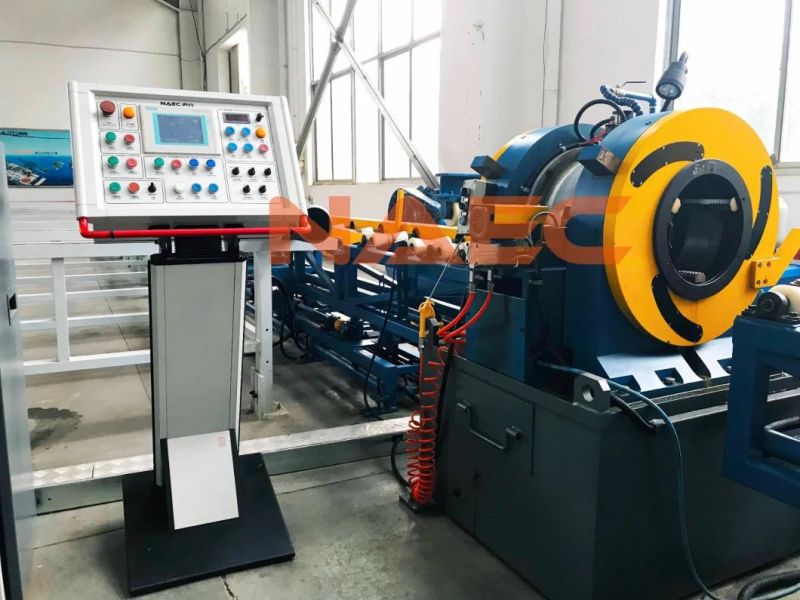

    High Speed CNC Pipe End Beveling Machine

    >Automatic self-centering chuck

    >Single V,double V,U type bevel

    >Can be matched with pipe end turning devic

    >High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)

    >Several models available:16",24",32",48"

    4Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-24"

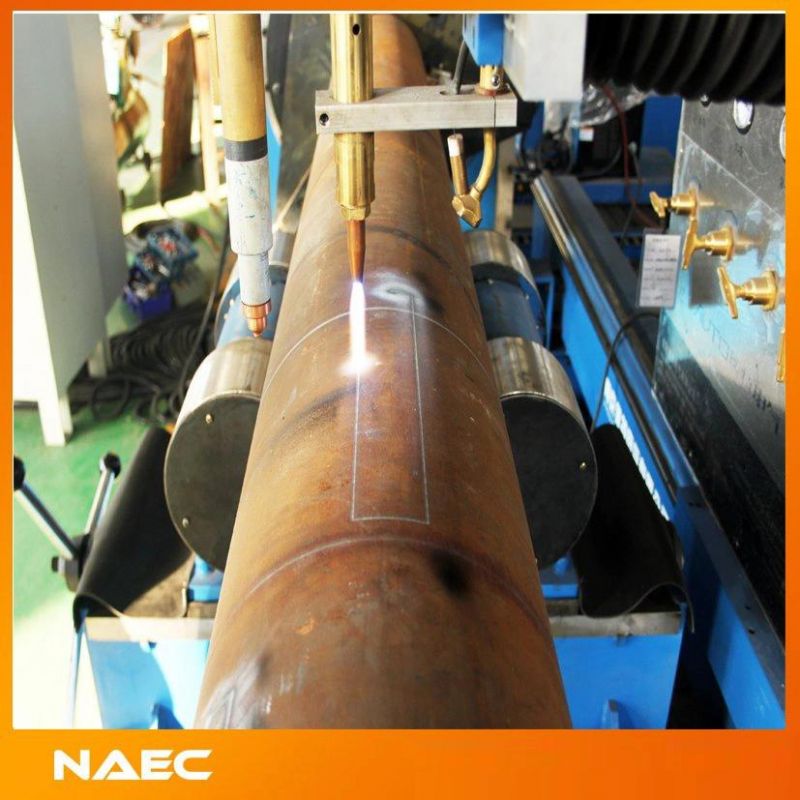

    Two / Multi- Axis CNC Flame/Plasma Cutting Machine
    >High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.

    >Five/multi-axis cutting machine can profile more complicated outlines with various bevel type

    >Standard machine suitable for pipes nor larger than 24''

    5Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-24"

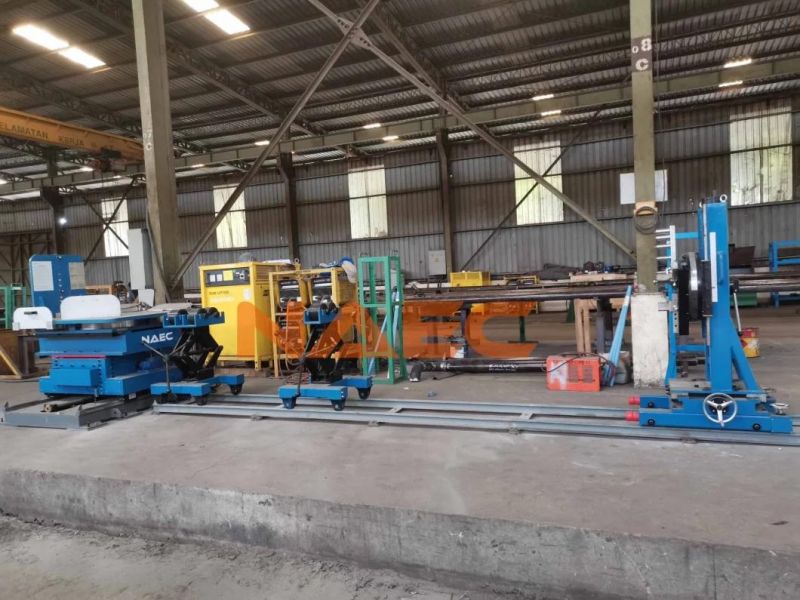

    Multi-function Pipe Fitting-up Station

    >Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.

    >Light-duty type(manual) and heavy-duty type(motorized) are available.

    >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

    6Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-24"

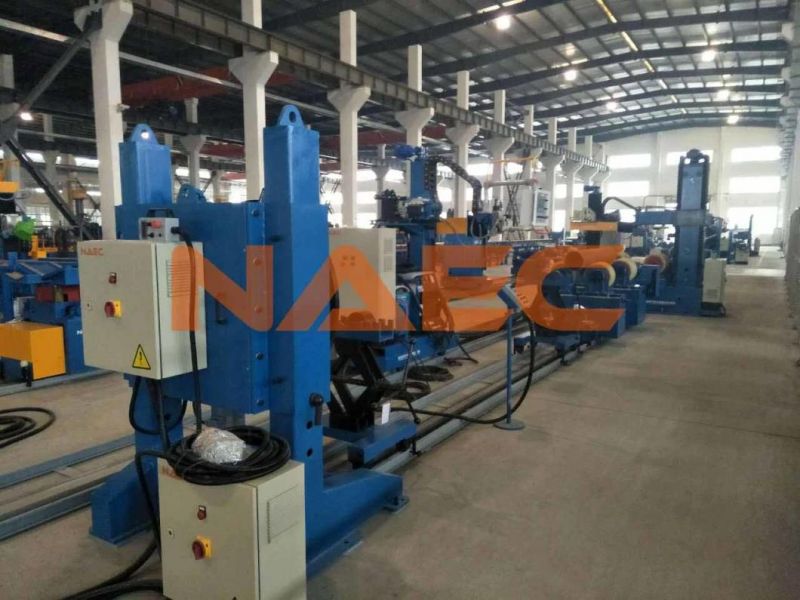

    Automatic Pipe Welding Station

    >With two welding heads

    >TIG/MIG/SAW are optional

    >PLC system control & WPS programmed

    >Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.

    >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

    7Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-24"

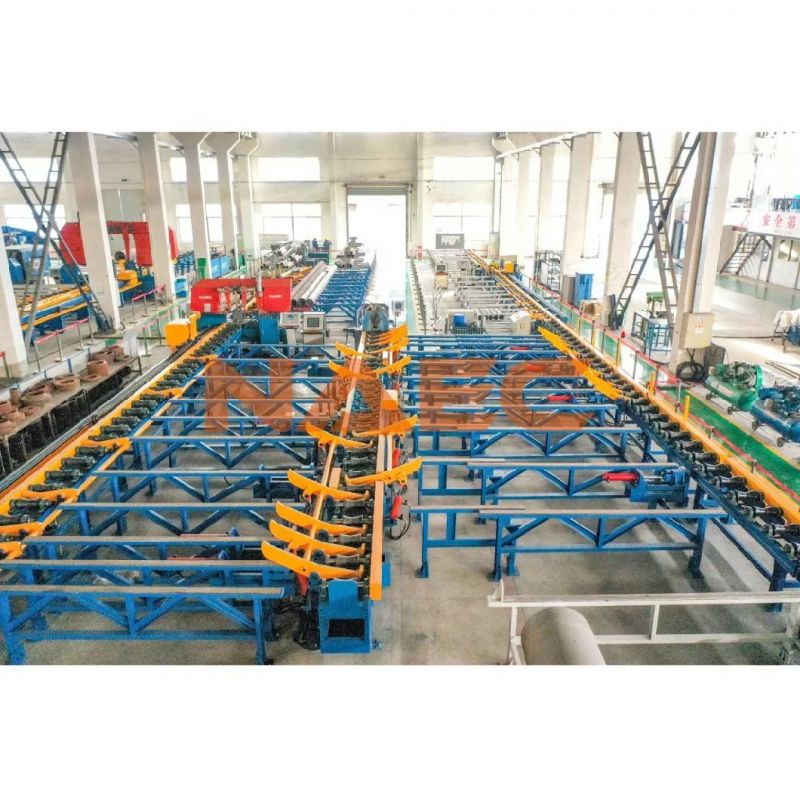

    Conveyor Handling System

    >used for pipe convenient transporation during in pipe spool fabrication.

    >Its speed is adjustable between 2M to 20M/min.

    For more information, please contact us, thank you!
