• Model NO.：YX65-300-400-500
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Model No.：Yx65-300-400-500
• Size：5800*1600*1400mm
• Roll Forming Machine：Roll Forming Machine
• Weight：7000kgs
• Motor Power：7.5kw*2 Sets
• Hydraulic Power：2.2kw
• Forming Steps：13
• Effective Width：300mm, 400mm, 500mm
• Material Width：470mm, 575mm, 680mm
• Thickness：0.6-1.0mm
• Transport Package：Standard Package for Export
• Specification：SGS
• Trademark：XHH
• Origin：Xiamen, China
• HS Code：84552290
• Production Capacity：10-15sets,Month

Basic Info.

Model NO. YX65-300-400-500 Customized Customized Advantage Work Flexible Condition New Model No. Yx65-300-400-500 Size 5800*1600*1400mm Roll Forming Machine Roll Forming Machine Weight 7000kgs Motor Power 7.5kw*2 Sets Hydraulic Power 2.2kw Forming Steps 13 Effective Width 300mm, 400mm, 500mm Material Width 470mm, 575mm, 680mm Thickness 0.6-1.0mm Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen, China HS Code 84552290 Production Capacity 10-15sets/Month

Product Description

YX65-300-400-500 Standing Seam Roofing forming  Machine, Roll Forming Machine, Metal Roofing Forming Machine:

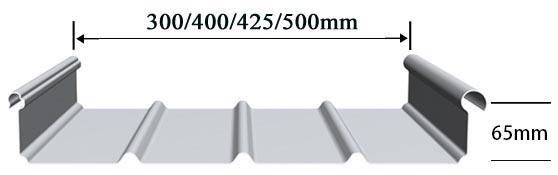

            Profile drawing for YX65-300-400-425standing seam roofing

Advantage:
1.automatic
2.reduse labor cost
3. work flexible

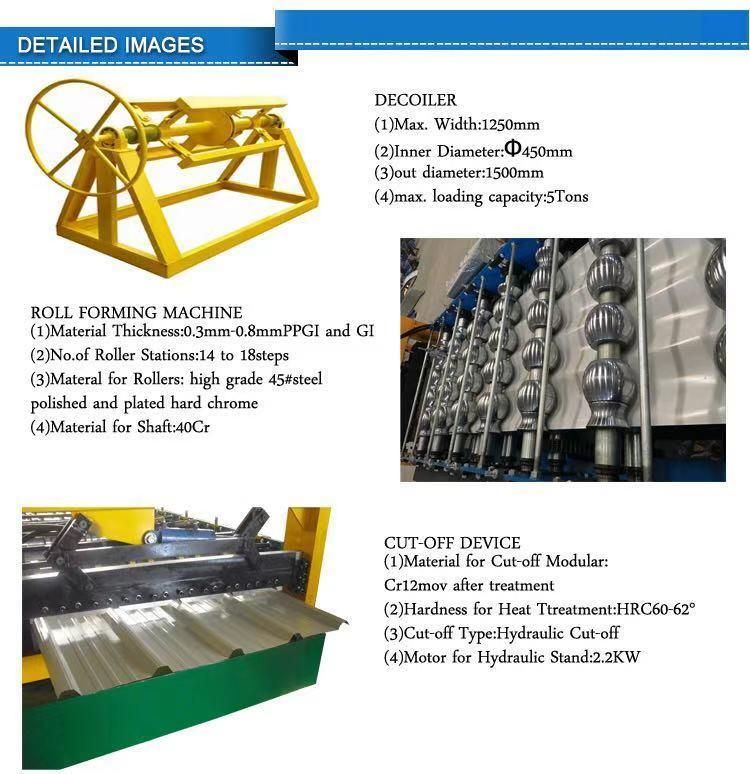

Main Accessories:
A. Main roof forming machine; B. 5 tons manual uncoiler;
C. Hydraulic system;

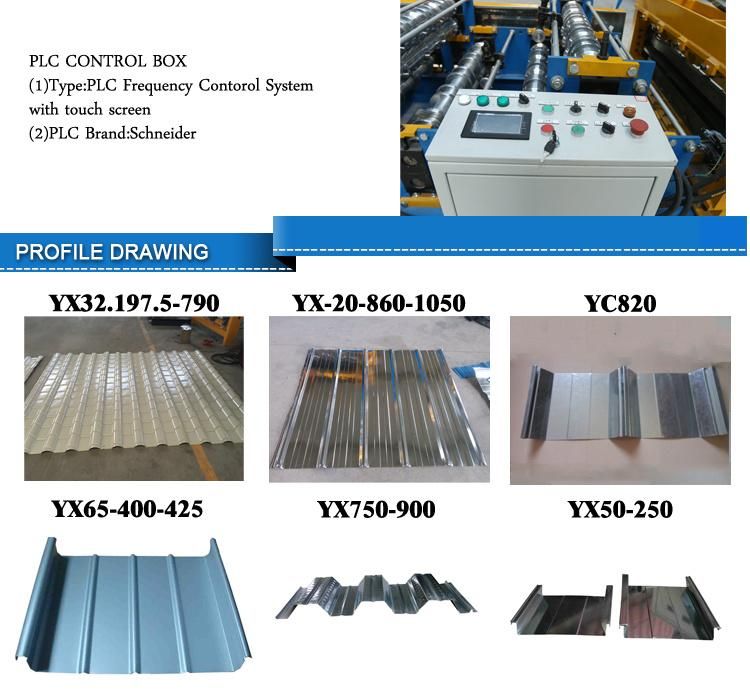

D. PLC computer controlling system with touch screen;
E. Hydraulic forming cutter;
F. Protective Cover;
G. Operational manual.

Main technical parameter:

1.	Size	5800*1600*1400mm
2.	Weight	7000KGS
3.	Motor Power	7.5KW*2 sets
4.	Hydraulic Power	2.2KW
5.	Voltage	220V/60HZ/3PH
6.	Forming Steps	13
7.	Forming Speed	8-14m/min
8.	Effective Width	300mm, 400mm, 500mm
9.	Material of Width	470mm, 575mm, 680mm
10.	Thickness  for Aluminum sheets:	0.4-1.0mm
11.	Thickness for Colored Prepainted and Galvanized  Sheet	0.5-0.8mm
12.	Material for All Rollers	high grade no. 45 forged steel, plated hard chrome on the surface of rollers
