• Model NO.：S6110
• Certification：CE, RoHS, GS, ISO9001
• Type：Sand Casting
• Transport Package：International Standard or Customized
• Specification：According to equipment
• Trademark：Dingli
• Origin：China
• HS Code：8474802000
• Production Capacity：500

Basic Info.

Model NO. S6110 Certification CE, RoHS, GS, ISO9001 Type Sand Casting Transport Package International Standard or Customized Specification According to equipment Trademark Dingli Origin China HS Code 8474802000 Production Capacity 500

Product Description

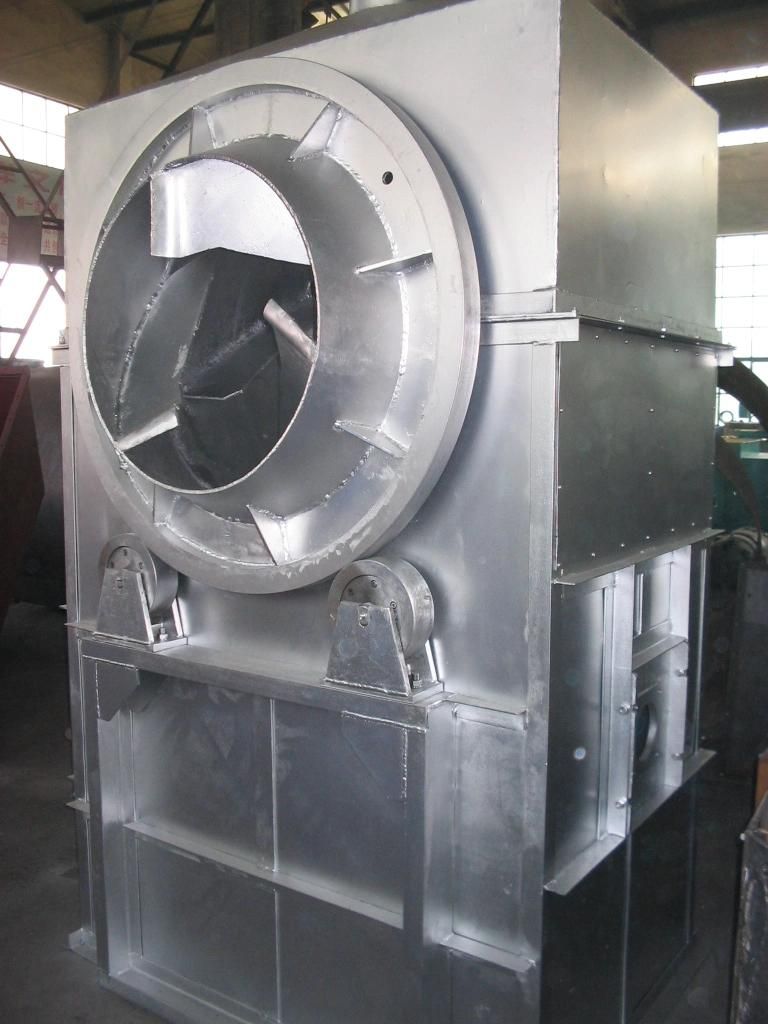

This equipment is mainly used to heat new sand when producing coated sand by thermal method. The main fuels are coal or crushed coke and natural gas. When working, the drum is heated by rotation in the furnace, and the new sand enters the drum through the feeding pipe. Under the action of the scraper, it is continuously pushed forward, lifted and stirred, and is heated evenly. After reaching the process temperature, the idler is reversed, and the material is quickly discharged under the action of the inclined plate.


The feeding and discharging chute is located at the end of the drum, and the legs are fixed on the foundation; the feeding slide pipe extends into the drum to prevent the material from being knocked out by the scraper when entering; the drum is reversed, and the material is discharged from the discharge port.

The two ends of the roller are respectively installed on the furnace frame through the bearing seat and the supporting roller: in order to prevent the high temperature of the bearing and sprocket in the transmission section, the cooling fins on the hollow shaft are immersed in the cooling cycle of the water tank. The cones at both ends of the drum are conducive to the joining, stirring and heating of materials; the back of the drum is welded with reinforcing ribs, and the guide scraper is welded inside; the support rail is welded on the drum cone with a large plate width, and all the welding is completed to ensure stable rotation.

In the transmission part, the deceleration motor drives the roller to rotate through the sprocket, and the tension of the chain is realized by adjusting the deceleration motor seat. The heating furnace consists of a furnace body and a furnace cover. The inner wall of the furnace is made of refractory bricks, and the inner wall of the furnace cover is made of aluminum silicate fiber cement, which improves the utilization rate of heat energy and the service life of the furnace.
FAQ:
Q1. Where is your factory? How can I visit it?

A : Our factory is located in Qingdao City, Shandong Province, China. You can fly to Qingdao Jiaodong Airport and we will pick you up.
Q2. Do you produce machine specific parameters according to samples?
A: Yes, we produce the machine you want according to your sample or technical drawing. Usually a machine has different sizes and technical requirements, such as sand mixing equipment, screening equipment, cooling equipment, etc.
Q3. What is your sample service?
A: If we have the ready-made machine, we can provide the sample test that the customer wants to produce, but the customer must pay the sample shipping cost.

Q4. What is the MOQ for your machine?
A: Usually our MOQ is 1 set.
Q5. Do you test all machines before delivery?
 A: Yes, we do 100% testing before delivery.
Q6: How do you keep our business in a good long-term relationship?
Answer: 1. We maintain good quality and competitive prices to ensure our customers benefit;
2. We respect every customer as our friend, we sincerely do business with them and make friends,
no matter where they come from.
Qingdao Dingli Machinery Co., Ltd.
1. We are one of the manufacturers of metal casting machinery in China.


2. We produce clay sand processing equipment, resin sand recovery equipment, coated sand making equipment, coated sand regeneration equipment, sand drying equipment, dust removal equipment, conveying equipment, cooling equipment, magnetic separation equipment, screening equipment, mixing equipment Sand machine, etc.


3. Our machines are widely used to produce and process casting parts, metal castings, plumbing fittings, auto parts, brass, aluminum, zinc, cast iron production line valves, etc. Please contact us!

 4.We have professional technical support and after-sales service. Has the whole line of casting machines, good quality, reasonable price and fashionable design.

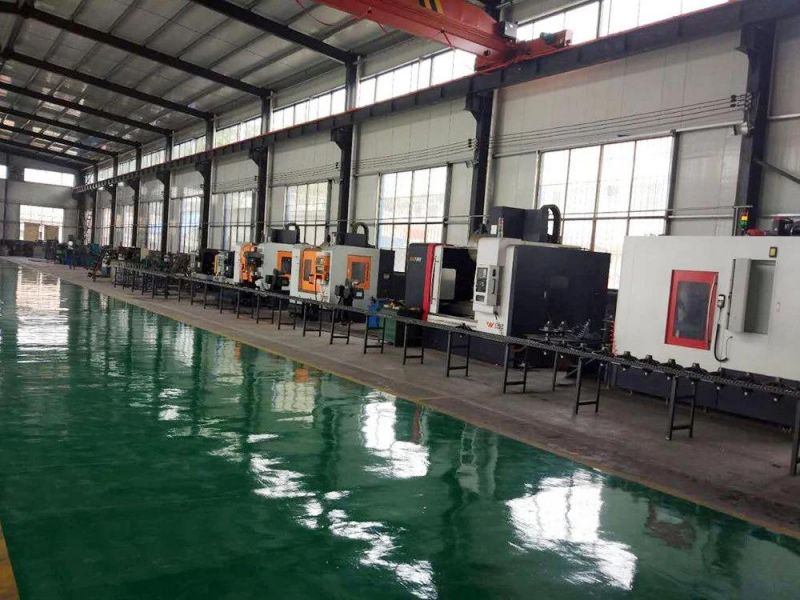

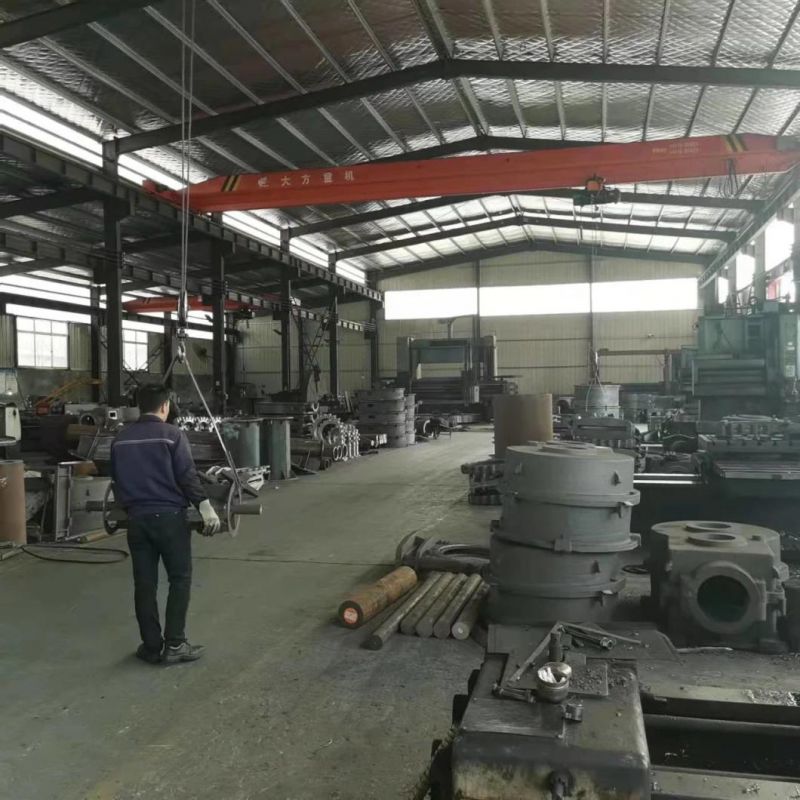

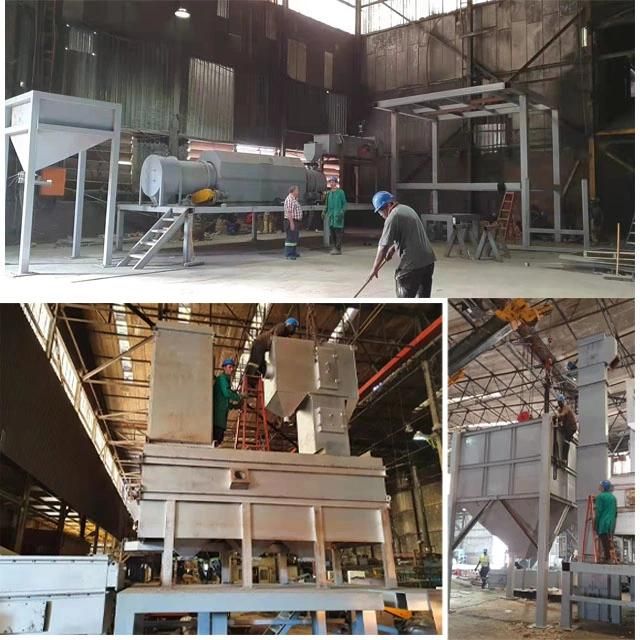

Qingdao Dingli Machinery Co., Ltd. is an enterprise specializing in the production of foundry machinery and equipment. It mainly produces foundry clay sand, resin sand, coated sand, wet sand drying, lost foam, and water glass sand processing equipment. It can undertake various mechanized sand processing equipment. Design, manufacture, installation, commissioning and other turnkey projects. The factory has strong technical force and excellent process equipment. It has a long-term close technical cooperation relationship with senior experts and scholars from many domestic universities and scientific research institutions, and can provide users with excellent performance, reliable products and satisfactory services.

The company takes science and technology to develop the enterprise, quality is the foundation, continuous improvement, and customer satisfaction is the purpose.

The company mainly undertakes the following projects:
20-180t/h mechanized clay sand sand processing production line turnkey project and stand-alone supporting equipment.
Annual output of 1000-20000t castings condensed resin sand mechanized production line turnkey project and stand-alone supporting equipment.
With an annual output of 3000-10000t thermal-coated sand making complete set of equipment turnkey project and stand-alone supporting equipment.
With an annual output of 3000-7000t thermal coated sand regeneration complete equipment turnkey project and stand-alone supporting equipment.
5-15t/h water glass mechanized production line turnkey project and stand-alone supporting equipment.
5-30t/h three-pass sand drying equipment turnkey project and stand-alone supporting equipment.
5-40t/h lost foam complete set of equipment turnkey project and stand-alone supporting equipment.
Various types of clay sand horizontal molding machine, vertical molding machine.
Various types of shot blasting equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment.
