Stock 100ton 125t C Frame Punching Press Machine for Electronic Parts
Wuxi Geepro Machinery Import&Export Co., Ltd.- Type：Power Press
- Certification：CCC, ISO9001, CE
- Warranty：24 Months
- Customized：Customized
- Condition：New
- After Service：on-Site Installation
Base Info
- Model NO.：GEEPR
- Guarantee：18months
- Motor：Siemens
- Key Electronic Components：Schneider
- PLC：Siemens
- Valve：Rexroth
- Transport Package：Wooden Box
- Trademark：GEEPR
- Origin：China
- HS Code：84629201
- Production Capacity：300-500PCS,Year
Description

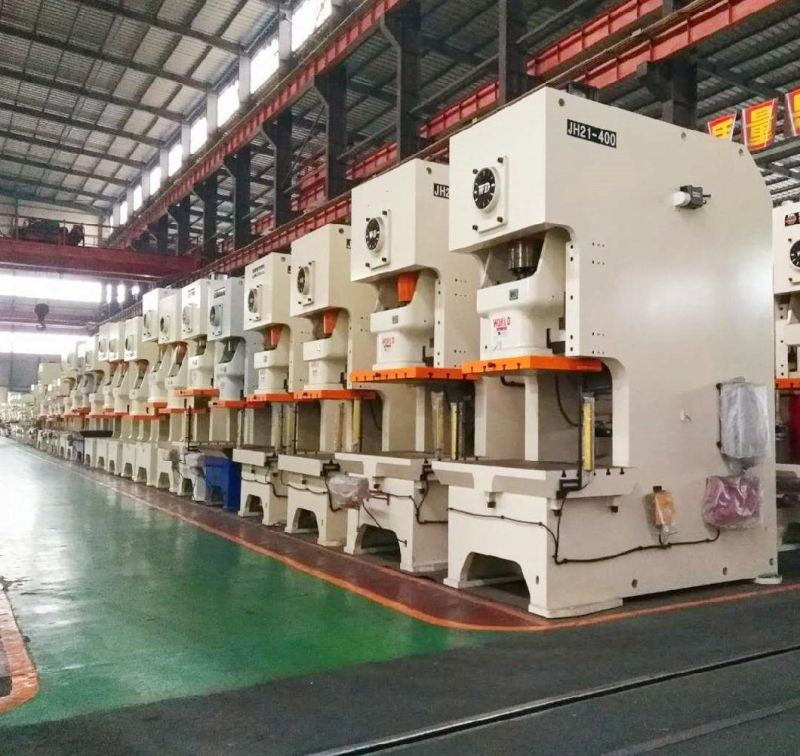

Parameter Unit JH21-
25 JH21-
45 JH21-
60 JH21-
80 JH21-
100 JH21-
125 JH21-
160 JH21-
200 JH21-
250 JH21-
315 JH21-400 Nominal Capacity KN 250 450 600 800 1000 1250 1600 2000 2500 3150 4000 Nominal Stroke mm 3 4 4 5 5 6 6 6 6.5 7 8 Slide Stroke Length S mm 80 120 140 160 160 180 200 220 220 220 250 H mm 50 70 80 100 100 110 130 150 160 160 180 Slide Stroke Fixed S times
/min 100 80 70 60 55 50 45 45 30 30 30 H 125 95 90 80 80 70 60 50 45 45 40 Variable S times
/min 60-120 50-95 45-85 40-75 35-65 35-60 30-55 30-55 20-35 20-35 20-35 H 75-150 65-115 60-110 55-95 55-95 50-85 40-70 35-60 30-55 30-55 30-50 Max. Die Set Height S mm 250 270 300 320 335 350 400 450 500 500 550 H 265 295 330 350 365 385 435 485 530 530 585 Die Height Adjustment mm 50 60 70 80 90 90 100 110 120 120 120 Throat Depth mm 210 225 270 310 330 350 400 430 450 450 490 Distance Between Uprights mm 450 515 560 610 670 670 736 910 980 980 1050 Slide Bottom Size L x R mm 360 410 480 540 620 620 700 880 950 950 1020 F x B mm 250 340 400 460 520 520 580 650 700 700 750 Handle Hole Size Dia mm 40 50 50 50 70 70 70 70 70 70 70 Depth mm 65 60 70 65 90 90 100 100 130 130 130 Bolster Size L x R mm 720 825 930 950 1060 1100 1175 1390 1500 1540 1700 F x B mm 400 440 520 600 640 680 760 840 880 880 950 Bolster Thickness mm 80 110 130 140 145 155 165 180 190 190 210 Table Hole Diameter mm 150 150 150 180 180 200 220 240 260 260 280 Bolster Surface Height mm 780 800 900 900 900 900 900 1000 1000 1000 1100 Overall Size F x B mm 1500 1585 1540 1765 2000 2040 2305 2600 2660 2720 2850 L x R mm 945 1075 1200 1200 1300 1320 1420 1540 1640 1680 1750 H mm 2120 2390 2570 2725 3010 3035 3215 3800 3850 3850 4140 Distance between
foundation bolts F x B mm 980 1075 1100 1210 1365 1430 1665 2020 2100 2140 2185 L x R mm 690 760 840 920 1020 1040 1140 1360 1460 1500 1570 Motor Power Kw 3 5.5 5.5 7.5 7.5 11 15 18.5 22 30 37 Weight Kg 2450 3550 5150 6450 8650 9550 13600 19200 23200 26600 29500 Press Pressure Mpa 0.5
25
45
60
80
100
125
160
200
250
315
/min
/min
foundation bolts
