• Pre-Mixer Crushing Motor (Kw)：3.0
• Capacity(Kg/H)：100-1000
• Pre-Mixer Volume (L)：300-1000
• Cooling Band Nip Roll Length(mm)：600-1500
• Extruder Screw Diameter(mm)：46-80
• Grinding System Pin Disk Speed(Rpm)：7000-2900
• Grinding System Feeding Motor Power(Kw)：0.55-0.75
• Cooling Band Stainless Steel Belt(mm)：3000-5000
• Transport Package：Stardard Export Package
• Specification：CE, Sira, ISO9001: 2003, SGS
• Trademark：Yuanli
• Origin：Yantai, Shandong
• HS Code：84743900
• Production Capacity：50 Sets Per Month

Capacity(kg/h)Pre-mixerExtruderCooling BeltGrinding System100~150GHJ-100GSFJ-44AJFY-408NMF-10N150~200GHJ-150G
FHJ-300ASFJ-46AJFY-408N
JFY-406GMF-15N200~300GHJ-300G
FHJ-300ASFJ-55AJFY-508N
JFY-408GMF-20N400~500GHJ-500W
FHJ-600ASFJ-64AJFY-510N
JFY-508GMF-30N600~750GHJ-500W
FHJ-800ASFJ-66AJFY-610N
JFY-510GMF-40N800~1000GHJ-500W
FHJ-1000ASFJ-80AJFY-612N
JFY-610GMF-50N
1. Powder Coating Equipment:

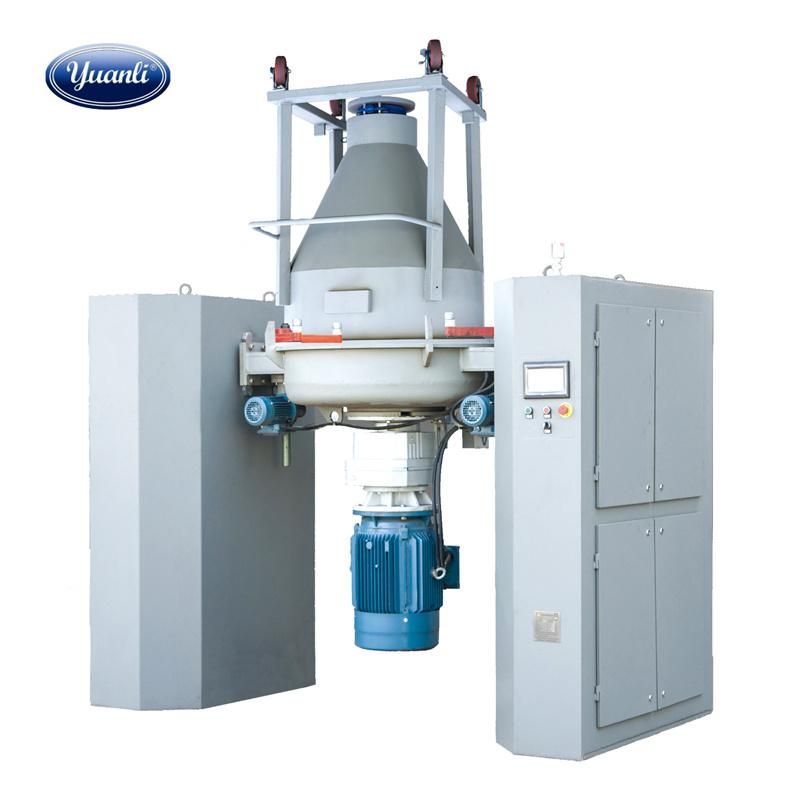

A. Auto Mixer
 ModelVolume
(L)Capacity
(kg/tank)Mixing motor
(kw)Rotary motor
(kw)Crushing motor
(kw)Mixing time
(min)Mixing speed
(rpm)Overall dimension
(mm)FHJ-300A300100~2009.5~110.55-5~1088~1301755*1072*2315FHJ-600G600300~40018.5~220.753.05~1063~952550*1300*2900FHJ-1000A1000500~60026~321.13.05~1045~65
 FHJ-1000G1000500~60026~321.53.05~1045~65

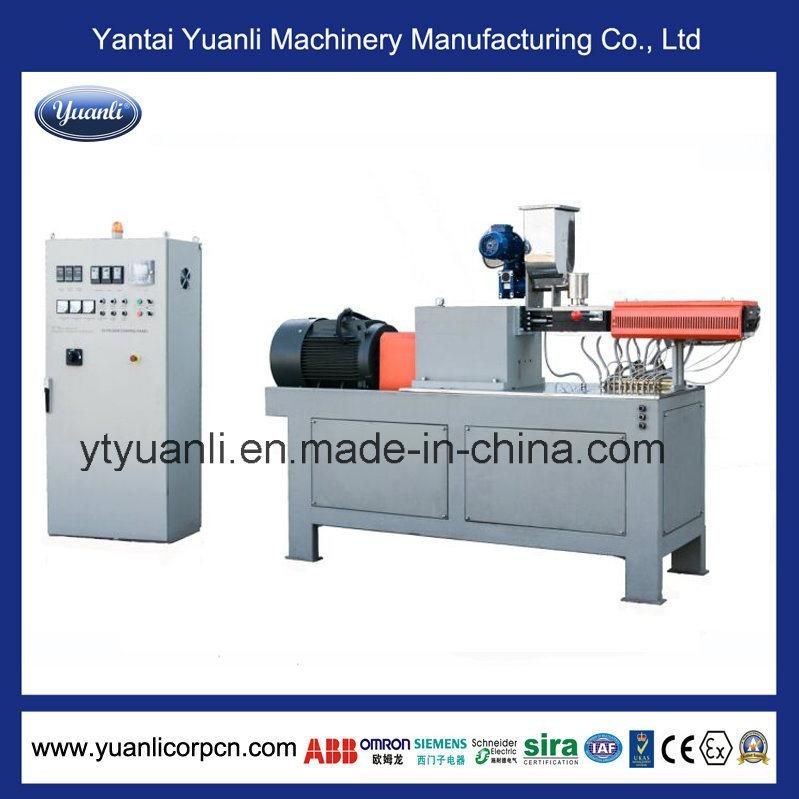

B. Twin Screw N Series Extruder
 ModelSFJ-46A/BSFJ-55A/GSFJ-64A/GSFJ-80GScrew diameter(mm)46556480Length-diameter(L/D)14:116:115:115:1Capacity(Kg/H)100~180/100~280300~400400~500600~800Screw motor power(kw)15, 6/22, 4304555Feeding motor power(kw)0.370.370.550.55Heating power(kw)0.75*40.75*61*5+0.75*12*5+1.5*1Mixing motor power(kw)-0.370.370.37Screw speed(rpm)0~500/0~8000~5000~5000~500Temperature control system±2°C Double temperature PID auto-control. Accuracy ±2Speed adjust systemAdjustable speed by means of frequency inverterFeeding systemVariable by means of frequency inverterCooling systemWater cooledEquipped withScrew feedingPermanent strong-magnetic deviceOverall dimension(mm)
 2650*900*19002900*900*20003600*950*2260

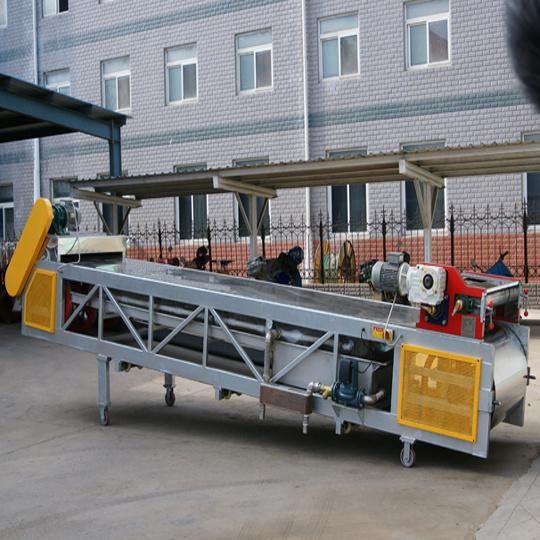

C. Water-cooled Cooling Band
 ModelJFY-306GJFY-408GJFY-510GJFY-610GJFY-612GJFY-515GCapacity(kg/h)100~200200~300400~500500~600600~800800~1200Stainless steel belt(mm)300040005000600060005000Nip roll length(mm)6008001000100012001500Drive power(kw)0.550.751.5445.5Cooling systemWater coolingNip roll diameter(mm)Φ268Variable speedAdjustable speed by means of frequency inverterOverall dimension(mm)3050*1000*11004050*1200*13005050*1400*13006050*1600*13006050*1700*13005050*1800*1300

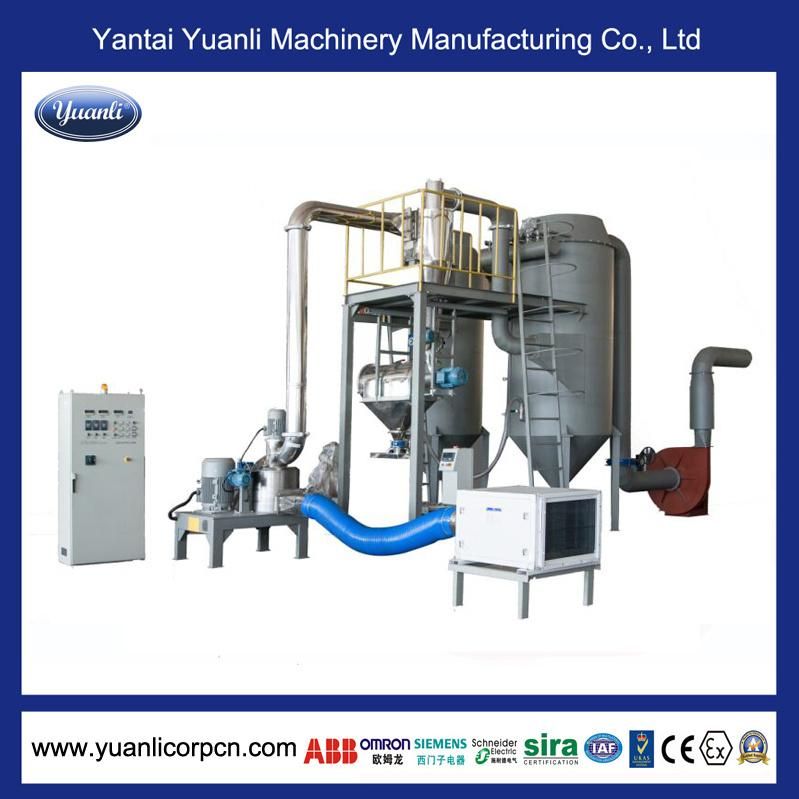

D. ACM Grinding System
 Main specificationModelMF-10NMF-15SMF-20/25SMF-30SMF-35SMF-40/50SMF-60SMain motor power(kw)7.51115222230/3745 2Pin disk speed(rpm)700065006000/45004500400040002900Classifier motor power(kw)1.12.233444Classifier speed(kw)0~28000~28000~28000~28000~28000~28000~2800Feeding motor power(kw)0.550.550.550.550.750.750.75Grinder cover motor power(kw)
 0.180.180.180.250.25
 Discharge motor power(kw)0.370.370.370.370.370.370.37Rotary sieve motor power(kw)1.51.51.51.51.51.51.5Blower motor power(kw)7.51115/22223030/3745Blower flow rate(m3/min)203040/70707680
 Seperating efficiency≥98%≥98%≥98%≥98%≥98%≥98%≥98%Particle size MESH120~350120~350120~350120~350120~350120~350120~350Capacity(kg/h)100~150150~200200~300/300~400400~500500~600600~800800~1000
2. Company Profile:

We exported the first powder coating production line to United Kingdom in 1989. Since then, our equipments opened the international market. We cooperate with Italy SBS Company from 2000, the quality of our machines are in accord with European standard. We achieved perfect image, and trust from foreign customers because of our excellent quality of equipments and superior customer services.

We are not only provide installation services to customer, but also provide our customer good formulation to help customer produce best quality powder coating.

3. Our Certificate:

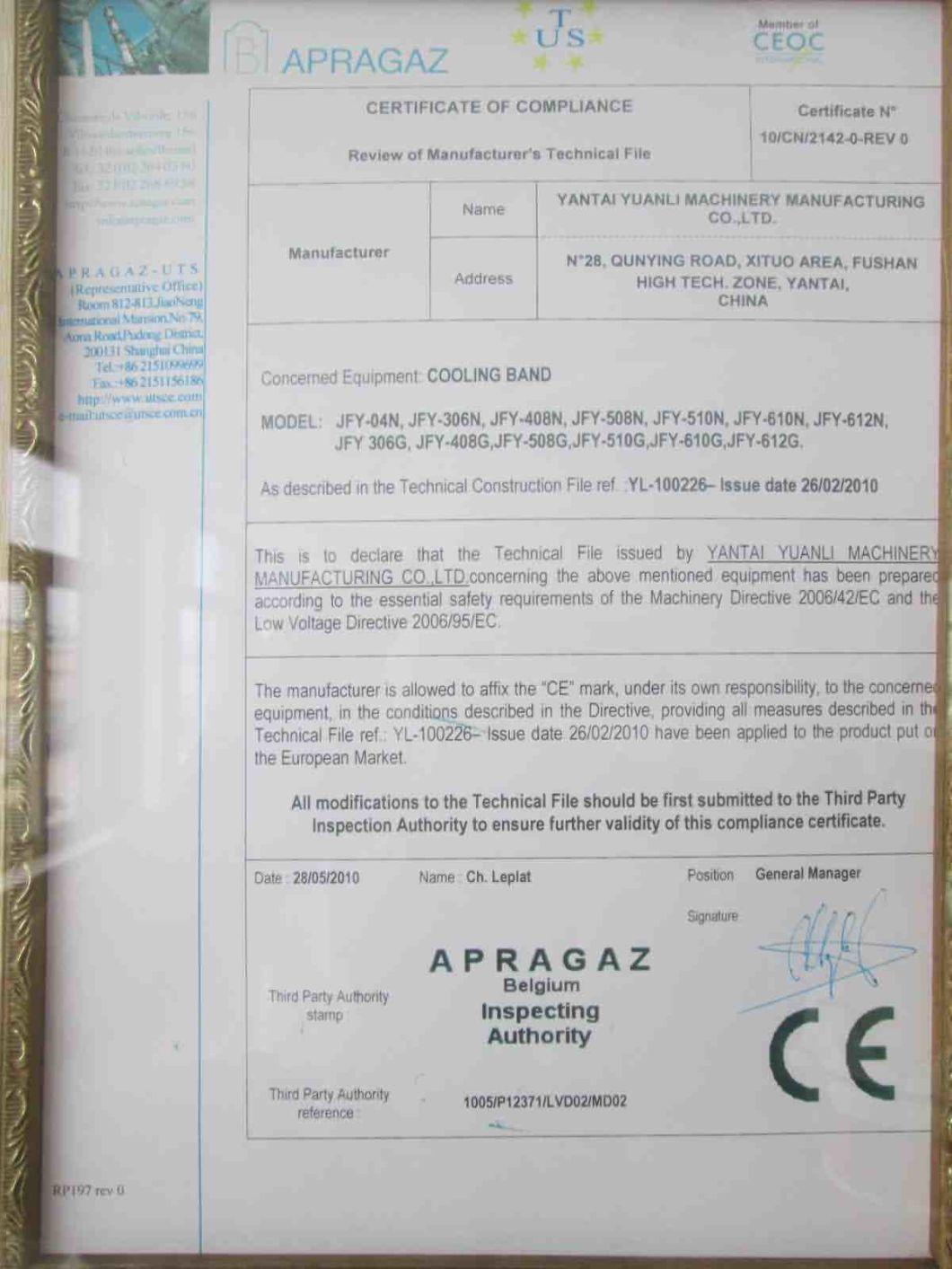

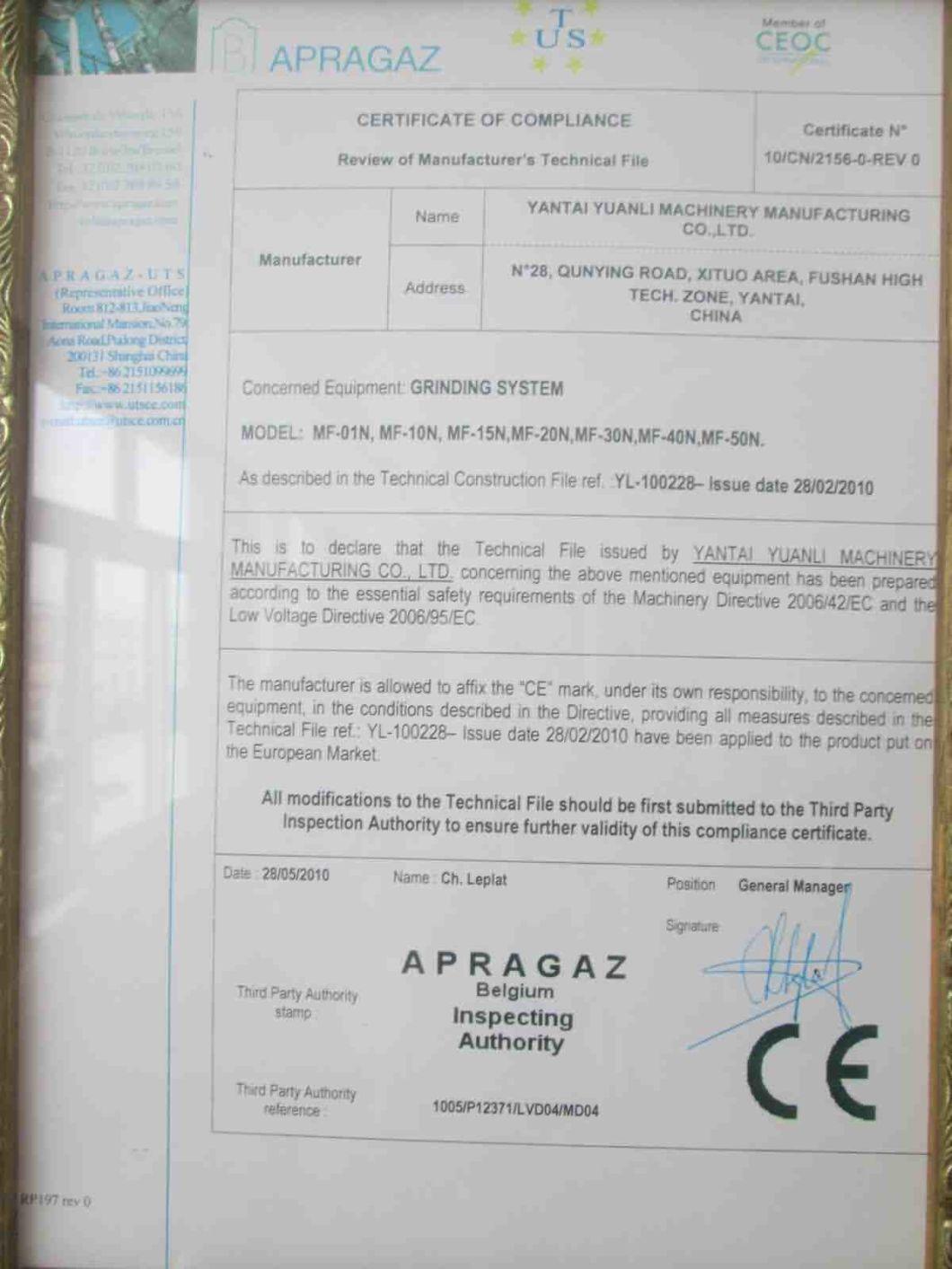

CE Certificate
CE Certificate authorized by APRAGAZ Inspecting Authority from Belgium

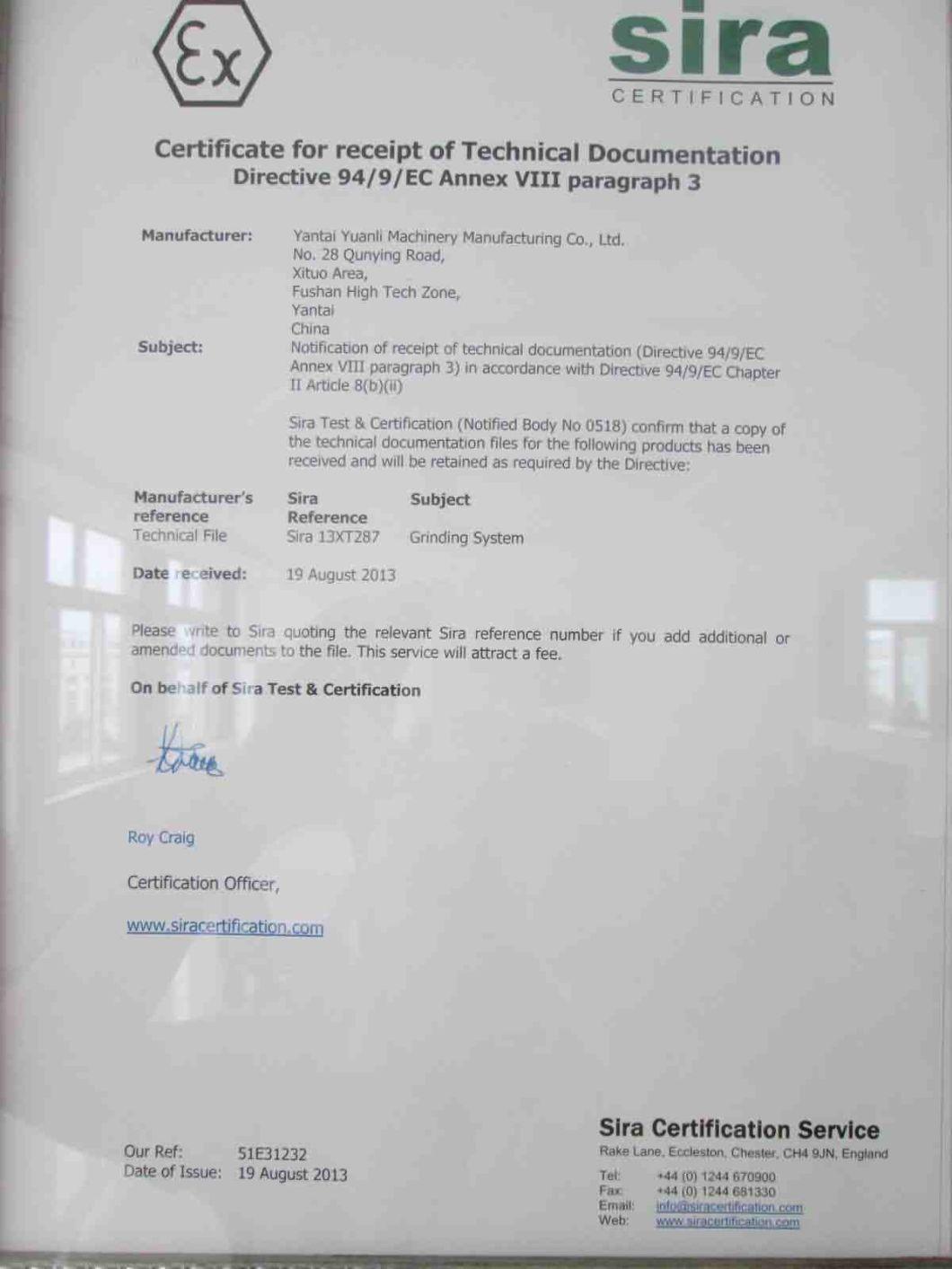

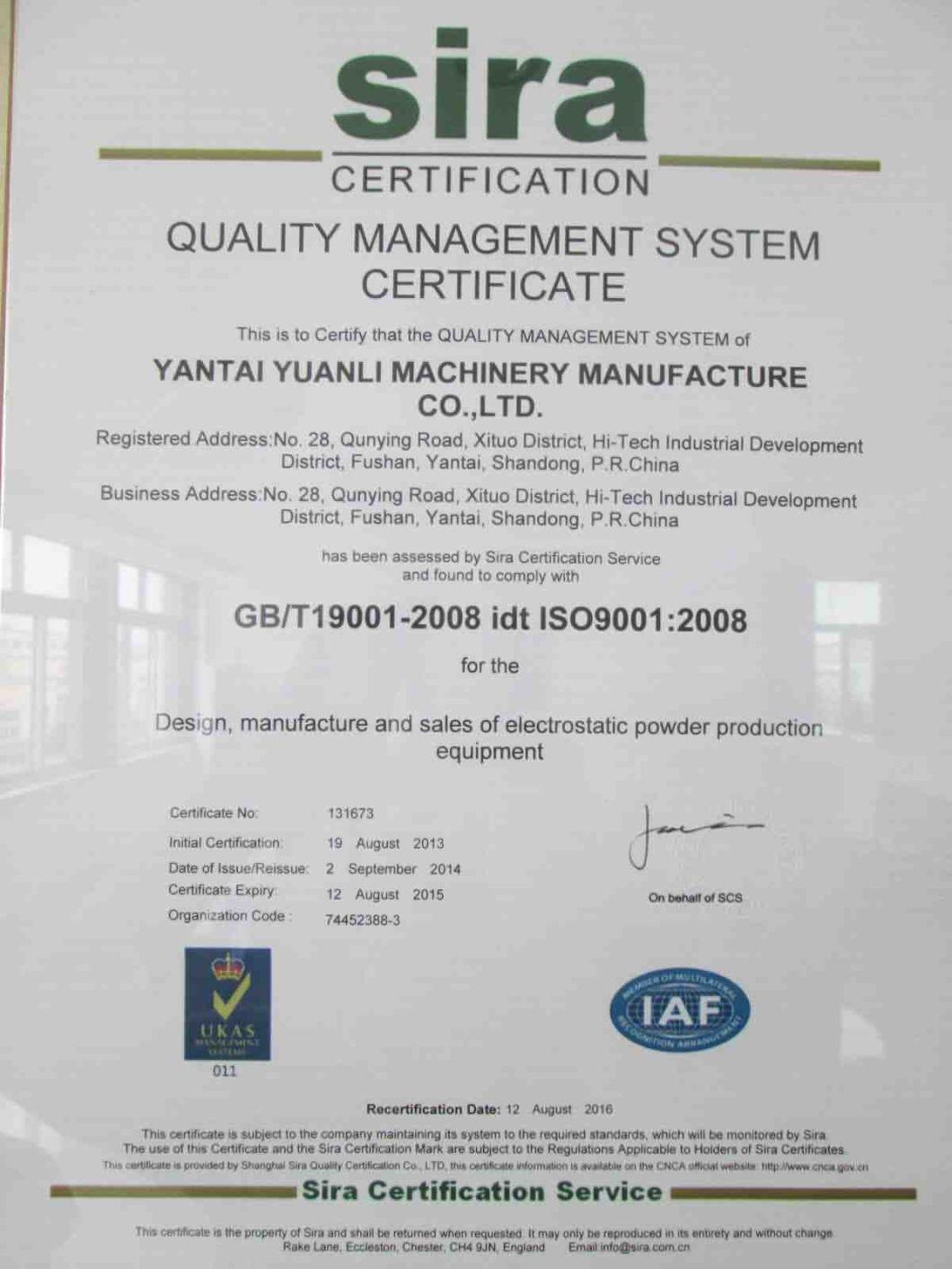

Sira Certification Service
The Quality Management System of Yantai Yuanli Machinery Manufacturing Co., Ltd. has been assessed by Sira Certification Service and found to comply with GB/T19001-2008 idt ISO9001:2008 for the Design, manufacturer and sales of electrostatic power production equipment.




4. Our Advantage & Service

-Technical Support Online Service Provided
According to customer's requirement, we provide layout (plant designer), excellent mechanical engineer, excellent electrician, etc.

-On-site Training Service Provided
In customer factory, we provide all kinds of training, including installation, commissioning

-Long-term Maintenance Provided
In the area of maintenance, we offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes, in order to guarantee the safe and economic operation of plant and machinery.

-Spare Parts Replacement and Repair Service Provided
Providing spare parts for all kinds of powder coating processing equipment in long-term. And can provide tailored made spare parts according to customers' requirements. Ensure advanced craft, good material and high precision.

Formulation Provided (our advantage)
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.

We sincerely welcome customers from all over the world come to visit and negotiation with us!
