• Model NO.：KF-X1-TC
• Condition：New
• Name：Multiple Coats Powder Coating Gun
• Application：Any Metal Surface
• Voltage：220V,110V
• Frequency：50-60Hz
• Max Voltage：100kv
• Gun Weight：500g
• Packaging：Wooden Case,Carton
• Delivery：1-3 Working Days
• Payment：100% in Advance
• Item：Powder Coating Machine
• Transport Package：Carton
• Specification：123x80x49 cm
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：800sets,Year

Basic Info.

Model NO. KF-X1-TC Condition New Name Multiple Coats Powder Coating Gun Application Any Metal Surface Voltage 220V/110V Frequency 50-60Hz Max Voltage 100kv Gun Weight 500g Packaging Wooden Case/Carton Delivery 1-3 Working Days Payment 100% in Advance Item Powder Coating Machine Transport Package Carton Specification 123x80x49 cm Trademark COLO Origin China HS Code 8424899990 Production Capacity 800sets/Year

Product Description

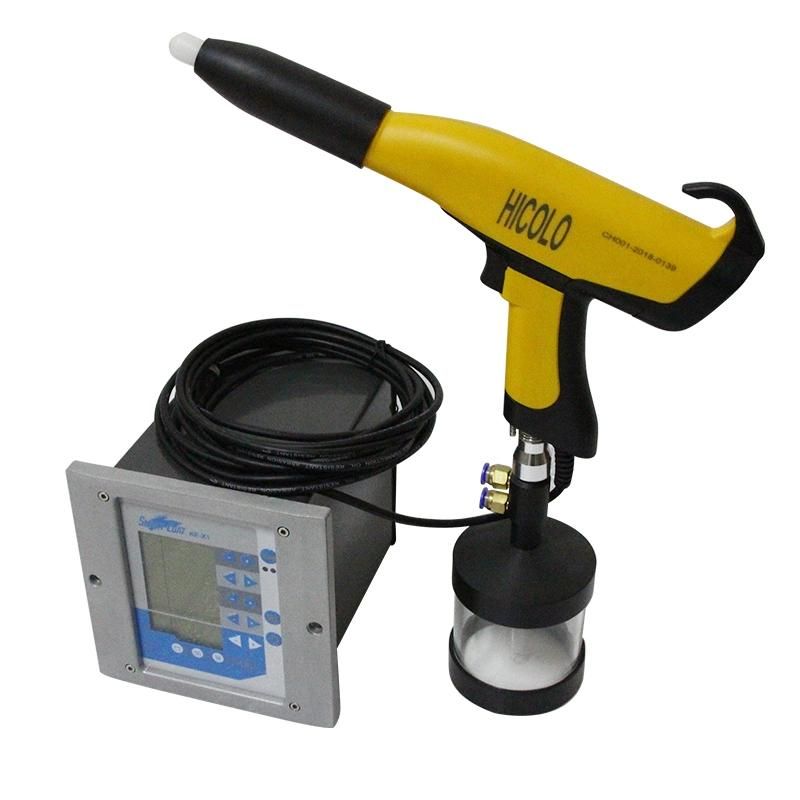

Multiple Coats Powder Coating Gun

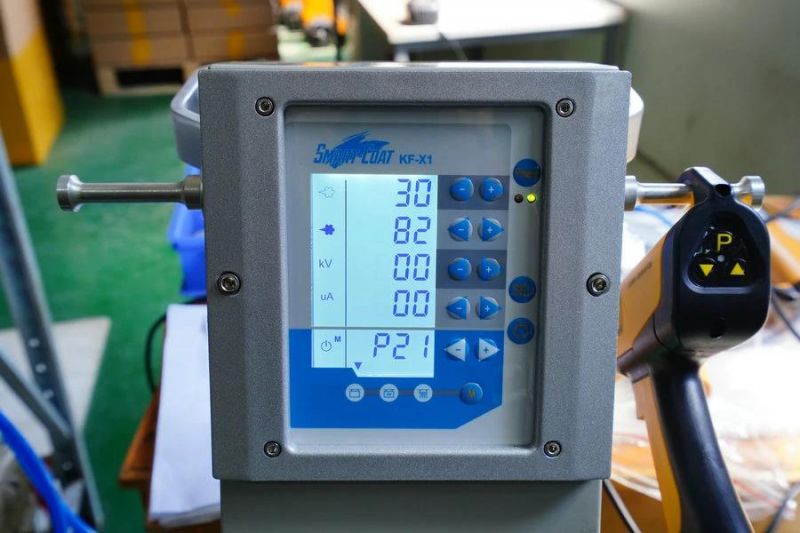

KF-X1-TC powder coating gun provides a solution to spray multiple coats of powder coating. 100kV spray gun ensures quality of the first coating film, which prepares for powder coating next layer. Powder gun controller with digital valve control technology, supports to precisely set parameters, operators could accurately adjust according to different powder coating layers.Powder Gun Controller of Multiple Coats Powder Coating Gun
1. Three preset standard programs:
Flat parts program is ideal for spraying panels and flat parts.
Complex parts program is designed for some parts with complex shapes and deep corners.
Recoat program is optimized for parts which have already been coated.

2. Support to store coating programs up to 20, features convenient to spray the same type products next time.

3. Digital air flow technology for more accurate pneumatic data setting, ensures better atomization.

4. The precise powder output is able to control the thickness of coating film, results a consistent powder coating effect.

5. Voltage and current could be adjusted flexibly ( Voltage 0-100kV, Current Max.180μa ).

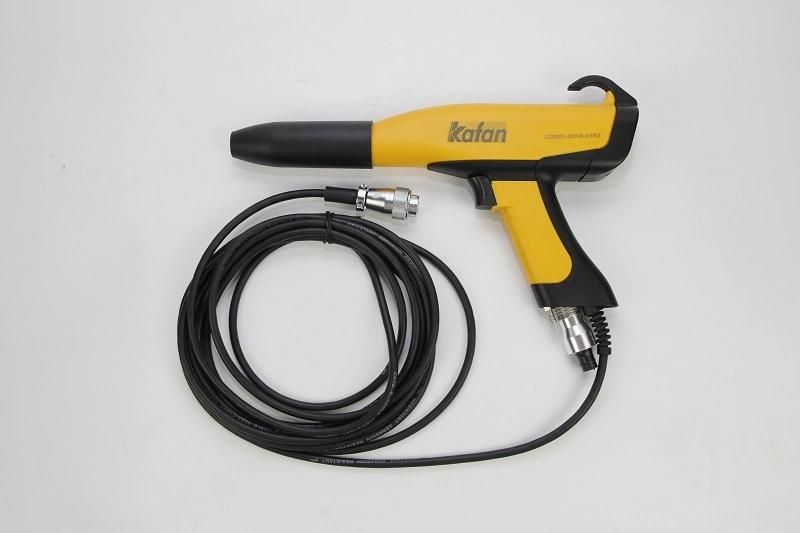

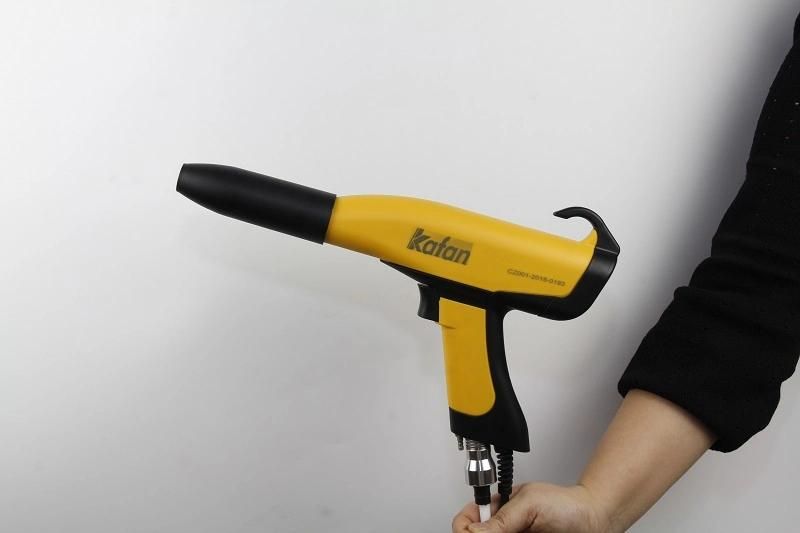

COLO-08 Powder Coating Spray Gun



1. Only 500g powder gun body maintains all practical functions, ergonomical design is able to reduce operators' fatigue from working long hours.

2. 100 kV manual spray gun with high KV setting will result in better powder attraction to ensure the better quality of every powder coating layer.

3. Nozzles are made of non-stick materials, professionally designed to minimize powder accumulation as well as enhance penetration ability.

Technical Specifications of Multiple Coats Powder Coating Gun



Voltage	AC 220V / 110V
Frequency	50-60Hz
Power	50W
Output Voltage	DC24V
Max Voltage	0-100 KV adjustable
Max Powder Injection	600 g/min
Max input air pressure	10 kg/cm
Optimum input-air pressure	6 kg/cm
Minimum input-air pressure	4 kg/cm
Maximum water vapor content or compressed	1.4 g/Nm3
Maximum oil vapor content of compressed air	0.1 ppm
Maximum compressed -air consumption	13.2 m3/h
Temperature Range in Use	-10 ºC-50 ºC
Gun Weight	500g
Maximum Output Current	180μA
Polarity	negative
