Colo Compact Powder Coating Spray Booth with Powder Recovery System
Colo International Corporation Group Ltd.- After-sales Service:Online
- Warranty:12 Months
- Type:Powder Coating Booth
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO, RoHS
Base Info
- Model NO.:COLO-S-1517
- Condition:Used
- Voltage:220-600V 3phase
- Exhaust Fan:2.2kw
- Air Flow:4000m3,H
- Filter Cleaning System:Pneumatic
- Filters Hang Type:Easy for Change
- Filters Count:3 PCS
- Filter Size:325*900mm
- Filter Material:Polyester
- Operator Dimensions:W1500*D1000*H1700mm
- Application:Metal Powder Coating Collection
- Controller Language:English, Spanish, as Required
- Drawing:Avaiable
- Coating Spray Gun:Option
- Powder Coating Oven:Option
- Light:2 Sets
- Transport Package:Wooden Carton
- Specification:7CBM
- Trademark:HICOLO
- Origin:China
- HS Code:8424899990
- Production Capacity:200PCS Per Month
Description
Basic Info.
Model NO. COLO-S-1517 Condition Used Voltage 220-600V 3phase Exhaust Fan 2.2kw Air Flow 4000m3/H Filter Cleaning System Pneumatic Filters Hang Type Easy for Change Filters Count 3 PCS Filter Size 325*900mm Filter Material Polyester Operator Dimensions W1500*D1000*H1700mm Application Metal Powder Coating Collection Controller Language English, Spanish, as Required Drawing Avaiable Coating Spray Gun Option Powder Coating Oven Option Light 2 Sets Transport Package Wooden Carton Specification 7CBM Trademark HICOLO Origin China HS Code 8424899990 Production Capacity 200PCS Per MonthProduct Description
COLO Compact Powder Coating Spray Booth with Powder Recovery SystemAn economical solution for basic powder coating operations requiring reclaim capability in continuous production situations.
COLO-S-1517 Powder coating booth provides a bright and clean environment for spraying process. Space-saving manual powder booth features easy and economical for powder application of small and medium-sized workpieces.

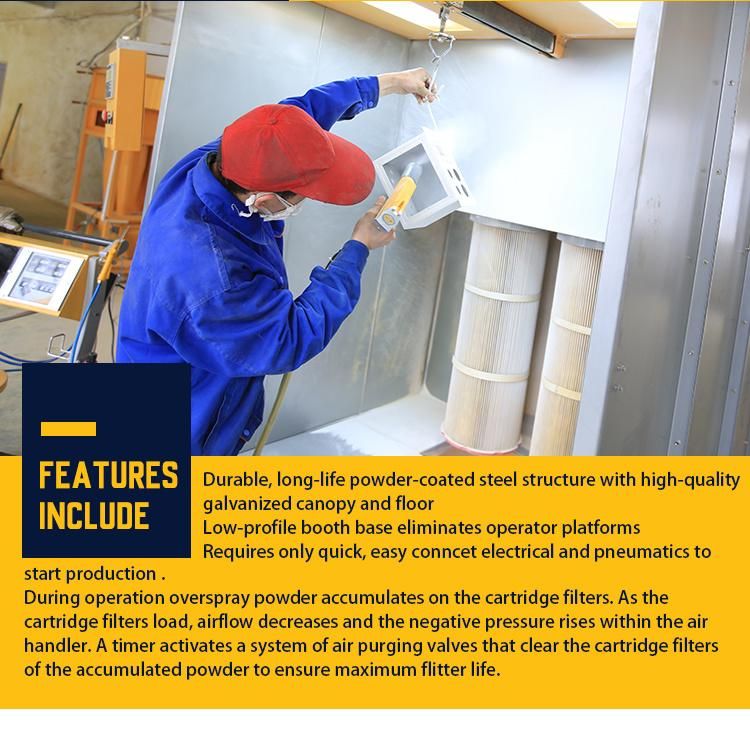

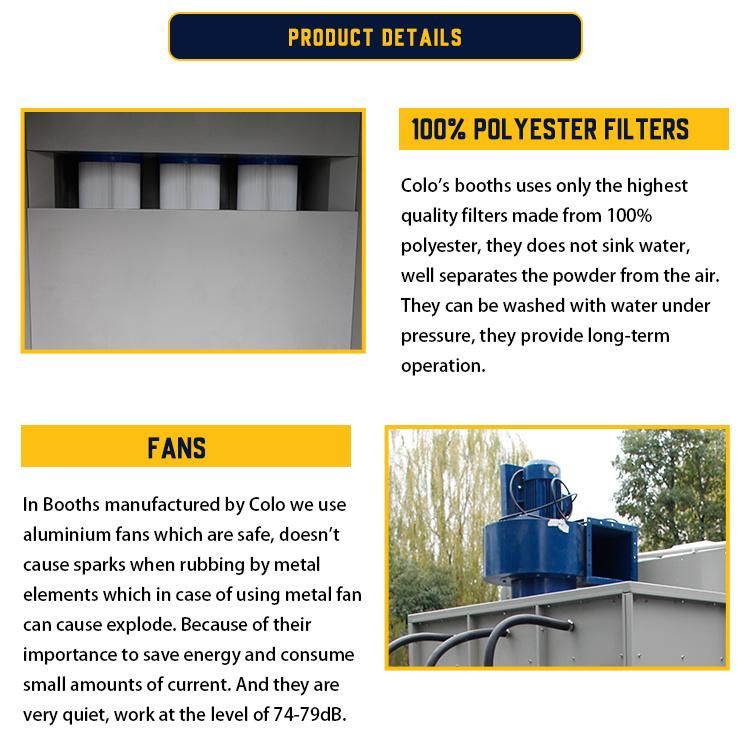

An integrated and innovative powder collection module is designed for effectively capturing oversprayed powder. The pneumatic controlled pulse-jetting system regularly cleans filter to prevents powder accumulation and extend filter life.
- All components with premium quality and performance to get an ideal cleaning and powder recovery.Manual Powder Coating Booth for wheel rim Feature:
1. A high-performance fan efficiently circulate air with low noise and less energy.
2. 0.1 Micron high-precision filters ensures only particle-free air discharged to workshop and increase powder recovery rate.
3. Powder-coated steel constructed booth is corrosion resistant for longer service life.
4. A removable powder hopper at booth bottom simplifies the utilization of recovery powders
6. A user-friendly PLC panel integrates all functions, such turning on / off fans, setting pulse-jetting time and interval, light on/off, emergency stop etc.

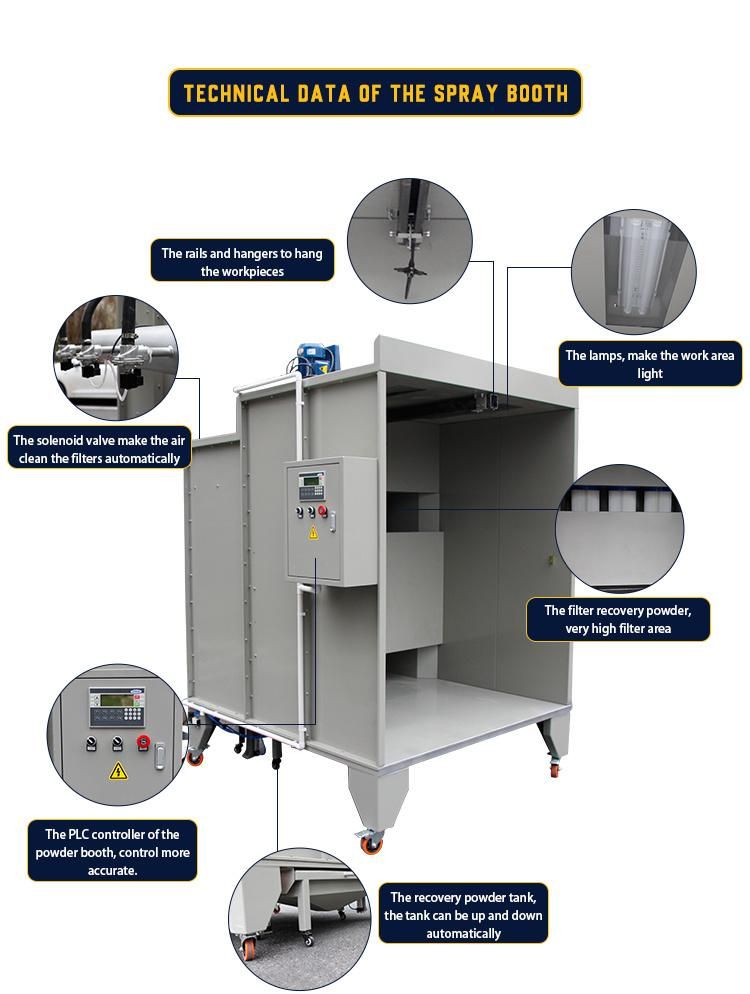

Manual Powder Coating Booth Specifications:
Model | COLO-S-1517 |
Operating Dimensions | Width1500*Depth1000*Heght1700mm |
Overall dimensions | Width1600*Depth2000*Heght2250mm |
Weight | 480kg |
Power Supply | 220V/380V, 3Phase, 50-60HZ |
Fan Power | 2.2kw |
Filter Count | 3 pcs, Quick-release Type |
Filter Material | Polyester |
Filter Cleaning | Pneumatic |
Air Consumption | 4000m^3/h |
How does powder coating booth work?
The powder spray booth fan draws air through filters that creates a negative pressure in the chamber, thus oversprayed powders in the air flow will gather in the filters while an automatic pulse-jetting device cleans the filter by interval, through which powders drop into a recovery hopper beneath the booth.
