• Model NO.：1325
• HS Code：8205300000

Basic Info.

Model NO. 1325 HS Code 8205300000

Product Description

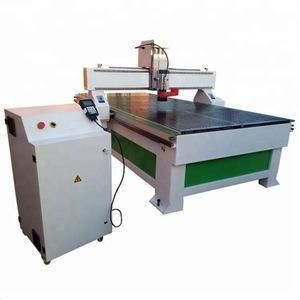

CNC engraving machine technical parameters:
Name:carving machine
Model:1325
working range:1300mm*2500mm*200mm
peculiar setup :2.2KW (standard water-cooled spindle, can choose 3.5kw, 4.5kw, 5.5kW [] [] air-cooled water-cooled spindle)supply voltage :220V-380V /50HZ
milling cutter diameter :Ф3.175/Ф6(Convertible greater diameter)
main shaft speed:0-24000(r/min)
working table:Aluminum + vacuum adsorption bakelite board (optional)
Machine tool material:Solid cast iron
Control system: macro control system (can choose DSP control handle)
Engraving software: Thai /Tpye3/Artcam CAD/CAM software
Code format: G code HPGL, NC format
Driver: leadshine 860
Packing: packing domestic standard wooden box
Woodworking engraving machine, engraving machine performance characteristics
1, Software controls spindle running, automation is strong
2, Fast speed, high efficiency, idle speed is more than 8 m / min..
3, Low noise, high strength, long service life.
4, Dual motor drive, double gear transmission, power, smooth transmission, to ensure long time high-speed operation without shaking.
5, The steel structure, support intensive endurance, on average, can reduce the deformation of the machine.
6, The whole cast platform, finishing production, ensure the body type, imported linear square rails, double four ball slider, loading capacity, smooth operation, high precision, long service life, imported ball screw, Z axis on both upper and lower surfaces of the double side pattern carving, to ensure consistency, the table surface can be adjusted up and down, the knife is flexible.
Range of application
  The furniture industry can be used in woodworking engraving machine, woodworking furniture decoration industry, decoration industry, instrument industry, handicraft industry, the machine is suitable for large area plane plate engraving, wood furniture, carved wood art murals, sculpture, wood carving, MDF Mianqi door carving, window door carving is a substitute for the furniture industry..
Wooden industrial products: such as sewing machine table panel, electrical cabinets, sports equipment and so on. Can carve each kind of mold, wood, wooden propeller, aviation, automotive foam mold. The musical instrument industry: 3D surface, shape cutting carving instruments. Advertising engraving machine with the understanding of the advertising engraving machine and control application the scope and application level will gradually increase, such as advertising, seal industry, craft gifts industry, art model industry, wood processing industry, mold industry and so on. Machinable materials including acrylic, double color plate, PVC board, ABS, stone, artificial stone, metal, aluminum plate and other materials.
Advertising:Engraving, cutting all kinds of signs, seat plate, marble, copper, font, font, various types of marks, trademarks and other metal materials.
Artwork industry:Crafts, souvenirs making all kinds of text, graphics, iron art sculpture, dial.
Die processing:Building model, physical model, stamping die, motor, high frequency mold, micro injection mold, shoe mold, badge, embossing mold, biscuit, chocolate, candy molds.
Stamper industry:In the horn, plastic, wood, organic board, storage pad material and then seal engraving.
