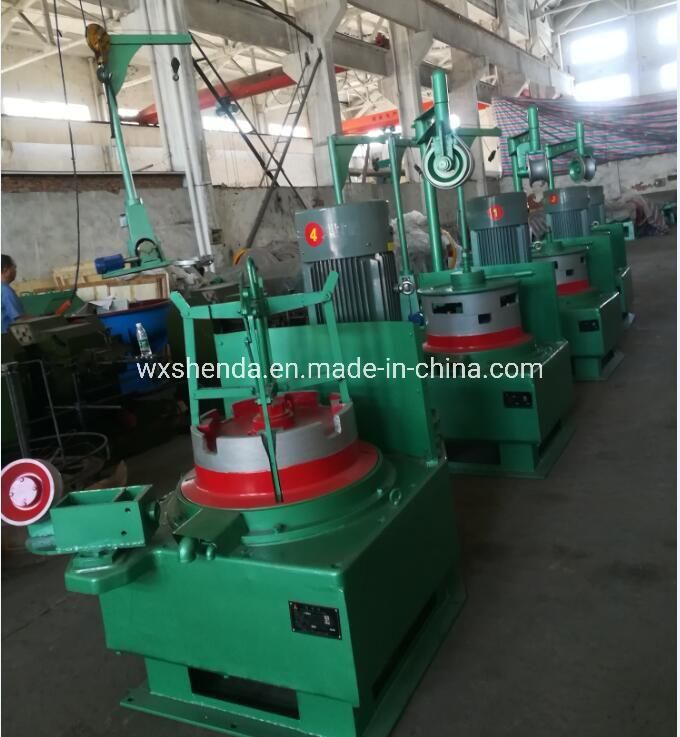

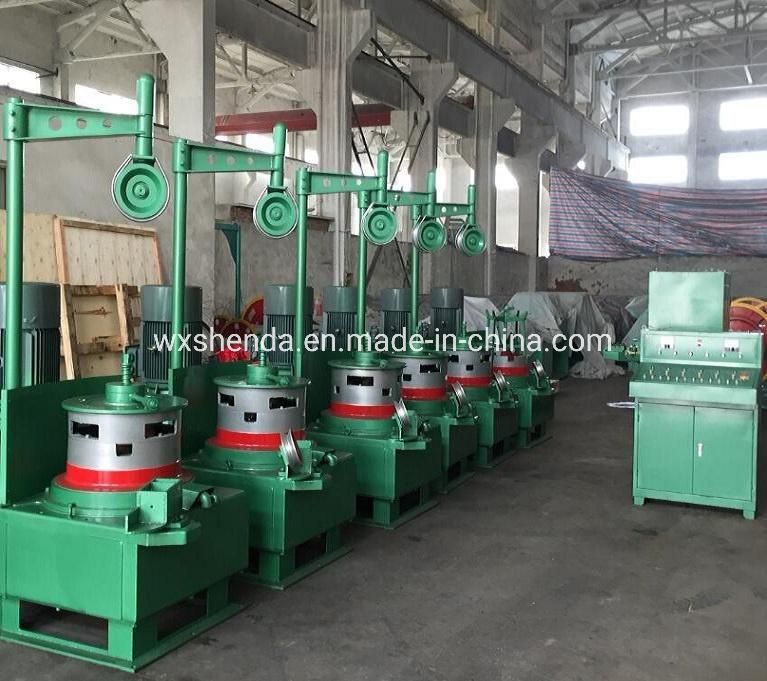

China Suppliers Cold Wire Drawing Machines for Low/Medium/High Carbon Nails
Wuxi Shenda Nail Machinery Factory- Type:LW Pulley Type Metal Drawing Machine
- Usage:Wire
- Metal Material:Steel
- Outlet Diameter:0.4-3.5mm
- Max.Inlet Wire Dia.:3.6mm
- Block Dia.:450mm
Base Info
- Max. Number of Block:15
- Certification:REACH, ISO
- Condition:New
- Transport Package:Suitble for Shipping
- Specification:1500x1300x1200mm
- Trademark:Shenyida
- Origin:Wuxi China
- HS Code:8463300000
- Production Capacity:100PCS,Month
Description
Model
LW- 1-6/ 560
LW-1-7/450
LW-1-6/350
Tensile strength of wire rod
110kg/mm2
128/mm2
140/mm2
Max. dia. of wire rod
6.5mm
3.4mm
2.5mm
Min. dia. of wire wire
2.5mm
1mm
0.75mm
Typical configuration
LW1- 6/560
LW1-7/450
LW1-6/350
Max. average reduction
30%
20%
21%
Designed total reduction
78-88.5%
78%
Max. speed of block
245 m/min
346.9 m/min
200 m/min
Total power
18.5-30kw
7.5-11kw
7.5-11kw
Weight
2000
1500
1000
Overall dimensions(LxWxH)
170x115x175cm
152x81x170cm
140x80x150cm
FAQ
QUESTION1:Do we need wire drawing machine when nail making?
A1:The raw material with diameter 6.5mm/6.0mm/5.5mm will be drawed to smaller diameter so as to making nail in the nail making machine.
QUESTION2:How many ton does one machine make per day
A2:The output for each model nail machine by pcs/min.So the weight is diffent if diameter and length different.We can calculate if you supply all size
QUESTION3:How can you guarranty the machine quality?
A3:All machine with 12 month guarranty as soon as machine arrive customer.And our machine is developed products which have planty working in lots of countries.
QUESTION4:How long is the machine delivery time?
A4:Usually there will need 10days for normal machine ,And if the machine order order to make will take a bit long time .Because normal model machine we have stock for sale.
