• Model NO.：Z94-C
• Production Capacity：110PCS,Month

Basic Info.

Model NO. Z94-C Production Capacity 110PCS/Month

Product Description

Top quality Steel Nail Making Machine/Small Factory Nail Making Machine Price

My contact Way
My mobile: 86-15251635399
Contactor: Echo Shi

Our Factory
Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995.

Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.

Time proves we are a professional factory with stable quality and competitive price.
We provide one-stop service from design to installation

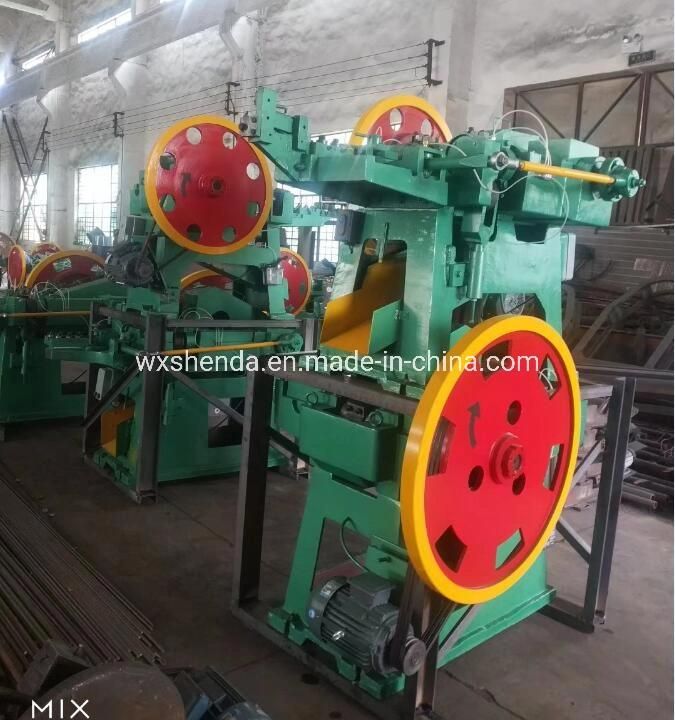

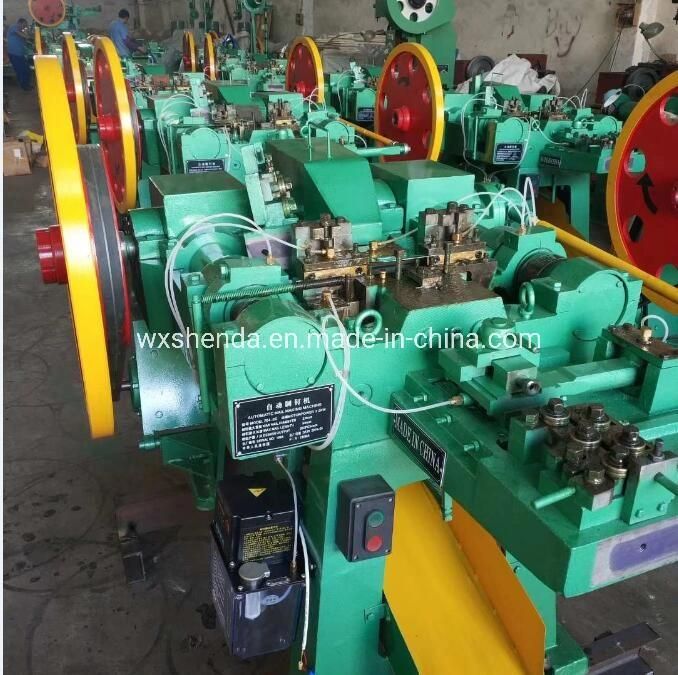

Nail Making Machine
Nail Length: 9-310mm
Nail Diameter: 0.9-6.5mm

This machine adopts plunger type stricture so as to ensure the features such as high speed,low
noise and less impact . Especially , it can make the high quality of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun.

Each model machine could make different kinds size nail,the nail length could adjust on machine and nail diameter need feed with related diameter coil wire.

Each nail making machine supply related nail mould ,nail knife and punch pin ect spare parts

Model	Z94-1C	Z94-2C	Z94-3C	Z94-4C	Z94-5.5C	Z94-6.5C
Max. dia. of nail	1.6mm	2.8mm	3.5mm	4.5mm	5.5mm	6.5mm
Min. dia. of nail	0.9mm	1.2mm	1.8mm	2.8mm	3.1mm	4.5mm
Max. Length of nail	25mm	50mm	75mm	100mm	150mm	200mm
Min. length of nail	9mm	16mm	30mm	50mm	80mm	100mm
Motor power	1.5kw	2.2kw	3kw	4kw	5.5kw	11kw
Nail making speed	450pcs/min	350pcs/min	320pcs/min	260pcs/min	200pcs/min	180pcs/min
L*W*H	1.5*1.3*1.2m	1.7*1.3*1.4m	2.0*1.4*1.4m	2.2*1.6*1.65m	2.5*1.6*1.5m	3.5*1.9*1.8
Weight	1.2tons	1.45tons	1.8tons	2tons	2.3tons	5.5tons

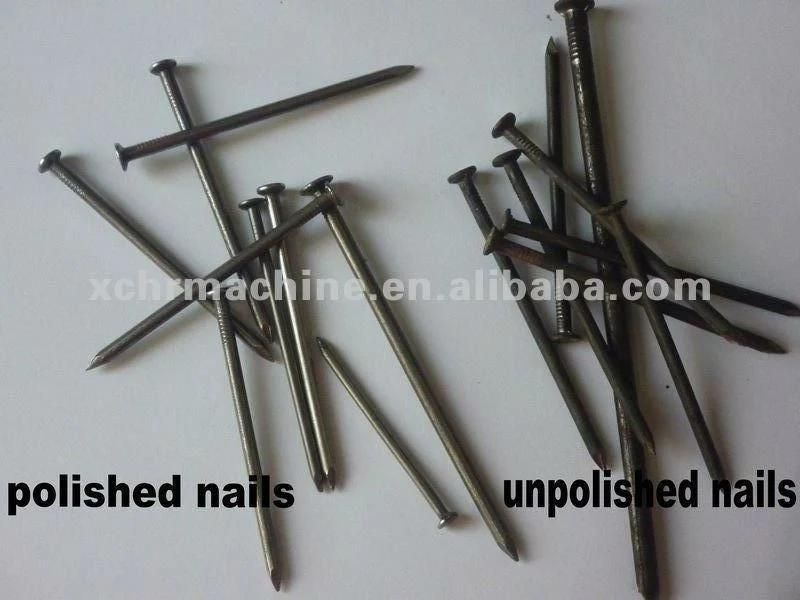

After nail making, polishing machine makes the nails clean &bright.

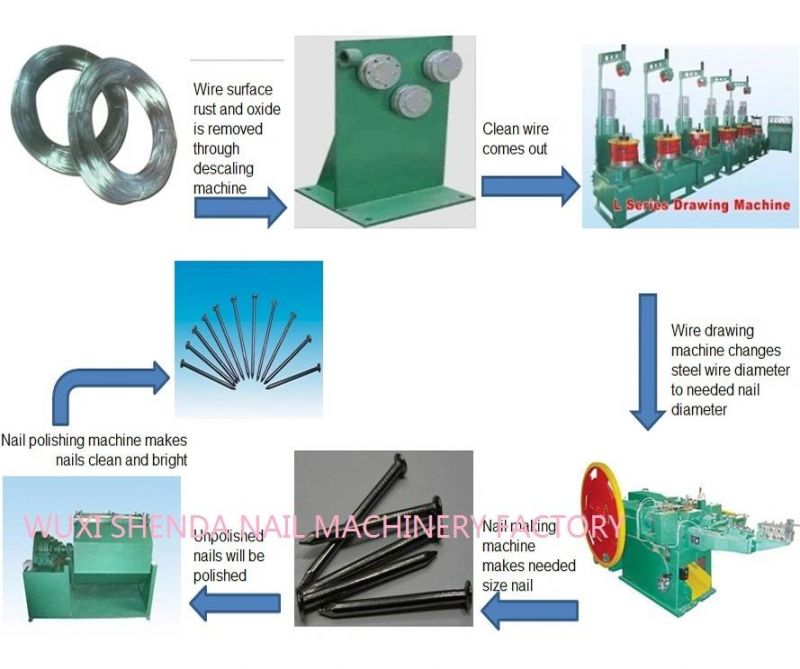

For your reference, the whole nail making process as follows:


Our service:
Your concern is our concern!Your win is our win! We expect double-win!

Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
After-sales service:
1 years quality guarantee, Life-long Maintenance
