• Model NO.：Y81F-1250 Automatic UBC Baler
• Warranty：12 Months
• Cooling System：Water or Air Cooler
• Color：Customer Decide
• Control System：Manual,PLC
• Transport Package：Nude Package or Wooden Cases
• Specification：ISO 9001: 2008; CE; SGS
• Trademark：TIANFU Automatic UBC Baler
• Origin：Jiangsu Prov. China
• HS Code：8462919000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. Y81F-1250 Automatic UBC Baler Warranty 12 Months Cooling System Water or Air Cooler Color Customer Decide Control System Manual/PLC Transport Package Nude Package or Wooden Cases Specification ISO 9001: 2008; CE; SGS Trademark TIANFU Automatic UBC Baler Origin Jiangsu Prov. China HS Code 8462919000 Production Capacity 50 Sets Per Month

Product Description

Product Description


1. Product Application

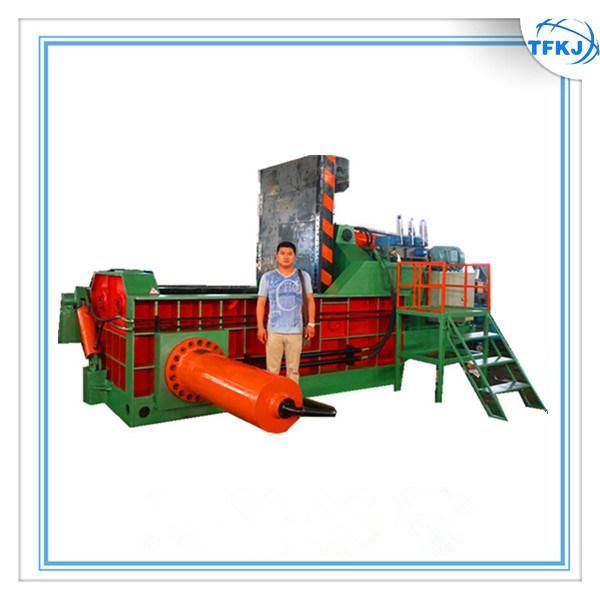

Item: Y81F-1250 Metal Recycle Automatic UBC Baler

Automatic UBC Baler is capable of extruding various metal leftover,steel paring,waste copper,aluminum, stainless steel and scrapped car into regular charging as square, column,cylinder etc. different shapes.

By this way, the costs of transportation and refining can be reduced. It also makes the transportation easier and faster.

Automatic UBC Baler is mainly used in steel plants,recycling corporation,waste recovery and metal refining industry. Size of compression chamber and bale can be customized.
All machine modes adopt hydraulic driving. manual operation and PLC automatic control can be chosen.


2. Technical Parameters

Model	Main cylinder force (ton)	Feed box size (mm)	Bale size (mm)	Bale weight ( kg)	Motor (kw)
Y81-1250	125	1200*700*600	300*300	50-70	15
Y81-1600A	160	1600*1000*700	350*350	100-180	22
Y81-1600B	160	1600*1200*800	400*400	100-200	30
Y81-2000A	200	1600*1200*800	400*400	120-220	37
Y81-2000B	200	1800*1400*800	450*450	180-350	44
Y81-2500A	250	1800*1200*800	400*400	200-400	44
Y81-2500B	250	2000*1400*900	500*500	200-450	44
Y81-2500C	250	2000*1750*1200	500*500	200-450	60
Y81-3150	315	2600*2000*1200	600*600	400-700	90
Y81-4000	400	3000*2000*1200	600*600	500-800	90



3. Main Features
1) Hydraulic drive,PLC or hand valve control
2) No need for foot screws
3) Integral design, no need to install
4) Pressing force ranges from 125T to 1000T.
5) We are factory with strict quality control.

4.Detailed Machine Parts:
1) Name: Guard Board
we use imported HARDOX NM500 wear plate on the gate and feed box.
make the machine stronger and more wear-resisting.
extend the machine service life

2)Name: High Pressure Hose Joint
abandon screw-type coupling, and adopt FAS sealing flange which has better sealability.
better anti-vibration
better resistance to leaking

3) Name: Blade
we use blades on the door sides and feed box sides.
The blades can cut the extra scrap when machine working, better to protect the machine.

4)Name: Water Cooler
every machine will equip a water cooler.
It can reduce the oil temperature, avoid too high oil temperature.


Youtube Link:
(welcome to visit our youtube channel)
https://jytfkj.en.made-in-china.com


5.FAQ
1)  Are you a factory or trade company?
We are manufacturer with own factory for 15 years, export proportion 70~80%.
2) How can i trust your company?
a. With professional design and sales team, we can serve you the perfect solution with lowest cost.
b. Assessed by third party, national patents for all equipment, also CE, ISO.
c. Agents in RU, UKR,MYS,PH; Users around the world.
d. Welcome to inspect anytime. We are near to Shanghai airport.
e. About the machine, we do much better on:
Wear plates, seals, structure design, pressure head.
3) How about the test running & installation?
Before delivery, we finish the test over 3times.
If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
4) Any warranty?
Under the proper usage, one year for whole machine except the wear parts.
5)  Is your price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
