Precision Straightener Machine Use 22 Thinnest Work Rolls (RLF-200)
GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.- Type：Balance Roller Straightening Machine
- Usage：Material Straightening
- Voltage：380V
- Automatic Grade：Automatic
- Principle：Large Deformation
- Certification：TUV, CCC, ISO9001, CE
Base Info
- Model NO.：RLF-200
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Material Width (mm)：20~200
- Material Thickness (mm)：0.1~1.4
- Speed(M/Min)：5~30
- Number of Work Rolls：Upper11 ,Lower11
- Motor(Kw)：1.5
- Transport Package：Wooden Box or Vacuum Packing
- Specification：1380*920*1400mm
- Trademark：RUIHUI
- Origin：China, Dongguan
- Production Capacity：30 Sets Per Month
Description
1.Oiling device:An electromotive pump forces oil to the work rolls.
This oiling device eliminates the need for troublesome maintenance work and supports the optimal operation of the remaining quantity of oil can be checked at a glance,and oil can easily be added.
2.The amount of flatness-adjustment can be easily controlled throught the operation of handles.
The amount of flatness-adjustment can be controlled not only at the inlet and outlet sides.but also at the back and front sides simply through the operation of handles.
3.Work rolls:Precision machining using 22 work rolls with the thinnest diameter.
22 work rolls with the thinnest diameter [φ12mm] on the market remove residual stress.Wide sheet metals of up to 300mm in width can be handled,which satisfies the increasingdemand for precision components machining.
4.Caster base:A caster base with locking casters for easy movement and fixing is included as standard equipment.
The caster base enables flexible setting of the leveler.
5.Drive unit:Drive unit with specifications of a higher-grade unit.
The drive unit is compact but has the highest-level specifications such as superior electromotive efficiency, oil-bath type gearbox, and a universal joint. The inverter in the drive unit enables flexible speed change.
6.Detection by a lightweight cam:The cam maintains the appropriate tension of the material and supports optimal operation.
The leveler ensures that the inverter always operates optimally in accordance with the line speed. Smooth acceleration and deceleration reduces loads imposed on materiales and equipment such as the feeder. Forward and backward operations can easily be changed simply by flicking a switch.
7.Inventive antenna type detection bar.
The ultra lightweight detection bar can be operated with only 10g of operation force and can detect both conductive and non-conductive thin sheet metal. Furthermore, a unique curved shape prevents scratches on the material surface for worriless operation.
Q1:What are your equipments certification?
All our items are coming with CE certifications.
Q2:How did your company's quality system work?
"QUALITY IS OUR CULTURE" Our quality is not the best in the world, and the price is not the cheapest. But we can provide you excellent products to defeat your competitors.
Q3:How long is the warranty period of the machine?
We offer free service with a warranty period of one year, If it is operate in reasonable, the machine can be used more than 10 years.
Q4:Are you a trading company or a manufacturer?
Both. RUIHUI MACHINERY one of the market leader for Press Automation Machine more than 15 years.
Q5:Is it possible to be a foreign agent and distributor?
If you are confidence and excellent service for after-sales, then welcome to be our agents or distributors all over the world.
Q6:What's your payment?
T/T,D/P,L/C,Western Union., etc
Q7:What's the delivery?
"TIME IS GOLD" for you and for us, so we have professional team work and production line can make nice quality in short time.
Q8:What kind of industry do your customers mainly do?
Mainly automotive and home appliance,hardware industry customers.
RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less.
Customer case
Manufacturing industry; the United States Lear Co, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.
And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.
hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.
RUIHUI has been established over the years, the company steady business, products are constantly upgrading, from the original simple roller feeder to NC servo feeding machine, NC 3 in 1 straightener feeder,multi station manipulator, coil handling systems, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

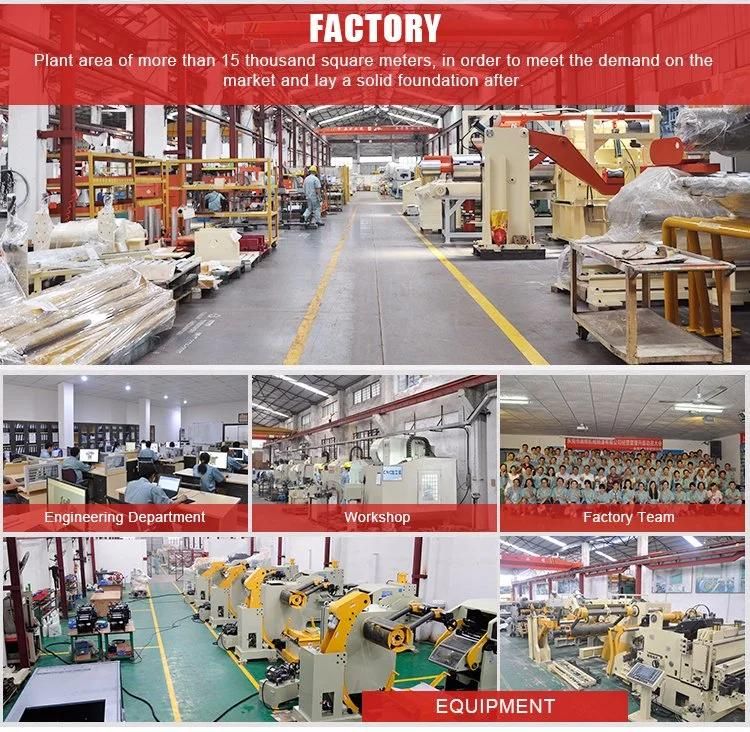

At present the company to further develop the market, at the end of 2013, the total investment reached 30 million yuan, plant area of more than 15 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.
Why choose us?
1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval.
