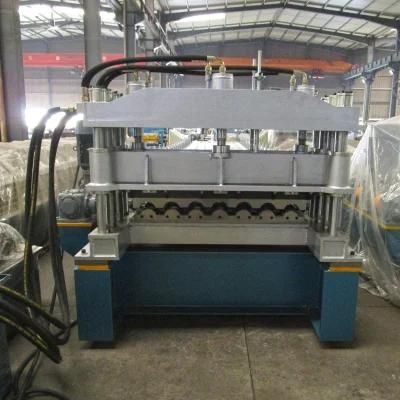

• Model NO.：Corrugated Profile Machine
• Transport Package：Suitable for Sea Transport
• Specification：1*40GP Container
• Trademark：Zhongyuan
• Origin：Zhejiang, China
• HS Code：84552210
• Production Capacity：20sets,Month

Item

Specification



Material

Type

Pre-painted steel coil & galvanized coils

Thickness(mm)

0.18-0.23

Yield strength(mpa)

235-345

Roller material

No.45 forged steel

Forming speed(m/min)

About 20

Output speed(m/min)

20

Speed adjusting mode

AC Frequency

Material width

1200mm

Cutting mode

Hydraulic cutting

Cutter material

Cr12 mould steel

Length measurement

Encoder

Control mode

Mitsubishi PLC

Cover width

1000mm

Main motor power

7.5KW

Total power

9.7KW

2. Components of Rolling forming machine

Decoiler
(manual/ hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1.5m/ pc, 2 pcs

3. Process flow of Rolling Forming Machine

Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table

Packing:
1. One 40feet container for loading one set tile formign machine with mechanical decoiler.
2. Main formiong machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery:
about 60 days after received advaced payment

We customize your machines!

To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker

Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!




Certificate:



FAQ:

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).


Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
