• Model NO.：LMH
• Trademark：Zhouxiang
• Origin：China
• HS Code：8468800000
• Production Capacity：20sets,Month

Model

LHM-4000

Rail gauge

4000mm

Web height

200~1500mm

Flange width

200~800mm

Work-piece length

4000~15000mm or as user's request

Model of welding machine

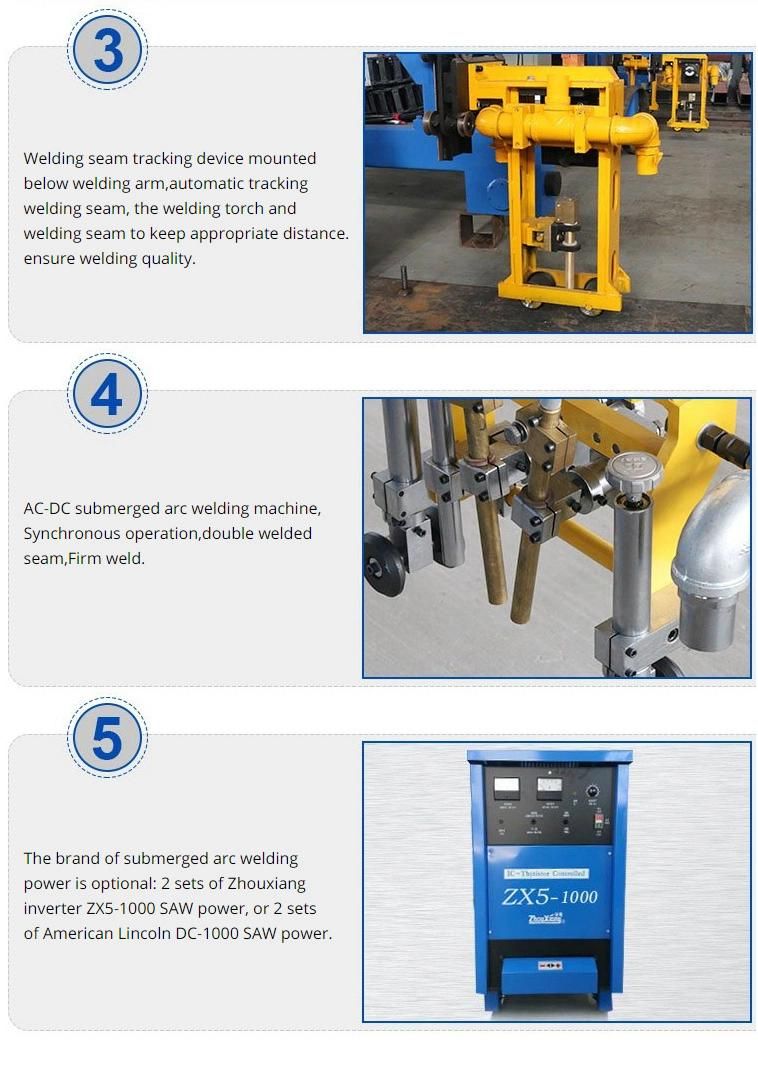

Two sets of ZX5-1000 automatic submerged arc welding machine

Welding type

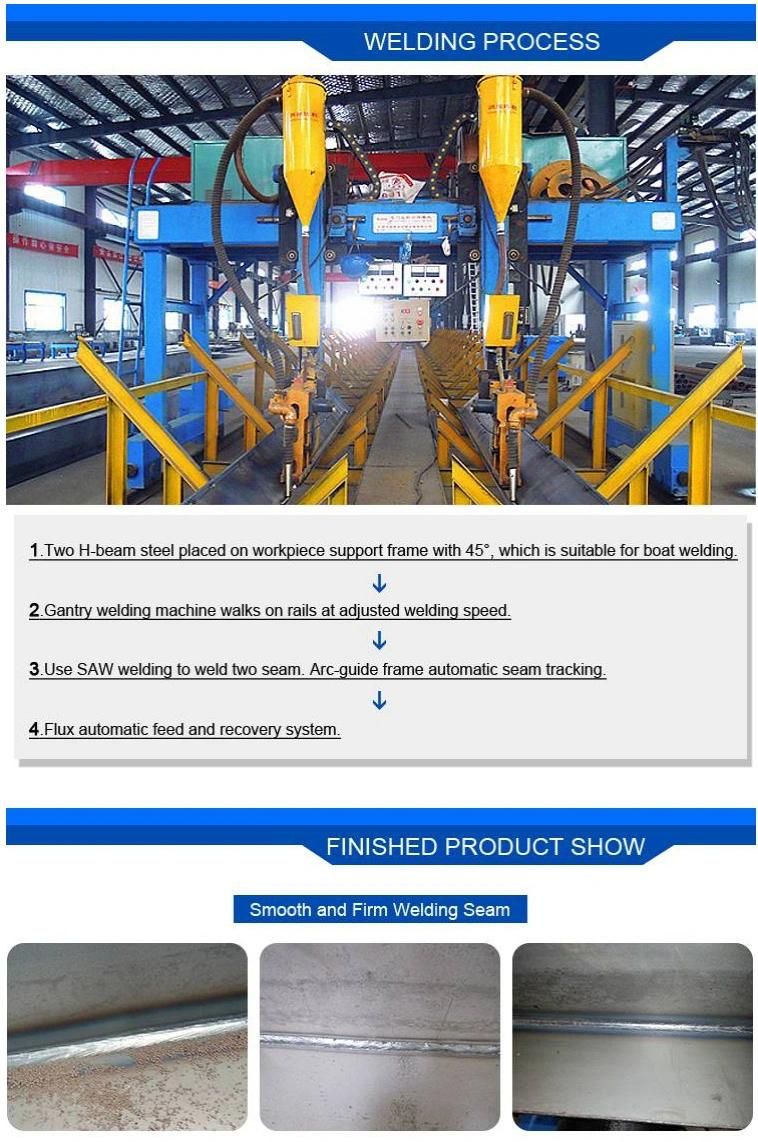

Boat-type welding

Welding speed

0.15~1m/min

Returning speed

3m/min

Overall power

9.6kW

Above are our standard model, it can be designed and manufactured according to customer's request.

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including  Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.
We have high sincerity to do business with customers all over the world and establish good friendships.
