• Model NO.：UG-1530P
• Layout：Horizontal
• Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
• Automatic Grade：Semi-Automatic
• Power Source：Electric
• Cutting Mode：Plasma & Flame Cutting
• Working Area：1500*3000mm
• Thc：Torch Height Control System(Hyd,China)
• Control System：Starfire, Supports Plate & Tube Cutting
• Plasma Power Supply：120A, China Huayuan Lgk-120IGBT
• Cutting Thickness：20mm
• Traveling Speed：20000mm,Min
• Working Table：Tooth Type Cutting Blade with Water Table
• Fume Extracting：Blower Type
• Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan, #20)
• Nesting Software：Fastcam( Original)
• Rotary Axis：Diameter 200mm, Length 3000mm
• Cutting Torch：Both Plasma & Flame Cutting
• Lubrication System：Semi-Auto
• Voltage：AC380V, Three Phases
• Transport Package：Plywood Case
• Specification：2950*2270*2030mm, 1600kgs, one plywood case packin
• Trademark：UPGOAL
• Origin：China
• HS Code：8456401000
• Production Capacity：200set Per Month
• Package size per unit product：395.00cm * 227.00cm * 203.00cm
• Gross weight per unit product：1600.000kg

Basic Info.

Model NO. UG-1530P Layout Horizontal Cutting Material Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel Automatic Grade Semi-Automatic Power Source Electric Cutting Mode Plasma & Flame Cutting Working Area 1500*3000mm Thc Torch Height Control System(Hyd,China) Control System Starfire, Supports Plate & Tube Cutting Plasma Power Supply 120A, China Huayuan Lgk-120IGBT Cutting Thickness 20mm Traveling Speed 20000mm/Min Working Table Tooth Type Cutting Blade with Water Table Fume Extracting Blower Type Guide Rail Linear Square Guide Rail ( Hiwin, Taiwan, #20) Nesting Software Fastcam( Original) Rotary Axis Diameter 200mm, Length 3000mm Cutting Torch Both Plasma & Flame Cutting Lubrication System Semi-Auto Voltage AC380V, Three Phases Transport Package Plywood Case Specification 2950*2270*2030mm, 1600kgs, one plywood case packin Trademark UPGOAL Origin China HS Code 8456401000 Production Capacity 200set Per Month

Packaging & Delivery

Package size per unit product 395.00cm * 227.00cm * 203.00cm Gross weight per unit product 1600.000kg

Product Description

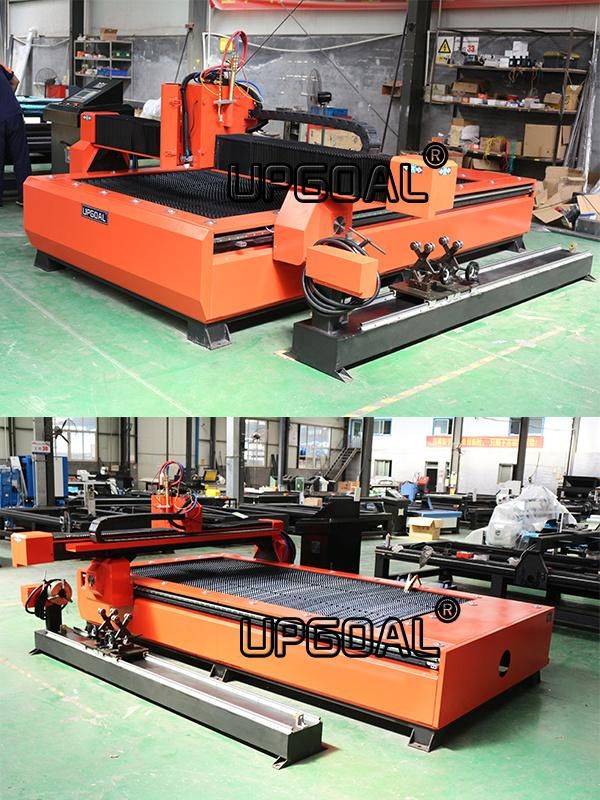

Industrial Metal Plate & Tube CNC Flame Plasma Cutting Machine 120A with Rotary Axis  1500*3000mm

Features

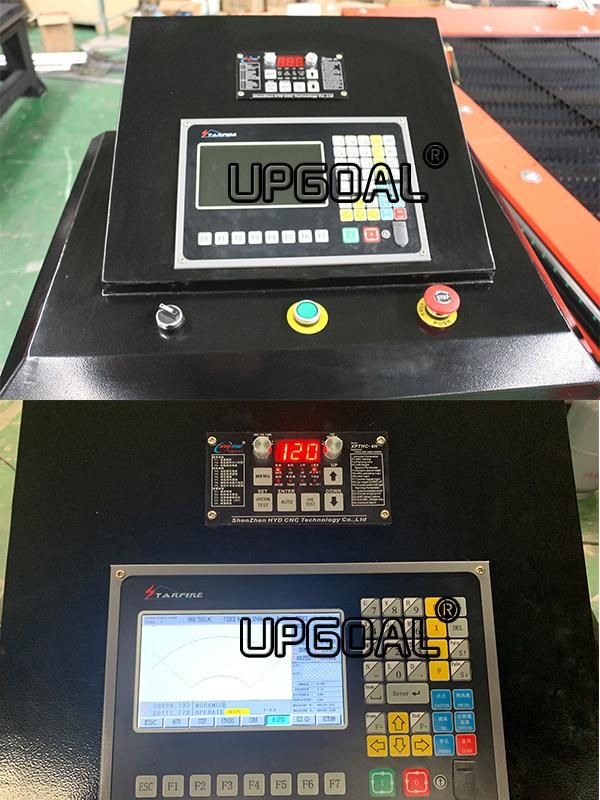

CNC Control system ( STARFIRE, Beijing, China, Supports both plate and tube cutting )


1. LCD, English display. Has the notes of each operation button on the bottom of displayer in time, so just needs short training, then the buyer can do independent operation, more convenient and easy to use.

2. Powerful anti-interference ability, moving stable and convenient.

3. With cutting compensation function, setting the required workpiece size in computer, nesting and output, can adjust the slotting size in the control system according to needs, easy and efficient operation.

4. Memory function after power failure and break point, no matter power failure or arc breaking during cutting, all can continue go forwarder or back-off following the cutting track.

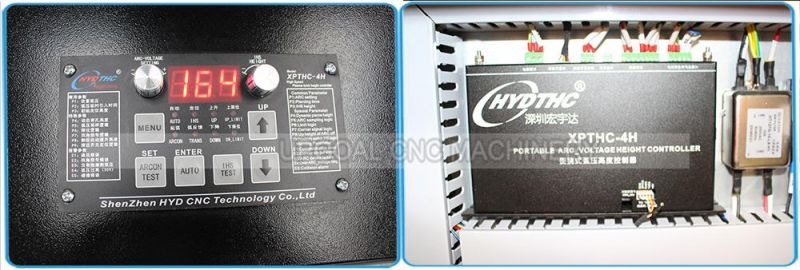

THC( Torch Height Controller, HYD, China )


1. With high sensitivity THC, auto adjusting the best cutting distance, ensuring the workpiece accurately cutting.

2. The torch has auto torch height controller, during cutting, the torch always keeps the same distance with the plate, extend the nozzle's life time, and get the high quality cutting effect.

3. Good anti jamming capability, stable performance

Z-axis plasma & flame dual cutting head(With anti-collision system and infrared positioning system for Z-axis)



1. Z-axis is lead ball screw transmission type, high speed, convenient maintenance,suitable for all kinds thickness of plates.

2. Can auto adjust the cutting distance for uneven plate, ensuring the same distance between the torch with plate, ensuring the cutting quality.

3. Special torch height controller can prevent the torch crash the plates effectively, protect the torch and long time using.

4. With anti-collision device, during the cutting, if torch crash accidentally, the machine will stop immediately, avoiding breaking the machine and thin plates is whiled away due to the cocking.

5. With infrared positioning system for cutting Z-axis

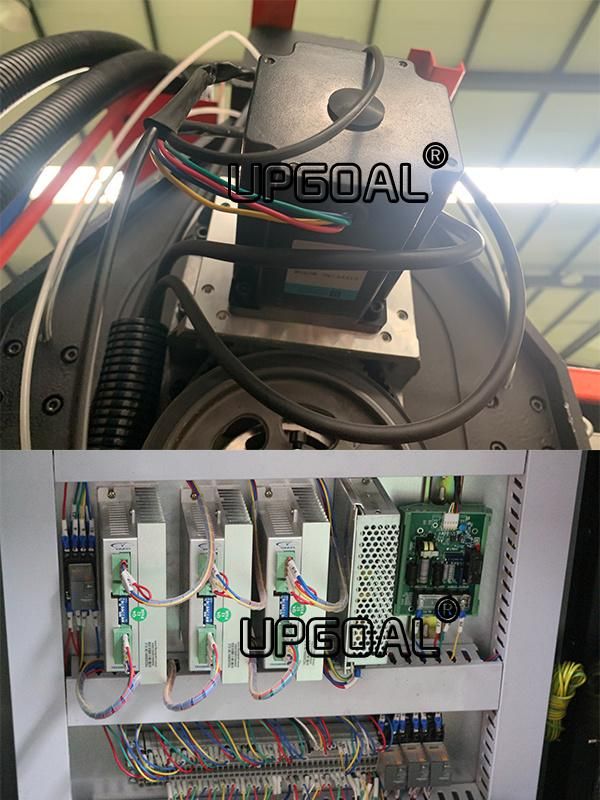

Motor & Drive ( China ChuangWei stepper motor 86BYGH450A and stepper driver Yako 2608)



1. Adopting China famous Chuang wei brand stepper motor and Yako stepper driver, stable performance, high response speed, good anti jamming capability.


2. All the machine's signal wire is high flexible shielded wire, heat resistant, low temperature resistant, bend resistant.

3. Control signal uses 24V voltage, with famous brand switch power supply.


Machine bed part

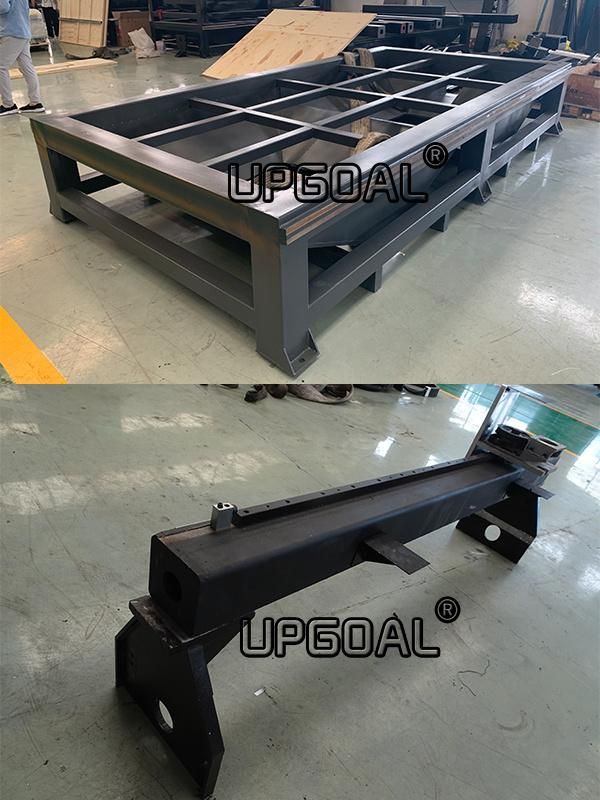

1. The whole machine bed adopts heavy duty welded steel structure and then precision-machined, whole tempering, fully eliminate welding stress, stable and reliable performance. Heavy square ssteel tube welded gantry, improving stablity & moving precision.

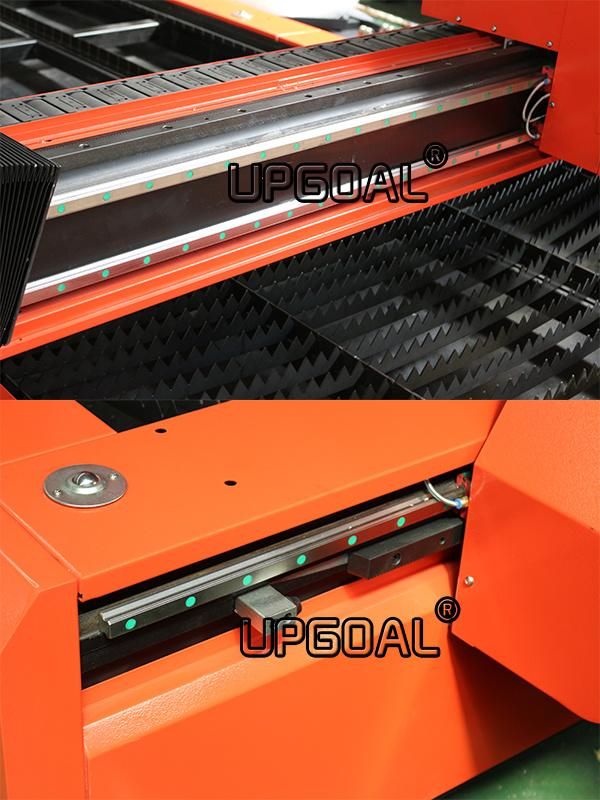

2. Dual driving for Y-axis, XY-axis adopts high precision linear square guide rail, Hiwin, Taiwan, good oriented, high precision. Transmission is high precision helical rack and pinion, customized by the specialized manufacturer, surface carburizing quench, stable moving and high precision.



3. Dust proof system on the gantry, effectively prevent the dust going into guide rail and rack during cutting, extend the machine life time, also make machine more beauty,

4. Special fume dust extractor,and down draft cutting table and slag storage device, create a good working environment.

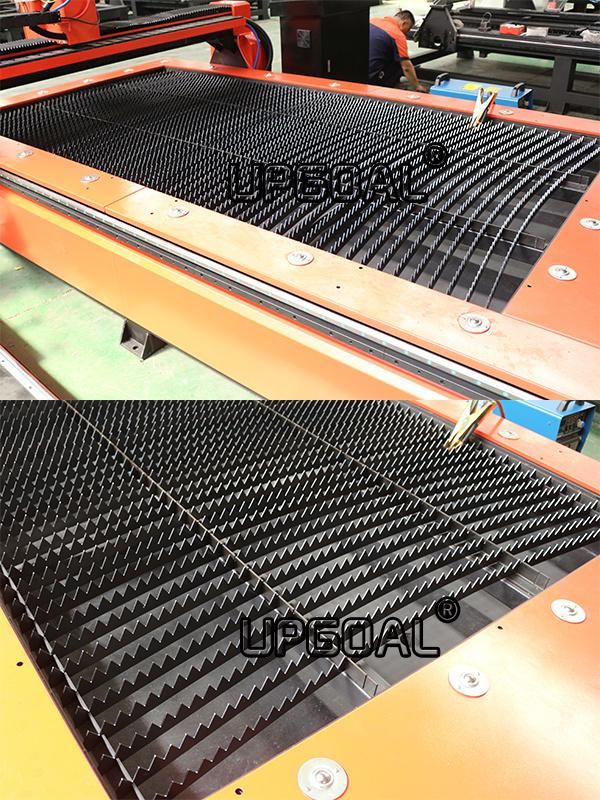

5. Tool type cutting blade with feeding wheel, better for cutting.

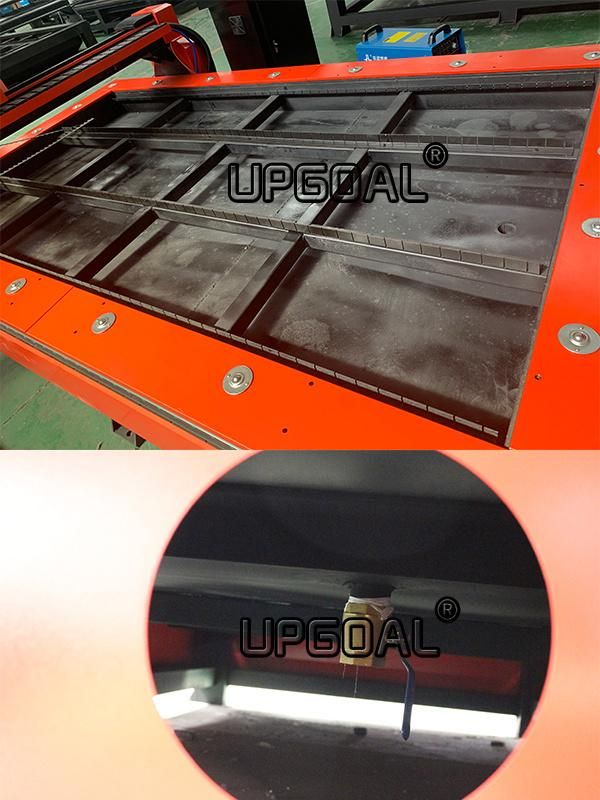

6. Water table structure( cutting on the front of water), remove the smoke, create a good working environment.


Nesting Software

1. Austria FastCAM automatic programming and nesting software

2. Auto programming, parts generated and nesting softare professionally drawing and cutting control With the post processor for graphic transformation and nesting.

3. Realizing the edge-shared nested during cutting, saving time and materials.

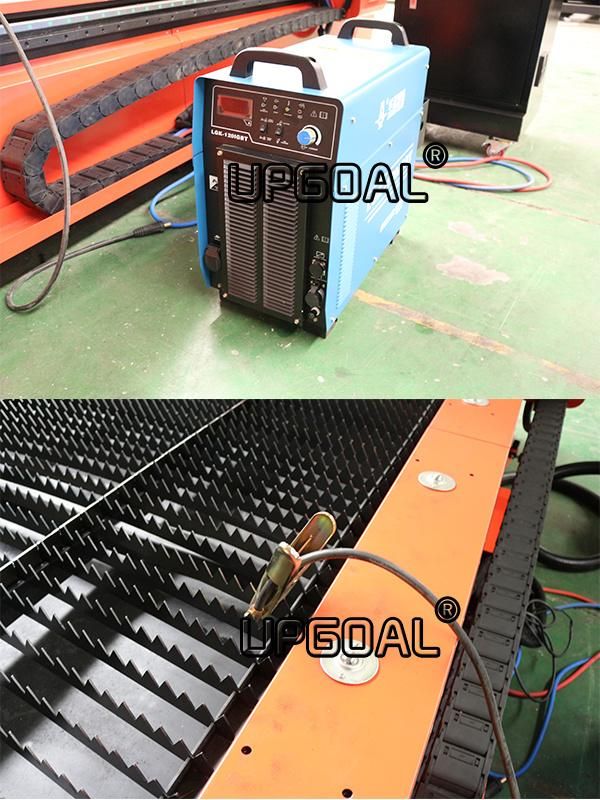

Plasma Power Supply

Adopting China Huayuan LGK-120IGBT 120A plasma power supply, cutting ability 0-20mm

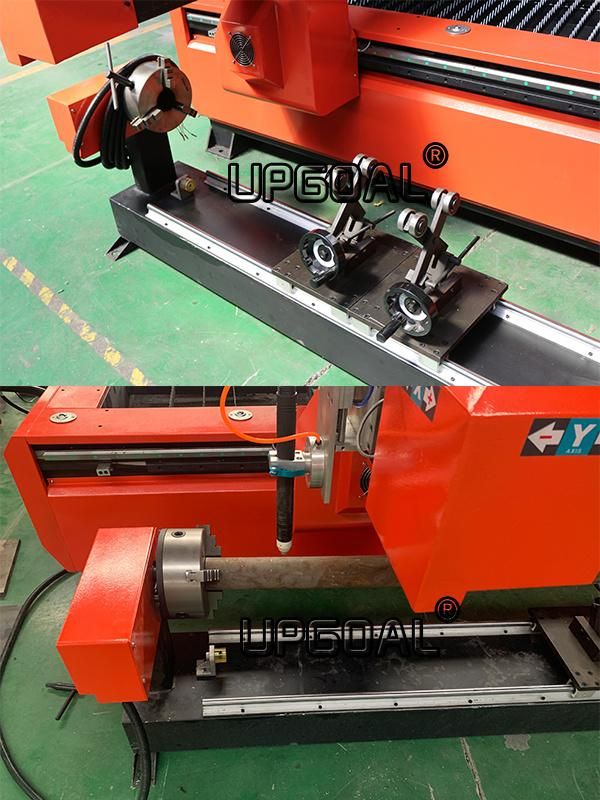

Rotary axis for tube cutting: diameter 200mm, length 3000mm, reduction gear transmission

Technical Parameters

Cutting width	1500mm
Cutting length	3000mm
Rotary axis	diameter 200mm, length 3000mm, reduction gear transmission
Material	Heavy duty strong welded square steel tube structure for whole machine
Control system	STARFIRE( for both plate and tube cutting)
THC( torch height controller)	THC( HYD, China)
Plasma power supply	China Huayuan LGK-120IGBT(120A)
Cutting thickness	0-20mm
Cutting head	Plasma & flame double torch
Traveling speed	20000mm/min
Cutting speed	Adjusted according to material's thickness
Working table	Thickness tooth type cutting blade with water table
Guide rails	Linear square guide rail ( Hiwin, Taiwan, diameter 20mm)
Transmission	Helical rack and pinion transmission for XY-axis, lead ball screw transmission for Z-axis
Driving system	Stepper motor(86BYGH450A, CW) and Stepper driver (Yako 2608)
Lubrication system	Semi-auto
Positioning system	Infrared
Anti-collision system	Yes
Power supply	AC 380V, 50/60Hz, three phases

Applications

Suitable for nonferrous metal sheet, stainless steel plate, carbon plate,  aluminum plate, galvanized plate, white steel plate, titanium plate, etc materials automatic cutting.

Application: Metal processing, machine manufacturing, auto spare parts, ventilate environment protection, steel structure shipbuilding electrical product's shell processing, advertisements and signs, decoration, iron art garden, auto making, ship's electrical parts& plates cutting.

Introduction

CNC plasma cutting machine has solved problem for follow-up processing for small holes after cutting plates, economic, energy conservation and environment protection, high improve the working efficiency, lowing the processing cost, has the ability of combine machining, fully effective the machine performance.
