Screw Thread Steel Bar Forging Upsetting Machine

Henan Yugong Machinery Co., Ltd.
  • Type:Forging Operation
  • Forging Forming Method:Mold Forging
  • Power Source:Electric
  • Feature:Automation
  • Certification:ISO9001, CE
  • Customized:Customized

Base Info

  • Advantage:Use Widely
  • Condition:New
  • Name:Upsetting Machine
  • MOQ:1 Set
  • Hydraulic Fluid:68#Antiwear Hydraulic Oil
  • Usage:for Steel Upsetting
  • Max Pressure:31.5MPa
  • Quality:Good Performance
  • Efficiency:300-500 Pieces
  • Processing:12-40mm
  • Power Range:7.5kw
  • Cylinder Diameter:220mm
  • Transport Package:Wooden Case by Sea
  • Specification:900-1000kg
  • Trademark:YG
  • Origin:China
  • Production Capacity:350sets,Month

Description

Basic Info.

Advantage Use Widely Condition New Name Upsetting Machine MOQ 1 Set Hydraulic Fluid 68#Antiwear Hydraulic Oil Usage for Steel Upsetting Max Pressure 31.5MPa Quality Good Performance Efficiency 300-500 Pieces Processing 12-40mm Power Range 7.5kw Cylinder Diameter 220mm Transport Package Wooden Case by Sea Specification 900-1000kg Trademark YG Origin China Production Capacity 350sets/Month

Product Description

Screw Thread Steel Bar Forging Upsetting Machine

Product Description

Steel upsetting machine using hydraulic cold heading of the principle of plastic deformation of steel ends, the diameter increases 4 ~ 6mm, and then processing thread. So that the actual cross-sectional area after processing thread larger than the original cross-sectional area of steel, greatly improving the tensile strength joints.

This upsetting of the threaded connector by the tensile test of all broken in the base metal for the higher requirements of engineering steel upsetting machine hydraulic technology, upsetting steel for straight thread connection technology, the use of sleeve connector . The device is suitable for the diameter of 16 ~ 40mmHRB335 ( two grade steel), HRB400 (three grade steel) hot-rolled ribbed steel production upsetting straight thread steel joint.

Technical Parameters

Double cylinder upsetting machine

Model

HDCJ-32S

HDCJ-40S

Upsetting Range

16-32mm

16-40mm

Upsetting Force

3000KN

3000KN

Working Stroke

150mm

150mm

Motor Power

7.5kw

7.5kw

Power

380V/50Hz

380V/50Hz

Oil Pump Pressure

31.5Mpa

31.5Mpa

Max. Flow

4.0L/min

4.0L/min

Upsetting Length

>3.5cm

>3.5cm

Piston stroke

105mm

105mm

Packing Size

1300×830×1350mm

1450×850×1650mm

Weight

900kg

1000kg

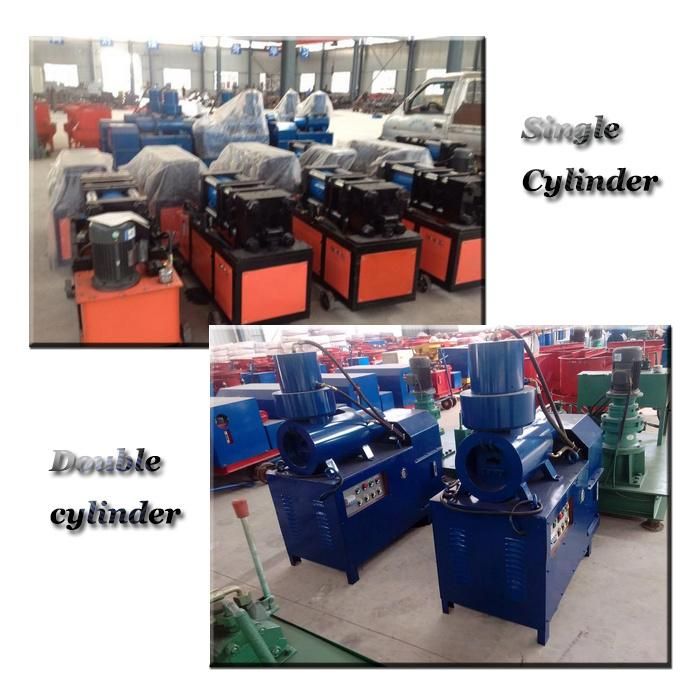

Production Show
Screw Thread Steel Bar Forging Upsetting Machine

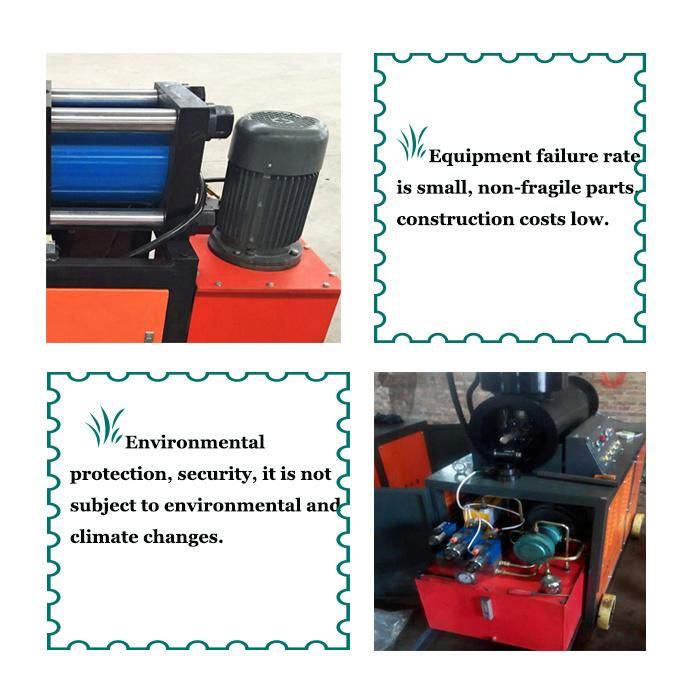

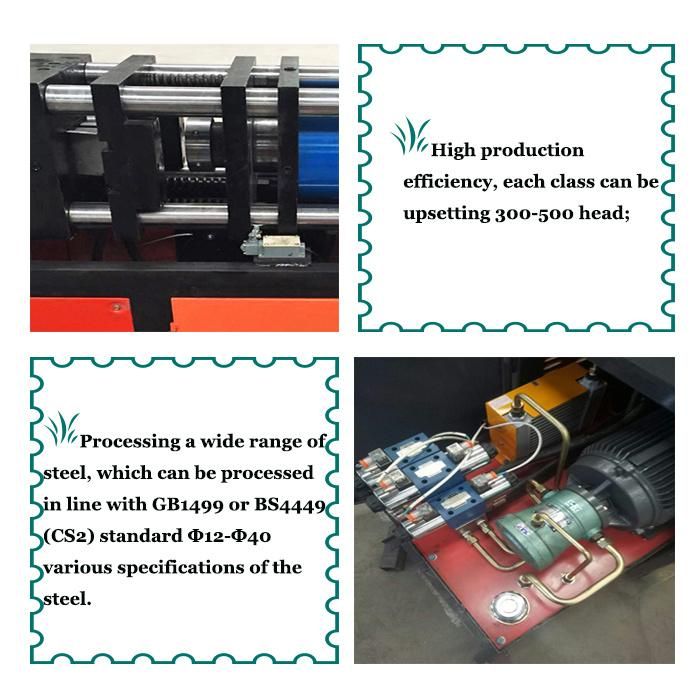

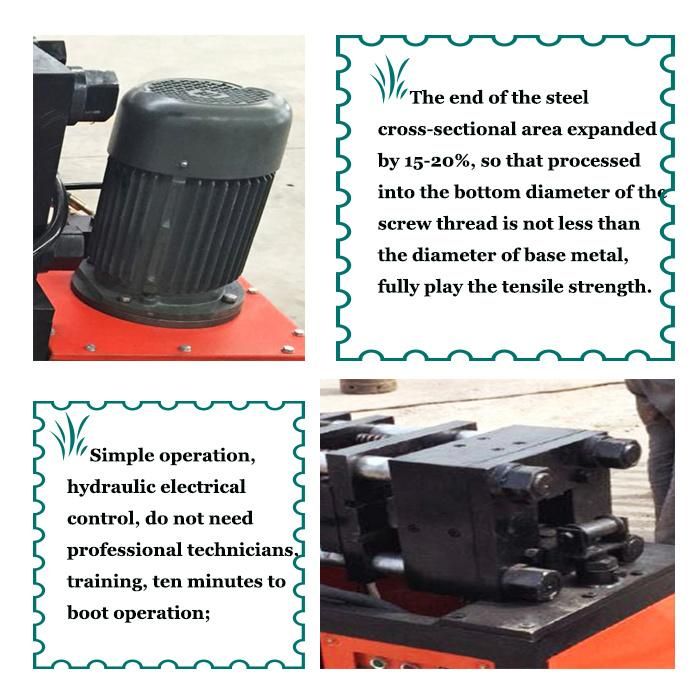

Product Features and Details

Screw Thread Steel Bar Forging Upsetting Machine

Screw Thread Steel Bar Forging Upsetting Machine
Screw Thread Steel Bar Forging Upsetting Machine

Product Application

Screw Thread Steel Bar Forging Upsetting Machine

Screw Thread Steel Bar Forging Upsetting Machine


Packaging & Shipping

1. Packaging:  1)Wrapped by proctective film;

                        2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.



Frequently Asked Questions

1. Q: Are you trading company or manufacturer?

    A: We are original equipment manufacturer.

2. Q: How long is your delivery time?

    A: It is according to the model and quantity.

        Generally it is 3-5 days if the machines are in stock.

        It will be 15-30 days if you want to customize the machines.

3. Q: Do you provide samples? Is it free or extra?

    A: Yes, we could offer you the sample machine.

        But it's not free. You need to pay for the sample and the cost of freight.

4. Q: What is your terms of payment?

    A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.

        Payment<=USD 5000, 100% in advance.

        Payment>=USD 5000, 30% T/T in advance, balance before shipment.
