Table Type CNC Plasma and Flame Cutting Machine CNCTG-1500X3000
Shaanxi HAVEN Equipment Co., Ltd.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting
Base Info
- Model NO.：CNCTG-1500x3000
- Worktable size：1500X3000mm
- Transport Package：Plastic Covering
- Specification：CNCTG-1500x3000
- Trademark：HAVEN
- Origin：China
- HS Code：8462
- Production Capacity：50 Units,Month
Description
Basic Info.
Model NO. CNCTG-1500x3000 Worktable size 1500X3000mm Transport Package Plastic Covering Specification CNCTG-1500x3000 Trademark HAVEN Origin China HS Code 8462 Production Capacity 50 Units/MonthProduct Description
Table Type CNC Plasma and Flame Cutting Machine
Main functions:

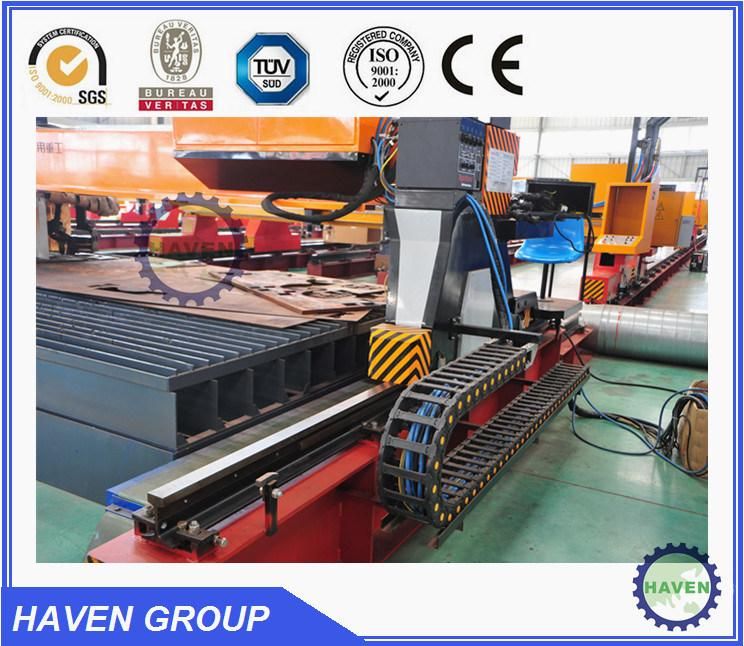

CNC precision cutting machine, which is newly developed high-speed and precision of small cutting machine, very find adaptation of plasma and laser-type forms of plasma cutting. By the control system, the cutting torch device, the torch body, two die planes and beams composed of vertical and horizontal movement are precision-grade ball linear guide for guide, good precision-oriented. Rack- type structure as a whole, for the welding box beam structure, the installation of the horizontal beam-drive devices and cutting torch lateral movement of ball- type linear guide;
Bilateral-driven machine has pair of identical vertical drive unit, installed in the rack on the precision rack shelves through the end of the servo motor driven precision output gear, so that client to conduct a longitudinal plane exercise. Machine running smooth, cutting and high accuracy.
The horizontal movements of main torch, which is through motion of pinion liner of precision rack on the drive unit. The geometry of client required which be controlled by computer.
This machine is particularly applicable to, the book plate of non-ferrous metals, stainless steel, aluminum and carbon steel sheet of high-speed cutting
Main specifications:
| Model | Worktable size | Cutting thickness | Max speed | Drive type |
| CNCTG-1250x2500 | 1250x2500mm | 1-16mm | 25m/min | bilateral drive |
| CNCTG-1500x3000 | 1500x3000mm | 1-16mm | 25m/min | Bilateral drive |
| CNCTG-2000x3000 | 2000x3000mm | 1-16mm | 25m/min | Bilateral drive |
| CNCTG-2000x4000 | 2000x4000mm | 1-16mm | 25m/min | Bilateral drive |
| CNCTG-3000x5000 | 3000x5000mm | 1-16mm | 25m/min | Bilateral drive |
| CNCTG-3000x6000 | 3000x6000mm | 1-16mm | 25m/min | Bilateral drive |
