• Model NO.：Customized
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Mode：Metal Roofing Tiles Roll Forming Machines
• Auto：Fully Automatic
• Feeding Material：Metal Coil
• Feeding Width：1250mm
• Feeding Thickness：0.25-0.7mm Thickness
• Production Speed：4-6m,Min
• Roll Forming Speed：8-12m,Min
• Control Systerm：PLC Computer Control with Inverter
• Size：6500mm*1500mm*1500mm
• Weight：3.2 Tons
• Transport Package：Waterproof Package
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. Customized Customized Customized Advantage Easy to Maintenance Condition New Mode Metal Roofing Tiles Roll Forming Machines Auto Fully Automatic Feeding Material Metal Coil Feeding Width 1250mm Feeding Thickness 0.25-0.7mm Thickness Production Speed 4-6m/Min Roll Forming Speed 8-12m/Min Control Systerm PLC Computer Control with Inverter Size 6500mm*1500mm*1500mm Weight 3.2 Tons Transport Package Waterproof Package Specification CE SGS ISO Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 30 Sets Per Month

Product Description

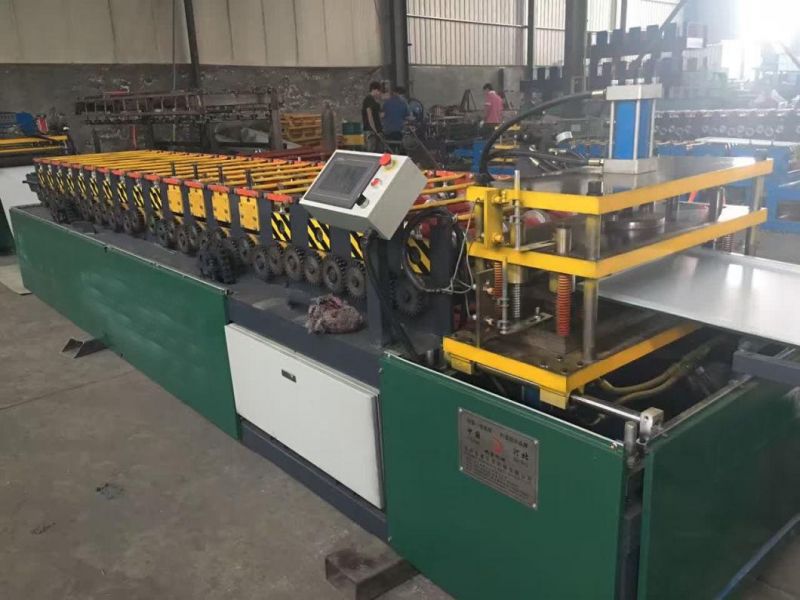

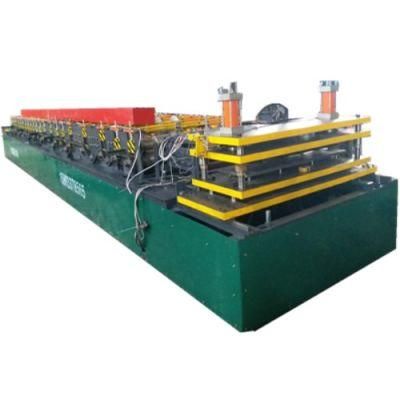

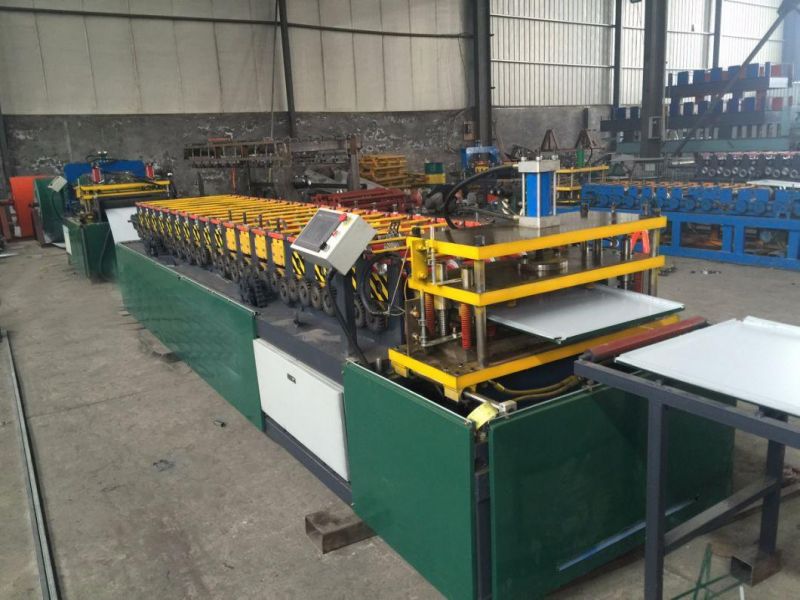

Adjustable model cladding panel advertising board roll forming machine

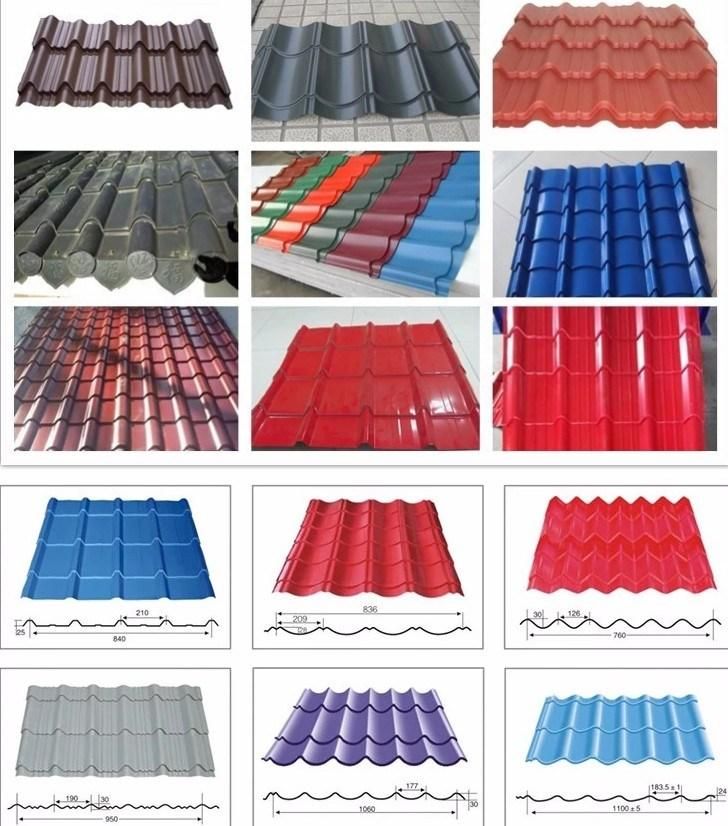

Widely used in door signboards, floor wall (curtain wall).With its rich and beautiful color, corrosion resistance, anti - typhoon, not easy to deformation.Installation is convenient, low cost advantages, high cost performance, become the leader in decorative materials, is recognized by more and more customers.



Technical parameters

Manual Un-coiler	◊ Max Capacity: 5000kgs ◊ Inner diameter of coil: 400-600mm ◊ Manual with brake
Leveling Device	◊ Ensure the material level and straight ◊ The width can be adjusted
Main Forming System	◊ Width & Height & Thickness of sheet: According to Drawings  ◊ Material: GI sheet coil or Colored sheet coil  ◊ Motor Power: 5.5 kw forming system  ◊ Roller material:Cr12 ◊ Surface of Roller: Heat treatment HRC58-60 ◊ Measuring accuracy: +/- 0.5 mm/M ◊ Safety Hood: Cage ◊Arch middle plate: 30mm thickness ◊Output: 8-10 Tons per shift (8 hrs.) ◊The machine base is assembled and welded by high quality steel

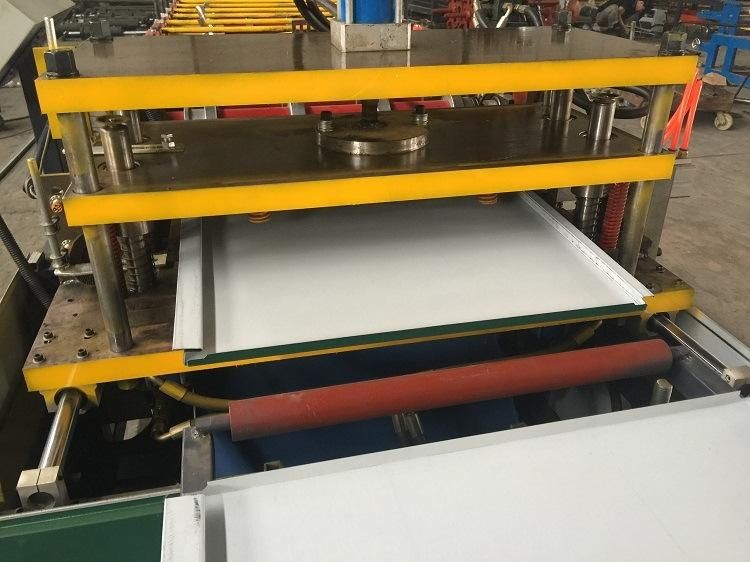

Hydraulic Cutting Device	◊ Cutting way: Tracking (Flying). ◊ Oil pump station 1set. ◊ Motor power of Oil pump station: 7.5kw with cooling system ◊ Forced air cooling device available ◊Material of blade: CR12 with heat treatment HRC60-62
Electrical System	◊ Control system: HMI & PLC control panel.  ◊ Power: 440V 50Hz (as per local requirement)
Run-out Table	◊ Frame: 8# steel groove welded ◊ Roller type. ◊ Quantity: 1 pc

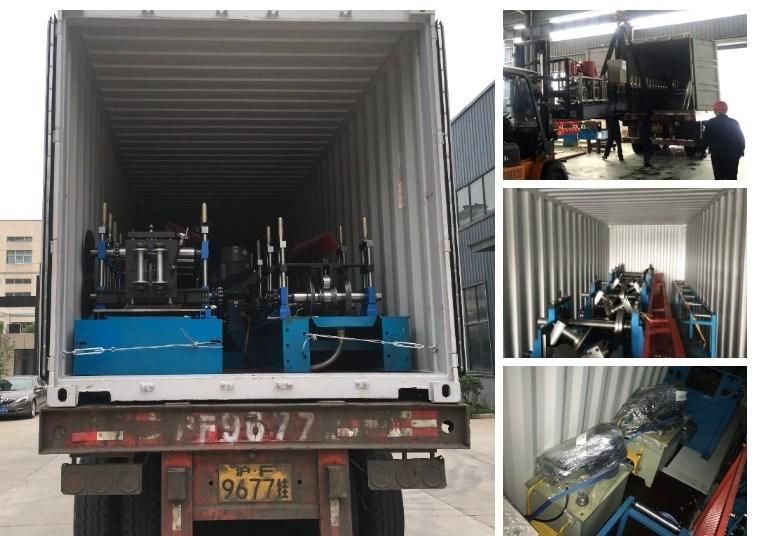

Packaging & Shipping

1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

2.Port:TIANJIN XINGANG PortLead .

3.Time: Shipped in 35 days after payment.

Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.

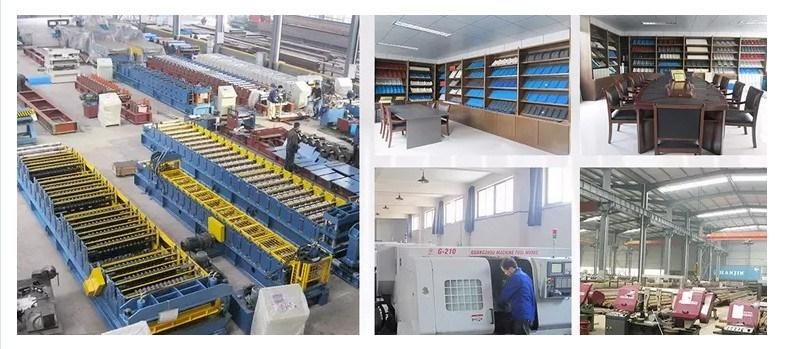

Company Information

We are well recognized manufacturer and supplier of Cold Roll Forming Machine which are supplied to various industries across the nation. Our products are technically advance and designed with the use of latest standard features and functions. These products are highly durable and easy to use. We guarantee superior quality which are duly tested and provided in stipulated time frame.

Our Services

1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
