Fully Automatic Diamond Cyclone Mesh Chain Link Fence Machine
Hebei Jiake Welding Equipment Co., Ltd.- After-sales Service：Life Time
- Warranty：1 Year
- Name：Chain Link Fence Machine
- Type：Fully Automatic
- Wire Feeding：Single Wire
- Production：70-80 Square Meter, Hour
Base Info
- Model NO.：DP20-100
- Wire Diameter：1.4-4.0mm
- Mesh Hole Size：20-100mm
- Mesh Width：Max. 4.0m
- Control System：PLC
- Raw Material：Gi Wire, PVC Wire
- Mesh Length：Min.30m
- Transport Package：Plastic Package
- Specification：2500kgs
- Trademark：JIAKE
- Origin：Anping. Hebei, China
- HS Code：8463300000
- Production Capacity：30sets,Month
Description
Note: 1. One hexagonal mesh machine can only make one hole size.
2. Special hole size can be customized as your request.
High speed barbed wire machine
Barbed Wire Making Machine produces barbed wire. Barbed wire is used for protection use, in playground fence, livestock feeding or national boarder, in national defense, agriculture, animal husbandry, expressway, etc.
20 meters/minute
17 meters/minute
16.5 meters/minute

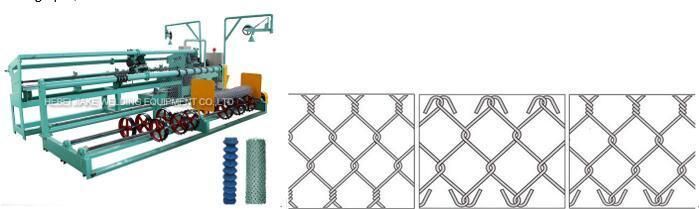

Chain link fence making machine
Full auto chain link fence machine, also called diamond mesh machine, rhombus wire machine, Chain link fence making machine. Chain link fence is extensively used for fence in the playground, residence, power station, airport, mining spot, etc.
| Model | DP25-80, double wire feeding. |
| Capacity speed | 120 to 180 square meters/hour. |
| Wire diameter | 1.8-4mm |
| Mesh opening | 25-85mm |
| Weaving width | Max. 4m |
| Weaving length | 30m, adjustable freely as your request. |
| Raw material | Low carbon wire like Galvanized wire, PVC Coated wire. Tensile strength 350-600MPA. |
| Electric system | Japan Mitsubishi PLC origin + Delta Servo motor + French Sch.. components. |
| Weight | 3900kg |
| Dimension | Main machine: 6700*1430*1800mm |

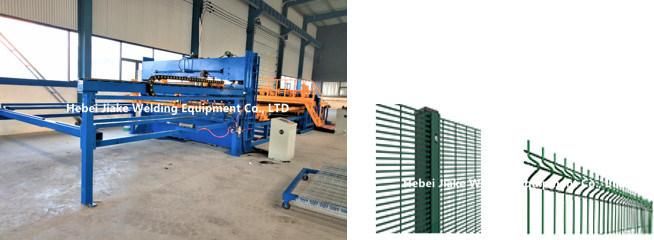

Fence mesh welding machine
Fence mesh welding machine is also called fence mesh welding line, security fence machine, anti-climb fence welding machine, and fence panel machine. It is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.
| Model | DP-FP | Wire diameter | 2.5-6mm |
| Line wire pitch | 50-300mm | Welding torch | 48pcs |
| Cross wire pitch | Min.12.7 | Welding speed | Max.80 times/min |
| Welding width | Max.3m | Welding transformer | 150kva*6/10pcs |
| Mesh length | Max.4m | Mesh type | panel mesh |

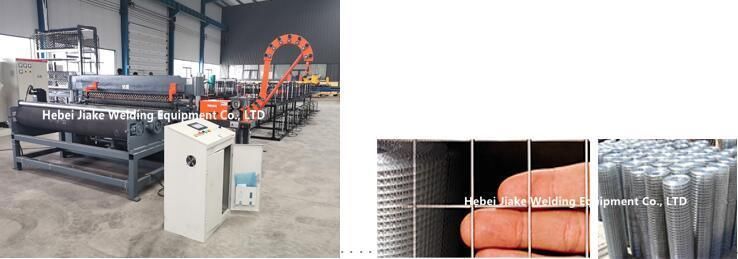

Welded wire mesh machine in roll
Welded wire mesh machine, also called welded roll mesh machine, electric welded mesh machine, electric mesh welding line.
It's used to make construction mesh, wall mesh, animal cage, mining etc.
| Model | DP-DNW | Wire diameter | 0.65-2.5mm |
| Line wire pitch | 6.25-150mm | Cross wire pitch | 6.25-150mm |
| Mesh width | 0.9-2.5mm | Main motor | 2.2kw/4kw/5.5kw/7.5kw |
| Welding transformer | 60-80kva*3/4/5/7/8pcs | Welding speed | Max.60-180 times/min |
| Weight | 2T/2.5T/3T/3.5T/4T | Mesh type | roll mesh |
Roll BRC mesh welding machine
Roll mesh welding line,also called automatic welded mesh machine,welded wire mesh roll machine,used to make road mesh,reinforcing mesh,construction mesh etc.
| Model | DP-FP-2500BN | Wire diameter | 2.5-6mm |
| Line wire pitch | 50-300mm | Cross wire pitch | Min.50mm |
| Welding width | Max.2500mm | Roll length | Max.100mm |
| Welding speed | Max.75 times/min | Welding torch | 48pcs |
| Welding transformer | 150kva*6pcs | Mesh type | roll mesh |
Pneumatic reinforcing mesh welding machine
Reinforcing mesh welding line,also called BRC mesh welding machine,construction mesh welding machine.with more than 20 years experience on desgin and manufacture,our BRC mesh welding machine is featured by high capacity,easy operation and precise control.
| Model | DP-GW-2500 | Wire diameter | 3-12mm |
| Line wire pitch | 50-300mm | Cross wire pitch | Min.12.7/25mm |
| Mesh length | Max.12m | Mesh width | Max.3000mm |
| Welding torch | Max.24/30/48/61pcs | Welding transformer | 150kva*6/8/12/15pcs |
| Welding speed | Max.80 times/min | Mesh type | panel mesh |
Chicken cage mesh welding machine
Chicken cage mesh welding machine,also called poultry cage mesh welding machine,breed aquatics welding machine.
It's used to make breed aquatic mesh,poultry mesh,coop,pigeon mesh,rabbit mesh etc.
| Model | DP-AW-1600E | Wire diameter | 2.2-3.5mm |
| Mesh width | Max.1600mm | Line wire pitch | Mostly 50-300mm |
| Welding speed | Max.1200 times/min | Cross wire pitch | Min.20mm or custom |
| Welding torch | 25/30/32pcs | Welding transformer | 125kva*3/4pcs |
| Weight | 2.5T/3T/3.2T | Mesh panel | panel mesh and roll mesh |
